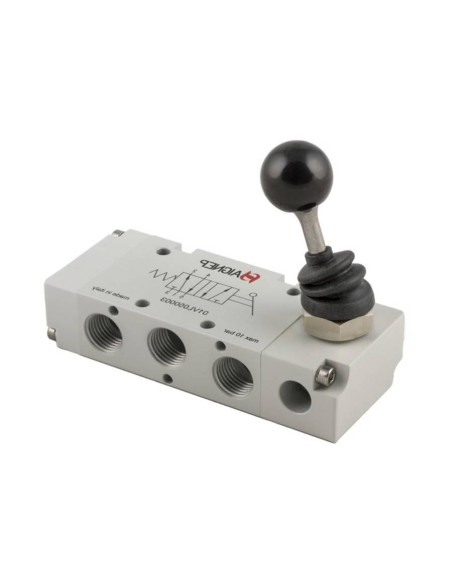

Manual lever valve 1/4 5/3 positions stable closed centers lever 90 degrees - Aignep

€54.79 Tax included

45.28 tax excl.

01VL27CC03

Valve 1/4 manually operated by 90º angle lever of 5 way and stable with 3 fixed positions, closed centers, the valve is actuated when the lever is actuated and returns to the rest position when the lever is no longer actuated. For control of double acting cylinders. Made of anodized and painted aluminum.

Series: 01V
Part number: 01VL27CC03

CCESQUEMABIESTABLE Logotipo Aignepiconos-válculas aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Valve 1/4 manually operated by lever of 5 way and stable with 3 fixed positions, closed centers, the valve is actuated when the lever is actuated and returns to the rest position when the lever stops being actuated, for control of double acting cylinders, the valve has 3 positions, in one of them the cylinder advances, in the central one, the cylinder stops but maintains pressure (force) not letting the air present in its outlets escape, and in the other position the cylinder is collected.

Actuated by angular lever at 90º.

Manufacturer: Aignep

  • Part number: 01VL27CC03
  • Working pressure: Vacuum ÷ 10
  • Operating temperature °C: -10 ÷ +60
  • Panel mounting: M16x1
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 1200

CCDIMENSIONES4

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab
