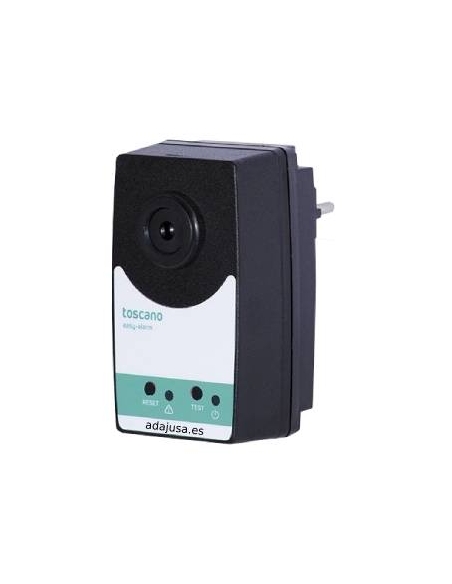

EASY-ALARM Plug-in Level Alarm Control - Toscano

Acoustic and visual alarm module with power reserve (rechargeable battery) for the connection of a control device with voltage-free contact (level buoy, pressure switch, door switch, etc.).

Characteristics:

• Manufacturer: Toscano
• Reference: EASY-ALARM
• IP40 plastic case
• Power supply 230Vac
• Rechargeable battery, with autonomy of one month (6 hours in alarm mode activated)
• Voltage and alarm presence pilots
• 90dB buzzer
• Test button
• Reset button (stops alarm)
• terminal block for connecting a voltage-free external contact

Technical specifications:

• Working voltage: 230Vac - 50/60Hz
• Maximum consumption: 1.8VA
• Battery: Type 9V rechargeable
• External contact voltage: 9...12 V DC
• Buzzer: 12 V DC, 90 dB at 1 meter
• Temperature margins: -10ºC to +55ºC
• Degree of protection: IP40
• Dimensions: 62 x 123 x 75mm
• Weight: 245 gr

Operation:



Connect the 2 wires of the level buoy or any control device with tension-free contact to the connection terminal block of the equipment. Plug the equipment into an outlet at 230 V AC. The voltage presence light comes on. The equipment is ready to go.

Note: it is possible to replace the 9V type rechargeable battery integrated within the equipment.





To expand the information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, install in compliance with the regulations in force at the place of installation.
