Copper splice sleeve 95 mm2

Name: Copper splice sleeve 95 mm2
Brand: XBS
SKU: RTH-120
Price: 3.2428 EUR
Availability: InStock

€3.24 Tax included

€2.68 tax excl.

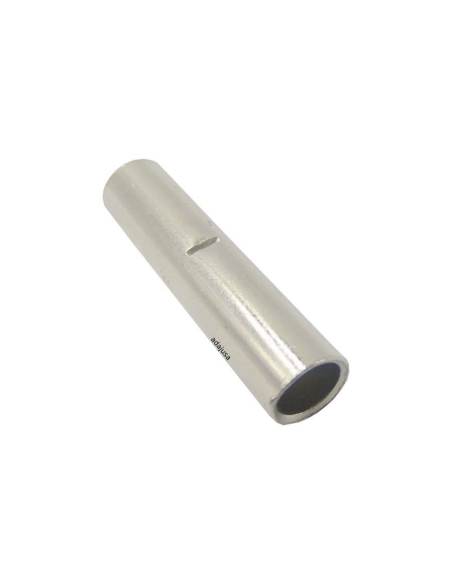

Tubular tinned copper splicing sleeve for 95 mm2 cross section cable and 100 mm length. It has a central stop for better positioning of the conductor and easy insertion of the same.

Reference: RTH-120

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Connecting sleeve in tinned electrolytic copper for cables with a maximum cross section of 95 mm2, sleeve length 100 mm.

Straight tube for splicing or joining connectors with central stop that facilitates the installation of the cable and its positioning, internally dividing the tube into two equal parts.

Technical characteristics:

Manufacturer/Supplier: XBS/Mixvil
Reference: RTH-120
Maximum cable cross-section: 95 mm2
Maximum rigid cable cross-section: 120 mm2
Length: 100 mm
Material: Tin-plated electrolytic copper
Dimensions: D: 20 mm, d1 = 15 mm, L1 = 49 mm, L = 100 mm

Material for professional use, install in compliance with the regulations in force at the place of installation
