Dahlander 125A two-speed switch (30kW - 40HP)

Name: Dahlander 125A two-speed switch (30kW - 40HP)
Brand: TRACON
SKU: TKM-12/D
Price: 105.3184 EUR
Availability: PreOrder

€105.32 Tax included

€87.04 tax excl.

Switch for two-speed electric motors (Dahlander) 125A, 60º rotary knob with three positions 0-1-2. Allows starting, stopping and speed selection on two-speed motors, Dahlander type. Front plate size 88x88mm in grey colour and handle in black.

Engine power 40HP (30Kw) with 400Vac voltage.

Reference: TKM-12/D

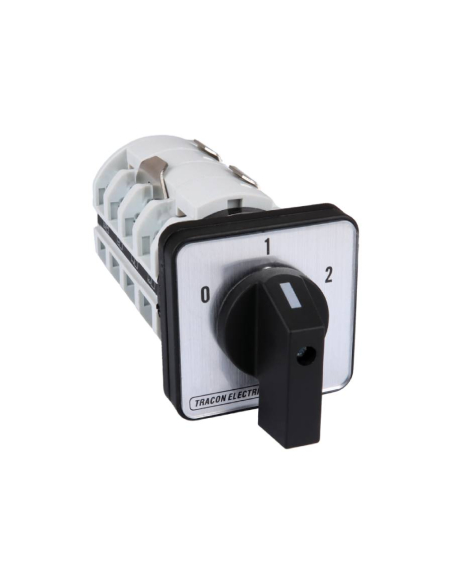

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Changeover switch for two-speed motors, Dahlander type, 125A. Allows starting, stopping and selecting the rotation speed on 2-speed electric motors of 40 HP (30 kW). 60º rotating control with three positions 0-YD, 88x88mm plate in grey and black handle.

This series of rotary switches has been manufactured in accordance with EN 60947-1, EN 60947-3, EN 62321 standards, which enables them to meet all safety requirements. Flush mounting with IP-42 protection degree.

Technical characteristics:

Manufacturer/Supplier: TRACON
Reference: TKM-12/D
Number of poles: 3
Supply voltage: 380-420V
Rated insulation voltage: 690V
Nominal intensity: 125A
Number of maneuvers / hours: 30
Mechanical durability: 150,000 maneuvers
Electrical durability: 100,000 operations
Ambient temperature: -5 to +55ºC
Protection class: IP42

Table of intensities and powers of use:

AC-21A 400V usage category: 100A
AC-22A 400V usage category: 100A
AC-23A 400V usage category: 90A
AC-2 400V usage category: 90A
AC3 400V usage category: 75A
AC-4 400V usage category: 30A
Assigned power category AC-23A 400V: 45kW
Assigned power category AC-2A 400V: 45kW
Assigned power category AC-3A 400V: 30kW
Assigned power category AC-4A 400V: 12kW

L=138mm; A = 84mm; a = 88mm ; b = 88mm; d=68mm

Professional use material, install in compliance with the regulations in force at the place of installation.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Annex instructions for use of el

Document attached to the instructions for use of electrical equipment

Download (414.22KB)

Annex mode d'emploi elec.

Document attached to the mode of employment of electrical materials

Download (410.39KB)

Annex instructions for use elec.

Document annexed to the instructions for use electrical equipment

Download (410.3KB)

Allegato istruzioni l'uso elec

Document allegato alle instruzioni per l'use dell'apparecchiatura elettrica

Download (406.25KB)

Anhang Gebrauchsanweisung elec

Document annexed to the instructions for use of electrical equipment

Download (412.12KB)
