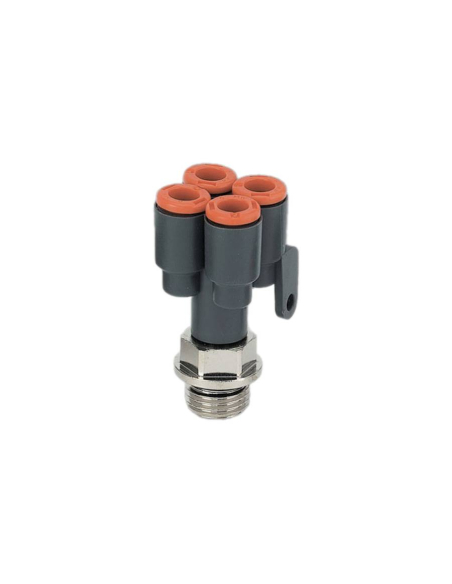

Double Y fitting 1/4 inlet and 6mm diameter outlet technopolymer - Metal Work

Automatic intermediate double "Y" fitting with 1/4" male cylindrical thread and 6mm tube outlets, made of technopolymer and brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; the clamping spring holds the tube without etching or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the fitting from the tube. In the fittings, the fitting ring has slots for the screwdriver to facilitate disconnection in applications inaccessible to the fingers.

Technical characteristics:

• Manufacturer: Metal Work
• Reference: 2L43009
• Outer diameter of tube: 6mm
• Thread: 1/4
• Fluid: Vacuum - Compressed air.
• Operating pressure: -0.99 bar to 12 bar
• Material: technopolymer
• Working temperature: -20ºC to +60ºC
• Thread regulations:
  • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
  • Cylindrical gas according to ISO 228 Class A
  • Metric according to ISO R/262

Professional use material, install in compliance with the regulations in force at the installation site.
