Y male fitting 1/4 tube diameter 10mm technopolymer - Metal Work

Name: Y male fitting 1/4 tube diameter 10mm technopolymer - Metal Work
Brand: Metal Work
SKU: 2L23413
Price: 7.6956 EUR
Availability: PreOrder

€7.70 Tax included

€6.36 tax excl.

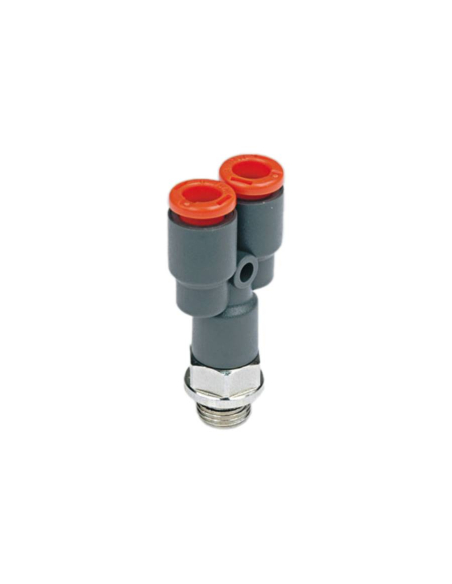

Automatic male Y fitting with 1/4 thread and 10mm diameter tube with seal , made of technopolymer and brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .

Reference: 2L23413

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Automatic male Y-fitting with 1/4 thread and 10mm diameter tube with seal , made of technopolymer and brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; the clamping spring holds the tube without etching or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the fitting from the tube. In the fittings, the fitting ring has slots for the screwdriver to facilitate disconnection in applications inaccessible to the fingers.

MATERIALS

Technical characteristics:

Manufacturer: Metal Work
Reference: 2L23413
Tube outer diameter: 10mm
Thread: 1/4
Fluid: Vacuum - Compressed air.
Operating pressure: -0.99 bar to 12 bar
Material: technopolymer
Working temperature: -20ºC to +60ºC
Thread regulations:
- Conical gas conforming to ISO 7.1, BS 21, DIN 2999
- Cylindrical gas according to ISO 228 Class A
- Metric according to ISO R/262

2L23 dimensions

Professional use material, install in compliance with the regulations in force at the installation site.

Racores tecnopolimero MW

Download (1.3MB)
