Intermediate T fitting for 8mm instant tube - Metal Work

Intermediate T fitting for 8mm instant tube - Metal Work

€3.79 Tax included

€3.13 tax excl.

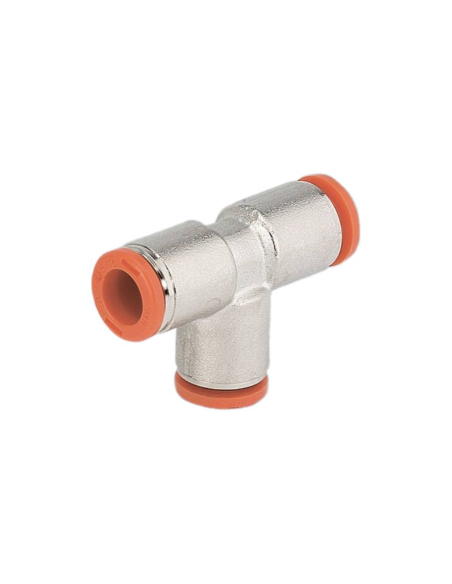

Automatic "T" fitting for 8mm diameter tube, made of brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .

Reference: 2L05004
Logo-Metal-Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Automatic "T" fitting for 8mm diameter tube, made of brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; the clamping spring holds the tube without etching or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the fitting from the tube. In the fittings, the fitting ring has slots for the screwdriver to facilitate disconnection in applications inaccessible to the fingers.



MATERIALS

Technical characteristics:

  • Manufacturer: Metal Work
  • Reference: 2L05004
  • Outer diameter of tube: 8mm
  • Fluid: Vacuum - Compressed air.
  • Operating pressure: -0.99 bar to 16 bar
  • Material: Brass
  • Working temperature: -20ºC to +80ºC
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas according to ISO 228 Class A
    • Metric according to ISO R/262


2005_2L05dimensions


Professional use material, install in compliance with the regulations in force at the installation site.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Intermediate tee fitting...
Intermediate "T" fittings

Intermediate tee fitting 10mm pipe inlet 10mm and 12mm pipe outlets instantaneous 55000...

Aignep
55230121012
€5.09 (€4.21 tax excl.)
Automatic "T" fitting for pipe diameters 10mm inlet and 12mm outlet. Quick connection, made of technopolymer. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Reference: 55230 12 10 12 Representative image for illustrative purposes, the item...
T-piece swivel fitting with...
Intermediate "T" fittings

T-piece swivel fitting with extended central thread M5 tube 6mm technopolymer - Metal Work

Metal Work
2L37006
€4.96 (€4.10 tax excl.)
Swivel "T" fitting for 6mm diameter tube and central socket with M5 extended male thread, made of technopolymer and brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention . Reference: 2L37006 Representative image for illustrative purposes, the item supplied...
Automatic T fitting with M5...
Intermediate "T" fittings

Automatic T fitting with M5 conical central thread tube 4 Series 50000 - Aignep

Aignep
502004M5
€3.18 (€2.63 tax excl.)
Automatic "T" fitting for 4mm outer Ø tube. Quick connection, and central socket with M5 conical thread, made of chromed brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .Series: 50000Reference: 50200 4 M5 Representative image for illustrative...
8mm tube swivel tee with...
Intermediate "T" fittings

8mm tube swivel tee with 10mm short nipple 55000 Series - Aignep

Aignep
55240810
€2.11 (€1.74 tax excl.)
Adjustable "T" fitting for 8mm outside diameter pipes with short smooth nipple diameter 10mm. Quick connection, made of technopolymer. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Reference: 55240 8 10 Representative image for illustrative...
T-piece conical central...
Intermediate "T" fittings

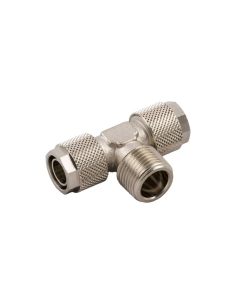

T-piece conical central thread 1/4 tube 10/8 Series 1000 - Aignep
