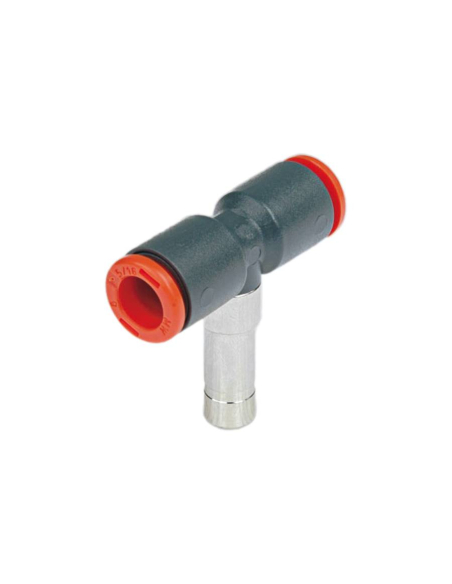

T-piece tube fitting 10mm with 10mm central spike technopolymer - Metal Work

T-piece tube fitting 10mm with 10mm central spike technopolymer - Metal Work

€5.37 Tax included

€4.44 tax excl.

"T" fitting for tubes with an external diameter of 10 mm with a central spike with a diameter of 10 mm, made of technopolymer and brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .

Reference: 2L348004

Logo-Metal-Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


"T" fitting for tubes with an external diameter of 10 mm with a central spike with a diameter of 10 mm , made of technopolymer and brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; the clamping spring holds the tube without etching or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the fitting from the tube. In the fittings, the fitting ring has slots for the screwdriver to facilitate disconnection in applications inaccessible to the fingers.



MATERIALS

Technical characteristics:

  • Manufacturer: Metal Work
  • Reference: 2L48004
  • Outer diameter of tube: 10mm
  • spike diameter: 10mm
  • Fluid: Vacuum - Compressed air
  • Operating pressure: -0.99 bar to 12 bar
  • Material: technopolymer
  • Working temperature: -20ºC to +60ºC
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas according to ISO 228 Class A
    • Metric according to ISO R/262



2L48 dimensions

Professional use material, install in compliance with the regulations in force at the installation site.
