Swivel T-fitting with side thread 1/8 tube 4mm...
Swivel T-fitting with side thread 1/8 tube 4mm - Metal Work

Swivel T-fitting with side thread 1/8 tube 4mm - Metal Work

€4.09 Tax included

€3.38 tax excl.

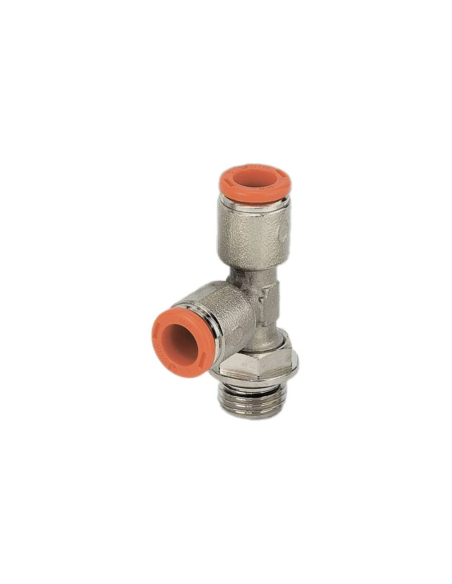

1/8" male threaded swivel "T" fitting for 4mm diameter tube, made of brass . Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .

Reference: 2L38002
Logo-Metal-Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/8 " male threaded swivel "T" fitting for 4mm diameter tube, made of brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; the retaining spring holds the tube without scratching or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the fitting from the tube. In the fittings, the fitting ring has slots for the screwdriver to facilitate disconnection in applications inaccessible to the fingers.



MATERIALS

Technical characteristics:

  • Manufacturer: Metal Work
  • Reference: 2L38002
  • Tube outer diameter: 4mm
  • Thread: 1/8
  • Fluid: Vacuum - Compressed air
  • Operating pressure: -0.99 bar to 16 bar
  • Material: Brass
  • Working temperature: -20ºC to +80ºC
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas according to ISO 228 Class A
    • Metric according to ISO R/262


2L38 dimensions


Professional use material, install in compliance with the regulations in force at the installation site.
