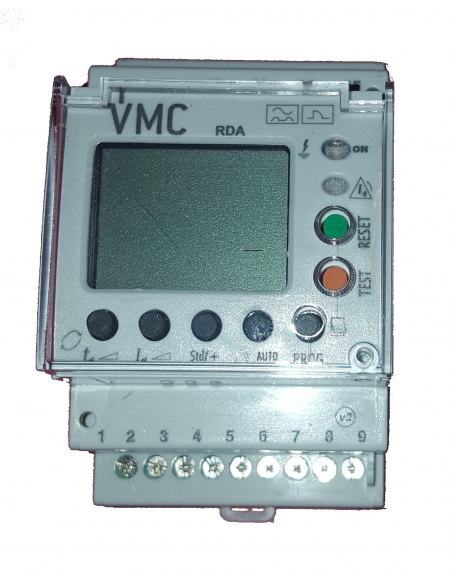

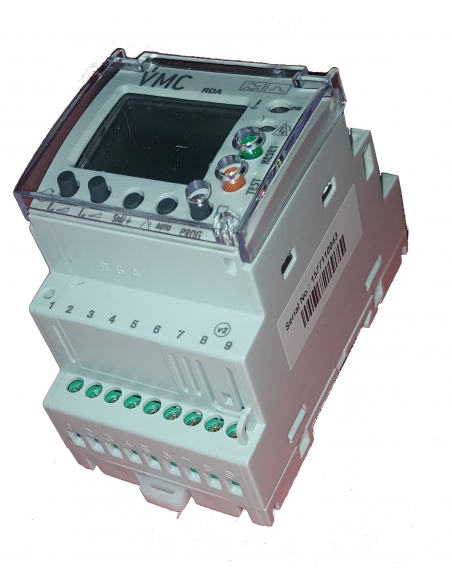

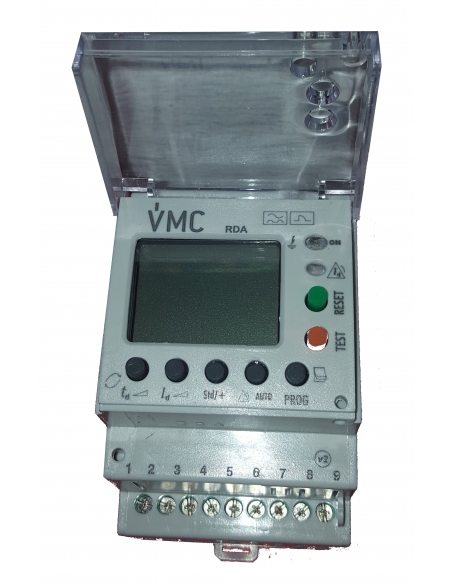

Digital differential electronic relay for industrial protection. Adjustable sensitivity between 0.03A and 3A and firing time between 0.03s and 10s, to be connected to an external toroidal transformer of the TDC series. It has a switched contact for the trigger element (contactor or MCB circuit breaker).

Superimmunized class "A".

Manufacturer's Reference: RDA03030

No queries yet, leave the first!

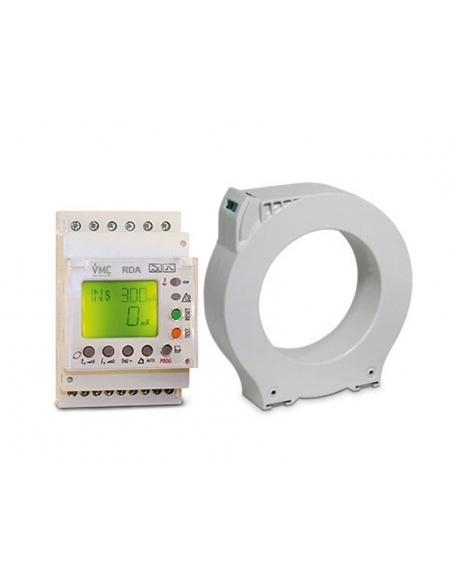

Differential relay for industrial protection,with separate sensing transformer. Intended to ensure the protection of people and electrical installations against indirect contacts, both in single-phase and three-phase systems. The differential relay must be associated with a toroidal sensing transformer of the TDC series.

Adjustable sensitivity between 0.03 and 0.3A and shooting time between 0.03 and 10s. DIN rail mounting and 230Vac supply voltage. 2 independent switched NA/NC output contacts, main channel and pre-alarm channel. The main channel is used to trigger the external trigger element, contactor or MCB circuit breaker plus firing coil.

For the adjustment to sensitivity 0.03A the delay time is canceled (according to IEC60947-2 annex M).

Immunized Class A differential protection, with high frequency current filtering, for the detection of alternating and alternating leakage current with continuous component, which makes it especially recommended for electrical installations with the presence of currents distorted by the presence of harmonics.

Note: The measurement element, toroidal transformer is not included in the supply.

Technical details:

  • Manufacturer/Supplier: LS
  • Manufacturer's Reference: RDA03030
  • Type: Class A, superimmunized, high frequency current filtering
  • Sensitivity (I'n): adjustable between 0.03A and 3A
  • Delay: adjustable between 0.03s and 10 seconds
  • Output contact: 2 switched contacts NA/NC 6A. 250Vac
  • Output channels: 2. Main channel and pre-alarm channel
  • Electrical performance: 100x103 operations, 6A. 85oC with resistive load 250Vac
  • Relay power supply: 230Vac (± 20%) 50/60Hz 4VA
  • Type of reconnection: manual via Reset button or power outage
  • Inputs: 1. Potential-free to fire/rearm outside
  • Associated cutting element: contactor or MCB circuit breaker + firing coil
  • LED indication:
    • Supply voltage
    • Shooting by escape
    • TDC disconnection
    • Alarm

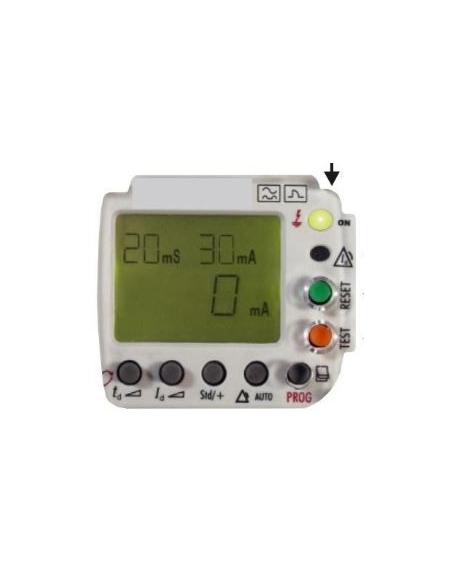

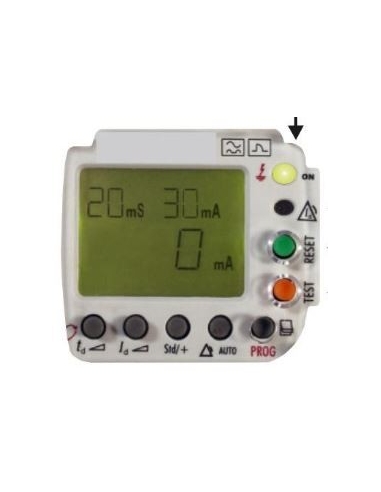

  • Display by display:
    • Trigger current (red display when shooting)
    • Parameter programming
    • Instant leakage current
    • External transformer disconnection
  • Remote signaling: pre-alarm
  • Operating temperature: -10o to 50oC
  • Fixing: via DIN rail
  • Dimensions: 3 modules, 70mm
  • Degree of protection: IP20 / IP41 transframe
  • Standards: IEC 60947-2, IEC 60755, IEC 61008, IEC 62020

Dimensions:

Dimensiones relé diferencial RDA

Mounting:

Conexionado Rele diferencial RDA bobina emision rearme automatico

Esquema conexionado rele diferencial rearme manual

Esquema conexionado rele diferencial RDA
