Hose 3x4mm halogen-free

Special material, PayPal payment not accepted
€4.32 Tax included

€3.57 tax excl.

3x4mm2 electric hose section, halogen-free, green, for use in public concurrency premises. Designed under CPR regulations (EN 50575)

Series: TopFree ZH RZ1-K (AS) 3G4

Color: Green.

Section: 4mm2.

Price per meter
Material cut to size, no return or cancellation of the order is allowed

logotipo_top_cable

No queries yet, leave the first!

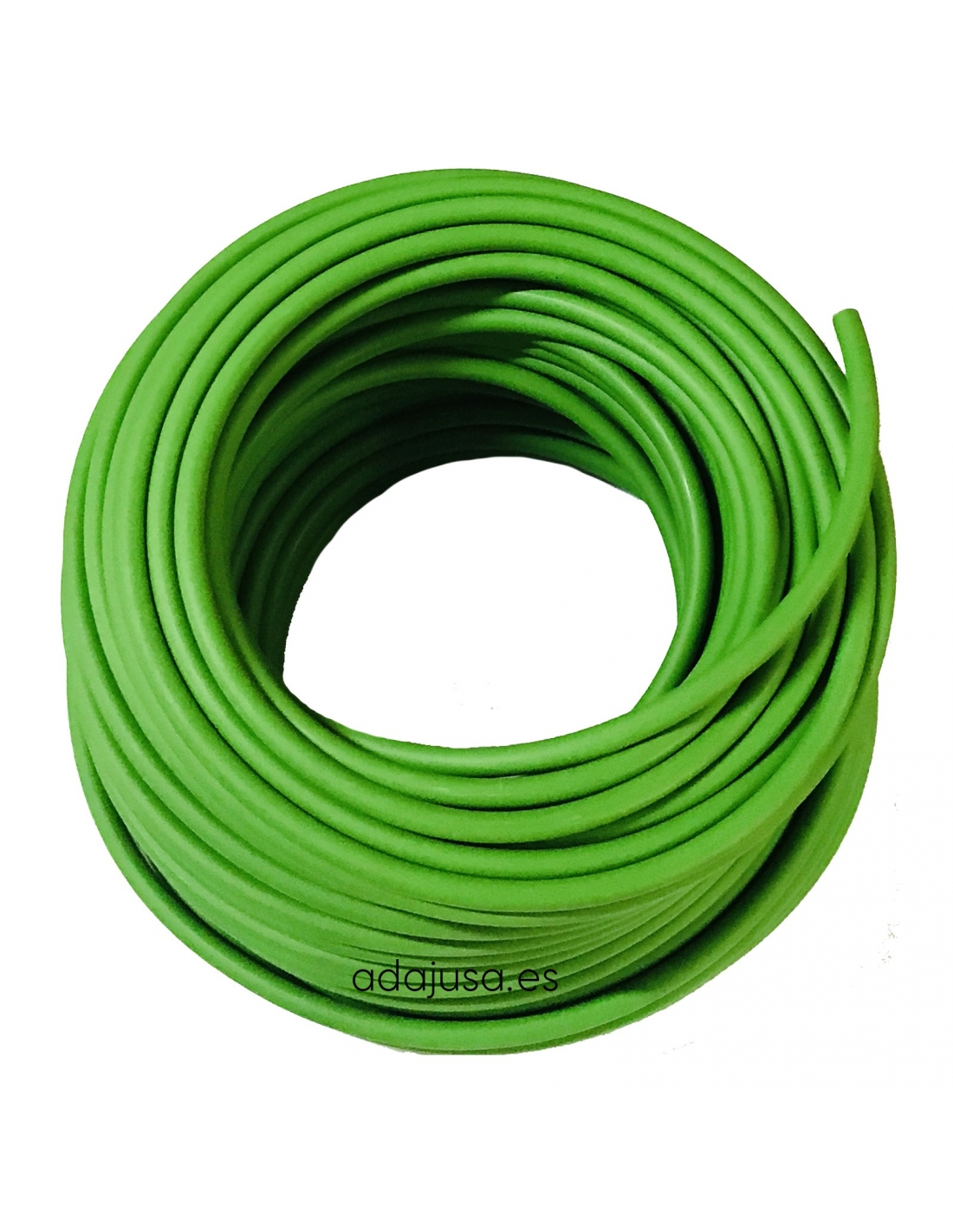

Flexible hose with 3 conductors 4mm² section each, halogen-free polyolefin insulator in green color.

The Topfree ZH RZ1-K (AS) multi-conductor cable is a halogen-free cable with low smoke emission, non-fire propagator. Its use is mandatory in public places such as: hospitals, schools, museums, airports, bus stations and shops in general.

Drivers:

Each one of the conductors is made of electrolytic copper, flexible class 5, according to UNE 60228 and IEC60228, with individual insulation in cross-linked polyethylene (XLPE), colors:

  • Blue.
  • Brown.
  • Gray.
  • Yellow green.

Price and supply per metre
Material cut to size, no return or cancellation of the order is allowed

Technical characteristics:

  • Manufacturer: Top Cable .
  • Series: TopFree ZH RZ1-K (AS) .
  • Conductor: class 5 electrolytic copper (flexible) according to UNE-UN 60228.
  • Insulation: Green halogen-free flame retardant polyolefin.
  • Nominal section per conductor: 2.5mm².
  • Nominal voltage: 0.6 / 1kV.
  • Insulation of each individual conductor: Cross-linked polyethylene (XLPE).
  • Thermal characteristics:
    • Temp. conductor maximum: 90ºC.
    • Temp. maximum in short circuit: 250ºC (maximum 5 s).
    • Temp. minimum service: -40ºC (static with protection).
  • Characteristics against fire:
    • Flame retardant according to UNE-EN 60332-1 and IEC 60332-1.
    • No fire programming according to UNE-EN 60332-3, IEC 60332-3 and EN 50399.
    • Halogen free according to UNE-EN 60754 and IEC 61034.
    • Fire relationship CPR: E according to EN 50575.
  • Outside diameter: 11mm.
  • Impact resistance: AG2 Medium.
  • Bend radius: 5 x outer diameter.
  • Resistant to chemical attack: Good
  • Resistance to ultraviolet rays: UNE 211605.
  • Presence of water: AD7 immersion.
  • Installation conditions:
    • In the air.
    • Buried.
    • Tubed.
  • Design: According to CPR standard (EN 50575).
    Reference standard: UNE-EN 50525-2-31 / IEC 60227-3
    ITC and certifications: ITC: 9/20/26/27/29/30/31/34 CE SEC HAR AENOR RoHS Certificates.
  • Applications:
    • Industrial use.
    • Premises of public concurrence.
  • Weight: 0.206 kg.
