FC output flange for size 63 reducer

Name: FC output flange for size 63 reducer
Brand: Generico-MOT
SKU: FC-63
Price: 18.8034 EUR
Availability: InStock

€18.80 Tax included

€15.54 tax excl.

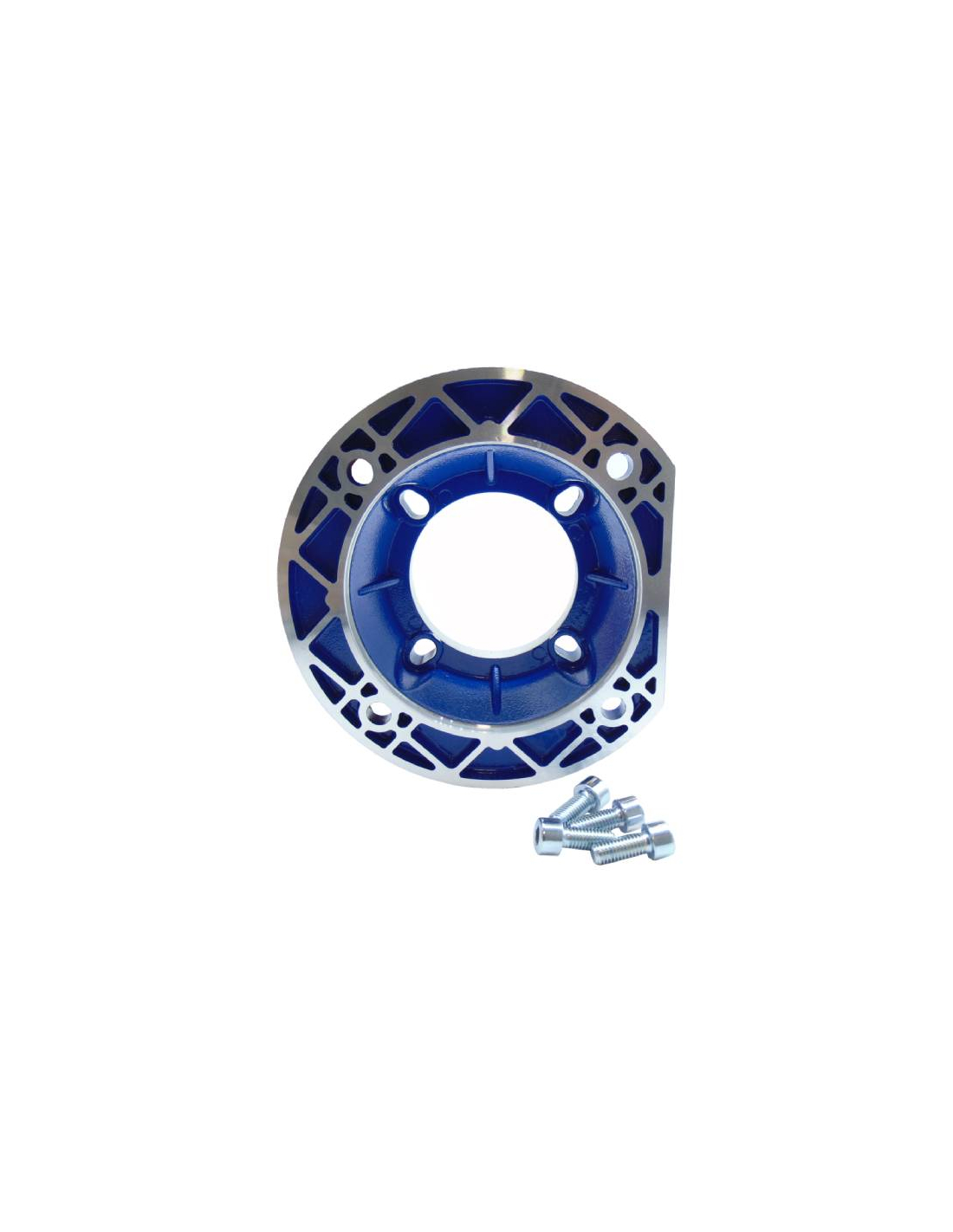

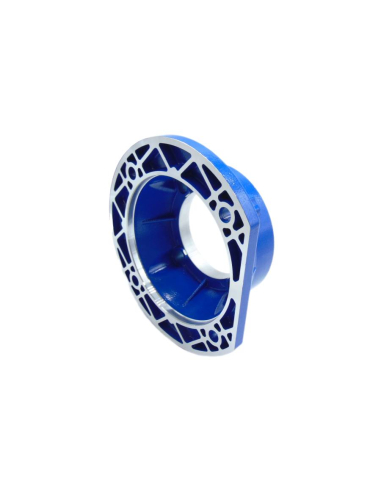

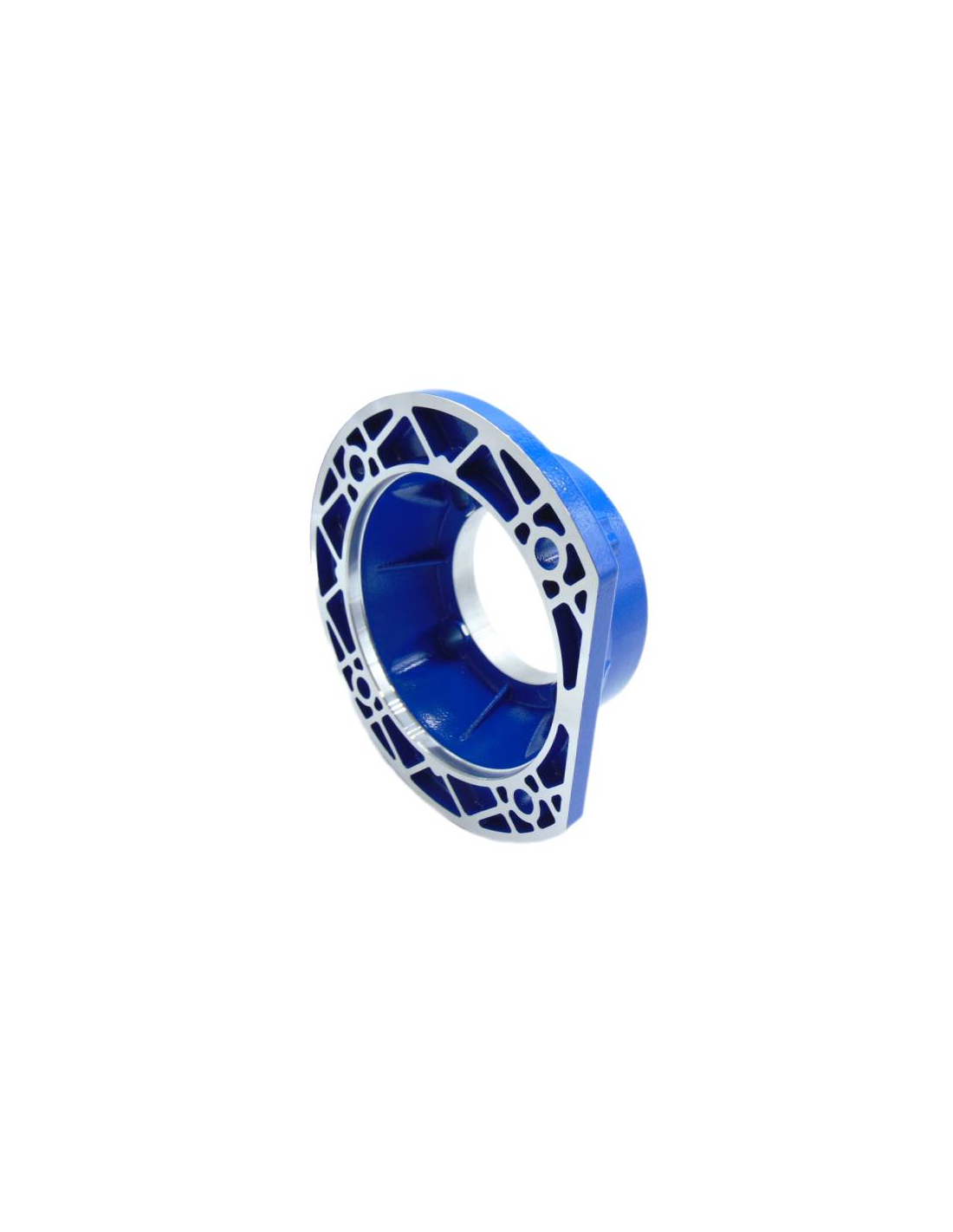

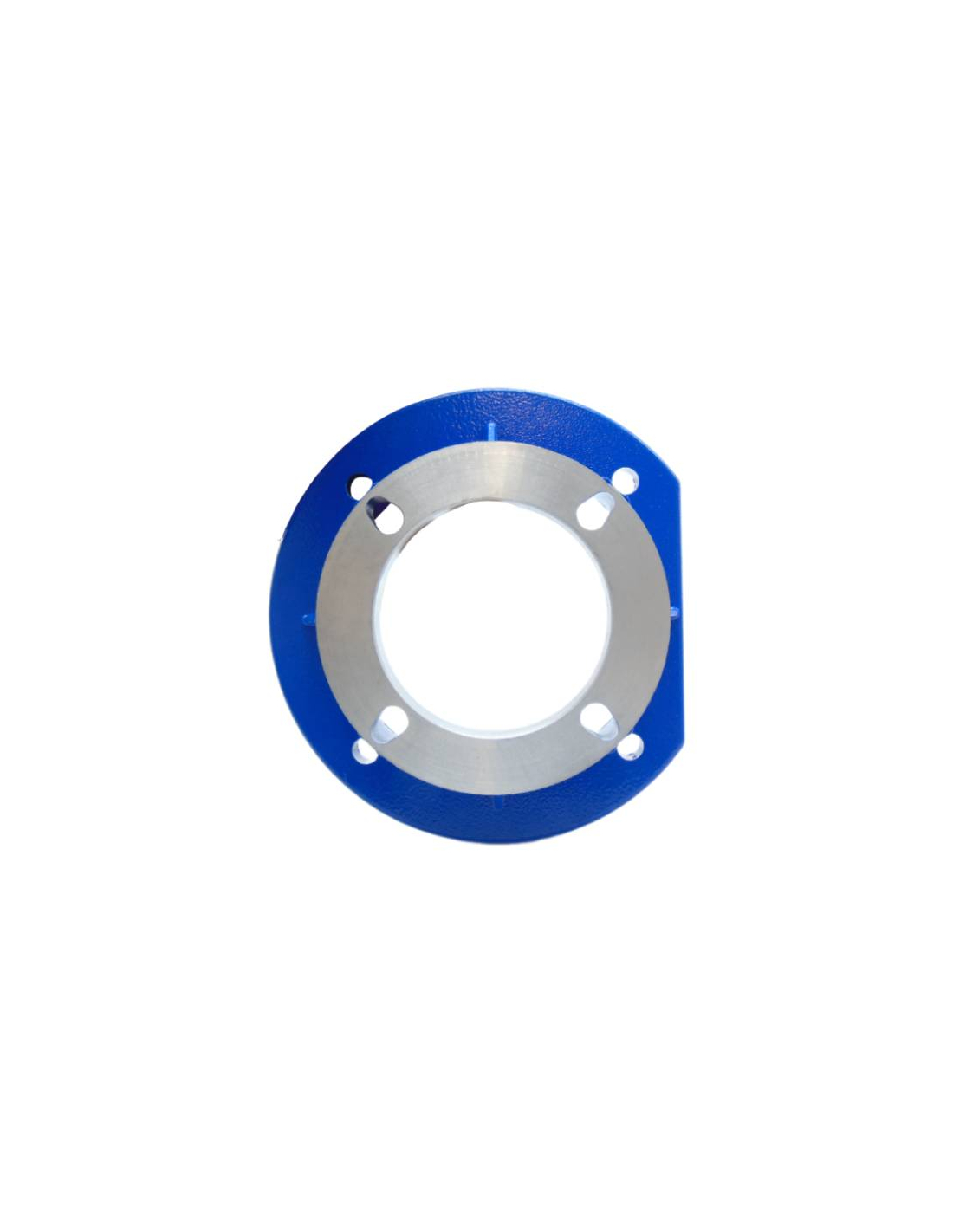

FC-63 type output flange for size 63 worm gear reducers. This flange allows for lateral coupling in a very simple and compact way.

Reference: FC-63

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Lateral outlet flange type FC-63 for size 63 worm gear reducers. This flange allows for lateral mounting in a very simple and compact way. Made of aluminum.

Technical characteristics:

Reference: FC-63
flange type: FC
Size: 63
Material: Aluminum

Material for professional use, install in compliance with the regulations in force at the installation site.
