4-pole differential 63A 300mA class A-SI - Toscano
4-pole differential 63A 300mA class A-SI - Toscano

4-pole differential 63A 300mA class A-SI - Toscano

€105.27 Tax included

€87.00 tax excl.

Three-phase Class A-SI superimmunized differential, 63A 300mA (0.3A) 4 Poles (3P+N). Type A-SI differential, designed to guarantee continuous and efficient protection, detects alternating and pulsating residual current that occurs suddenly or increases slowly in magnitude, and presents high immunity to unwanted tripping. Breaking capacity 10kA.

High-immunity Circuit breaker , very suitable for installations with electronic equipment such as air conditioners, LED lighting, computers, etc.

Reference: VDA4P63300

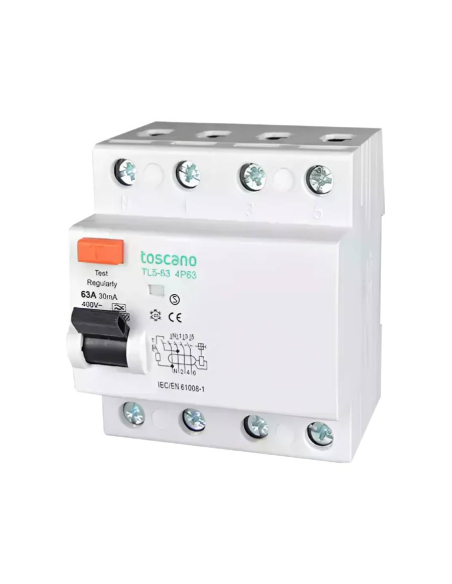

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


63A 300mA (0.3A) Class A-SI superimmunized, 4-pole (3-pole + neutral) Electric differential switch for personal protection against insulation/shunt problems in electrical installations or components. For use in the domestic, tertiary, and industrial sectors, and for loads with electronic components such as air conditioning, LED lighting, computers and peripherals, computer racks, and servers.

This type of RCD detects ground faults caused by alternating and pulsating residual currents, whether they occur suddenly or increase slowly in magnitude, and offers high immunity to unwanted tripping. It includes a visual contact position indicator, red (ON), green (OFF).




Technical characteristics:

  • Manufacturer/Supplier: Toscano
  • Reference: VDA4P63300
  • Number of poles: 3 Poles + Neutral
  • Class: A-SI
  • Nominal voltage: 415Vac
  • Nominal frequency: 50/60 Hz
  • Nominal intensity (In): 63A
  • Nominal sensitivity (IΔn): 300mA (0.3A)
  • Breaking capacity (Icn): 10kA
  • Cutting time:
  • Insulation voltage (Ui): 500V
  • Rated impulse withstand voltage (Uimp): 4000V
  • Trigger indicator: Yes
  • Protection level: IP20
  • Ambient temperature: -5ºC to +40ºC
  • Maximum cable section: 25mm²
  • Mounting: DIN rail (35mm) fixed by claws
  • Connection: Upper or lower entry either
  • Directives: 2014-35-EU (LVD), 2014-30-EU ( EMC ); 2011-65-EU (RoHS)




Professional use material, install in compliance with the regulations in force at the place of installation.
