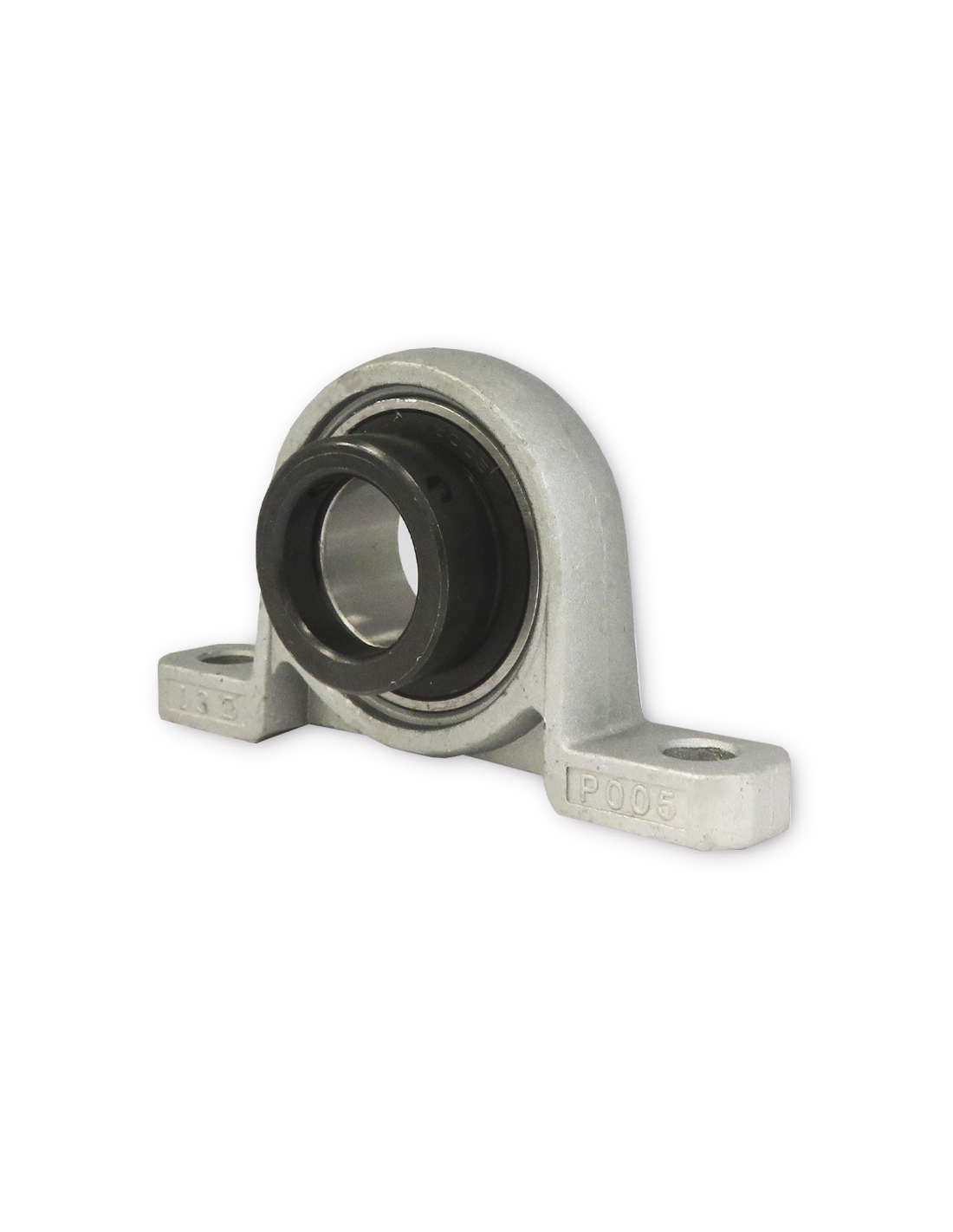

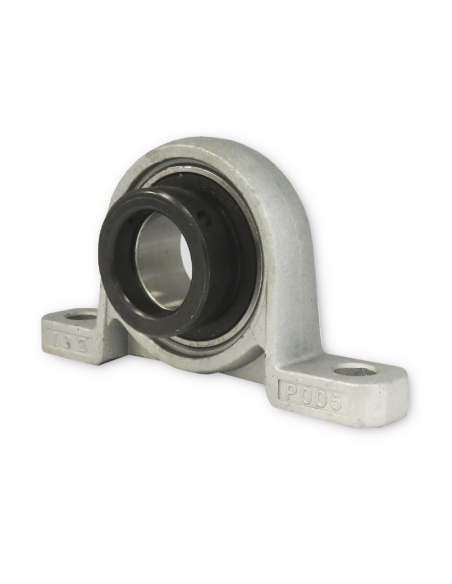

Self-aligning support foot made of aluminium alloy with pre-assembled steel insert, for Ø20mm shaft with eccentric fixing to the shaft. The body of the support made of aluminium alloy is protected against corrosion. High load capacity.
Aluminum alloy supports with steel bearings offer a significant reduction in size and weight compared to the same size series on the market. This design promotes space and material savings, making it widely applicable in machine design.
Insert ball bearings are grooved. Their outer rings have a spherical surface that is free to oscillate in the raceway of the support. This oscillation allows self-alignment in the housing of the support and compensates for any misalignment and eliminates, as far as possible, unwanted stresses between the shaft and the support. The bearing is fixed to the shaft by means of an eccentrically machined collar of the inner ring and the recess of the eccentric ring, which are tightened together during assembly and guarantee the bearing is fixed to the shaft. Eccentric fixing allows easy disassembly without damaging the insert or the surrounding material, which facilitates maintenance and repairs.
The bearing is sealed by a gasket made up of a protective plate and rubber seal. The bearing has a gasket on each side. This protection system prevents the escape of grease and any possible infiltration of contaminating agents, which is particularly suitable when there are very aggressive external agents, dust, liquids or when the machine works outdoors.
The supply includes (already assembled):
- Support: LP004
- Insert ( bearing ): U004 with eccentric
Main dimensions:
- d: 20mm
- h: 28mm
- a: 100mm
- e: 80mm
- b: 20mm
- s: 10mm
- g: 9mm
- w: 55mm
- L: 21mm
- n: 6mm
- G: 4.5mm
- Weight: 0.230kg
For other references or models, please consult.
Professional use material, install in compliance with the regulations in force at the place of installation.
