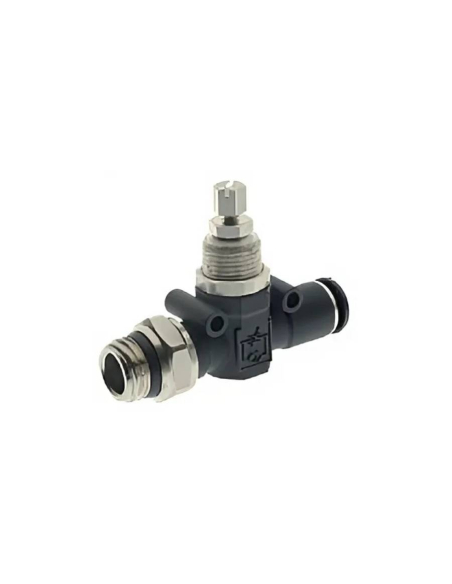

Short 1/4 male unidirectional flow Regulator - 6mm tube for cylinder - Aignep

Name: Short 1/4 male unidirectional flow Regulator - 6mm tube for cylinder - Aignep
Brand: Aignep
SKU: 55945146
Price: 10.2003 EUR
Availability: PreOrder

€10.20 Tax included

€8.43 tax excl.

One-way inline flow Regulator , 1/4 short male connection and 6mm diameter tube, body made of technopolymer, designed for regulating the fluid in one direction only. Inline mounting for cylinder.

Series: Function
Reference: 55945 1/4 6

55940 SCHEMATIC aignep
regulations

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

One-way inline flow Regulator for cylinder, 1/4 short male connection and 6mm diameter tube, body made of technopolymer. It is provided with an O-ring on the screw, to improve the tightness of the regulator.

The regulator can be mounted on a panel or wall, and is provided with the necessary elements for correct installation.

55945materials

Regulator Features:

Manufacturer: Aignep
Reference: 55945 1/4 6
Working pressure bar : 1 ÷ 10
Operating temperature °C: -20 ÷ +80
Fluid: Compressed air
Body material: Technopolymer
O-ring material: NBR
Adjusting screw material: Nickel-plated brass
Type: One-way in-line Regulator for cylinder
Connection tubes: PA6, PA11, PA 12, Polyethylene, Polyurethane (Use from 90 to 98 Shore, for maximum performance 98 Shore A is recommended), PTFE, FEP
Thread standard: Gas conical “universal short”

Dimensions:

55945 dimensions
55945td

For other types and models of regulators, please consult.

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

fucntion series catalog

Download (8.93MB)
