8mm tube-tube bidirectional flow Regulator - Metal Work

€14.05 Tax included

11.61 tax excl.

9041624

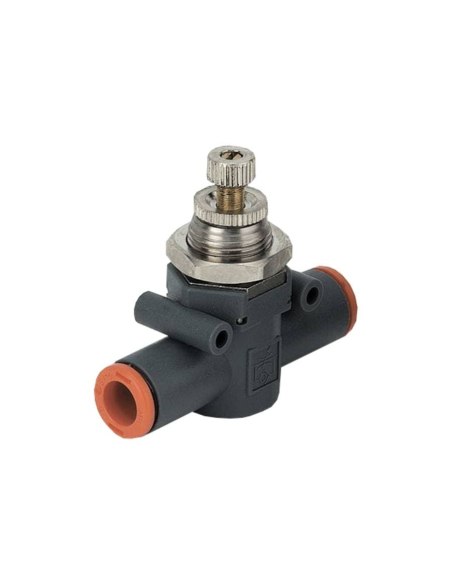

Bidirectional in-line flow Regulator , for 8mm diameter tube, designed for fluid regulation in two directions.

Reference: 9041624

9041301schemeMetal Work Logo


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.



No queries yet, leave the first!
Privacy
Shipments
Returns


Bidirectional flow Regulator developed to control fluid speed. It is provided with an O-ring on the screw, to improve the tightness of the regulator and automatic fittings at the inlet and outlet.

This micro-flow regulator with built-in automatic fittings is responsible for regulating the air supply and, thus, the speed in the pneumatic actuators.

The regulator can be mounted on a panel or on a wall; it is provided with the necessary elements for its correct installation.

  • Manufacturer: Metal Work
  • Reference: 9041624
  • Tube diameter: 8mm
  • Body material: Technopolymer
  • Gasket: NBR
  • Exercise temperature: -20 ºC +60 ºC
  • Max pressure exercise: 10 bar
  • Max flow in regulation at 6.3 bar : 850 Nl/min
  • Exhaust flow at 6.3 bar : 950 Nl/min
  • Regulation: manual
  • Fluid: filtered compressed air with or without lubrication

Dimensions:
904dimensions


For other types and models of regulators, consult.

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

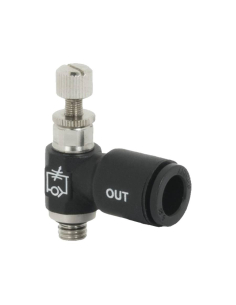

One-way swivel Regulator with 1/8" diameter 6" cylinder knob - Aignep | ADAJUSA | Price
