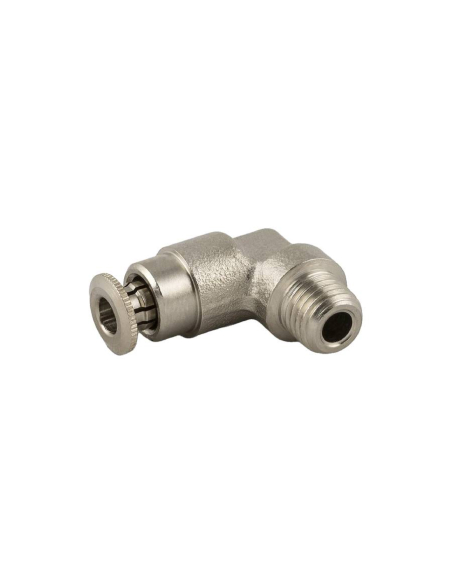

1/8" male conical L fitting for 6mm diameter tube, made of nickel-plated brass. Fittings suitable for applications related to centralised lubrication and greasing of mobile or industrial machinery. They are suitable for high temperature and pressure environments of up to 150 bar with fluids.
The “high pressure” series with specific threads for lubrication and greasing systems is applicable in the heavy industry sector, railway sector, vehicles (truck, bus, agricultural, etc.), offering reliable sealing and quick installation.
Main advantages of the 58000 High Pressure Series:
- Instant connection and disconnection
- Full step
- Typical lubrication threads
- High resistance and robustness
- High temperature and pressure ranges
Technical characteristics:
- Manufacturer: Aignep .
- Reference: 58100 6 1/8
- Thread: 1/8
- Outer diameter of tube: 6mm
- Fluid: Oil, grease, water and compressed air
- Material: Nickel-plated brass
- Temperature: - 30C to +150C
- Minimum pressure: 0 bar
- Maximum pressure with fluids: 150 bar
- Maximum pressure with air: 30 bar (*)
- Connecting tubes:
- PA6, PA66 for High Pressure
- (*) PA6, PA66, PA11, PA12, Polyethylene
- (**) Polyurethane , PEF, PTFE.
- Thread regulations:
- Conical gas according to ISO 7.1, BS 21, DIN 2999
- Metric conical according to UNI 7707
(**) use of 90 to 98 Shore, for maximum performance 98 Shore A is recommended.
For further information you can download the technical sheet by clicking on the "Attached Files" tab .
Professional use material, install in compliance with the regulations in force at the installation site.
