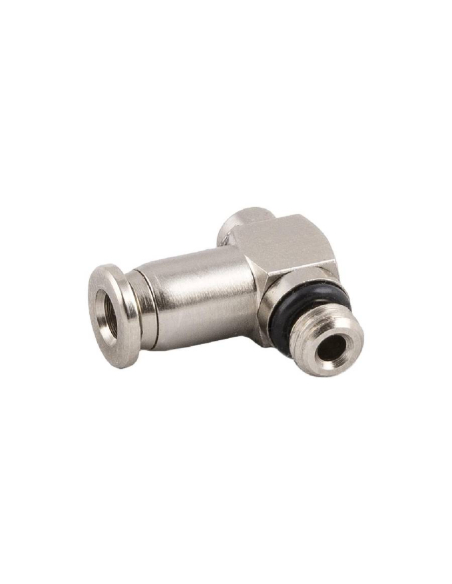

M3 simple adjustable elbow fitting for 3mm tube, made of nickel-plated brass with NBR gasket , light and compact configuration. Its miniature design is ideal for applications where space is limited and a quick and secure connection is required.
Series of Push-In fittings suitable for compressed air systems, pneumatic automation, automotive, robotics, textile industry, packaging, handling, vacuum and industrial water.
The 56000 mini fitting series offers diameters of 2,3,4,6 mm and metric M3, M5, M7, 1/8 and 1/4.
Advantages of the 56000 mini series
- The stainless steel clamp guarantees the perfect grip of the tube of any material without damaging the surface. The connection between tube and fitting ensures total tightness even in conditions of impact or vibration.
- The particular geometry of the seal guarantees perfect sealing even in vacuum.
- All threads in this series are manufactured with a sealing gasket that allows the immediate use of the fitting, significantly reducing installation time.
- All straight fittings can also be assembled with a hexagonal wrench and can be used even in very small spaces.
Technical characteristics:
- Manufacturer: Aignep .
- Reference: 56550 3 M3
- Male thread: M3
- Tube outer diameter: 3mm
- Fluid: vacuum, compressed air and water
- Material: Nickel-plated brass
- Clamping spring: stainless steel
- Pressure: -0.99 bar at 20 bar
- Working temperature: -20ºC to +80ºC
- Thread regulations:
- Conical gas conforming to ISO 7.1, BS 21, DIN 2999
- Cylindrical gas according to ISO 228 Class A
- Metric according to ISO R/262
Material for professional use, install in compliance with the regulations in force at the installation site.
