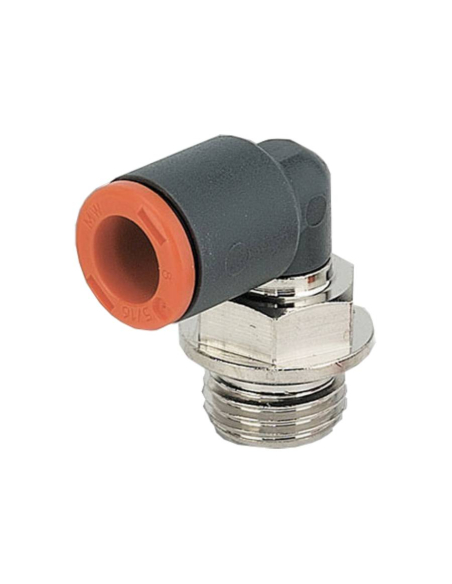

Cylindrical swivel elbow fitting 1/4 tube 8 technopolymer - Metal Work

Name: Cylindrical swivel elbow fitting 1/4 tube 8 technopolymer - Metal Work
Brand: Metal Work
SKU: 2L34010
Price: 2.5773 EUR
Availability: InStock

€2.58 Tax included

€2.13 tax excl.

Racor rotating elbow 1/4 for tube ØExt 8mm. Male cylindrical thread, with O-ring included. Fast, very simple and efficient connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Racor valid for pneumatic and vacuum installations.

Reference: 2L34010

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/4 male swivel elbow fitting for 8mm. 8mm. outdoor tube, quick-connect, made of high quality laton and technopolymer. Very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring, turn the tube on without engraving or deforming it allowing for greater simplicity in the operation of connection or disconnection of the tube fitting. In the fittings the fitting ring has screwdriver slots for easy disconnection in finger-inaccessible applications.

Manufacturer: Metal Work.
Manufacturer's reference: 2L34010.
Thread: 1/4 Cylindrical.
Tubeexterior: 8mm.
Fluid: Vacuum - Compressed air.
Operating pressure: -0.99 bar to 16 bar.
Material: Chromed brass and technopolymer.
Retention gasket: NBR.
Clamping spring: stainless steel.
Working temperature: -20oC to +80oC.

For other references consult.

Dimensiones racores neumáticos orientables Metal Work

Material for professional use, install in compliance with the regulations in force at the place of installation.

Racores tecnopolimero MW

Download (1.3MB)
