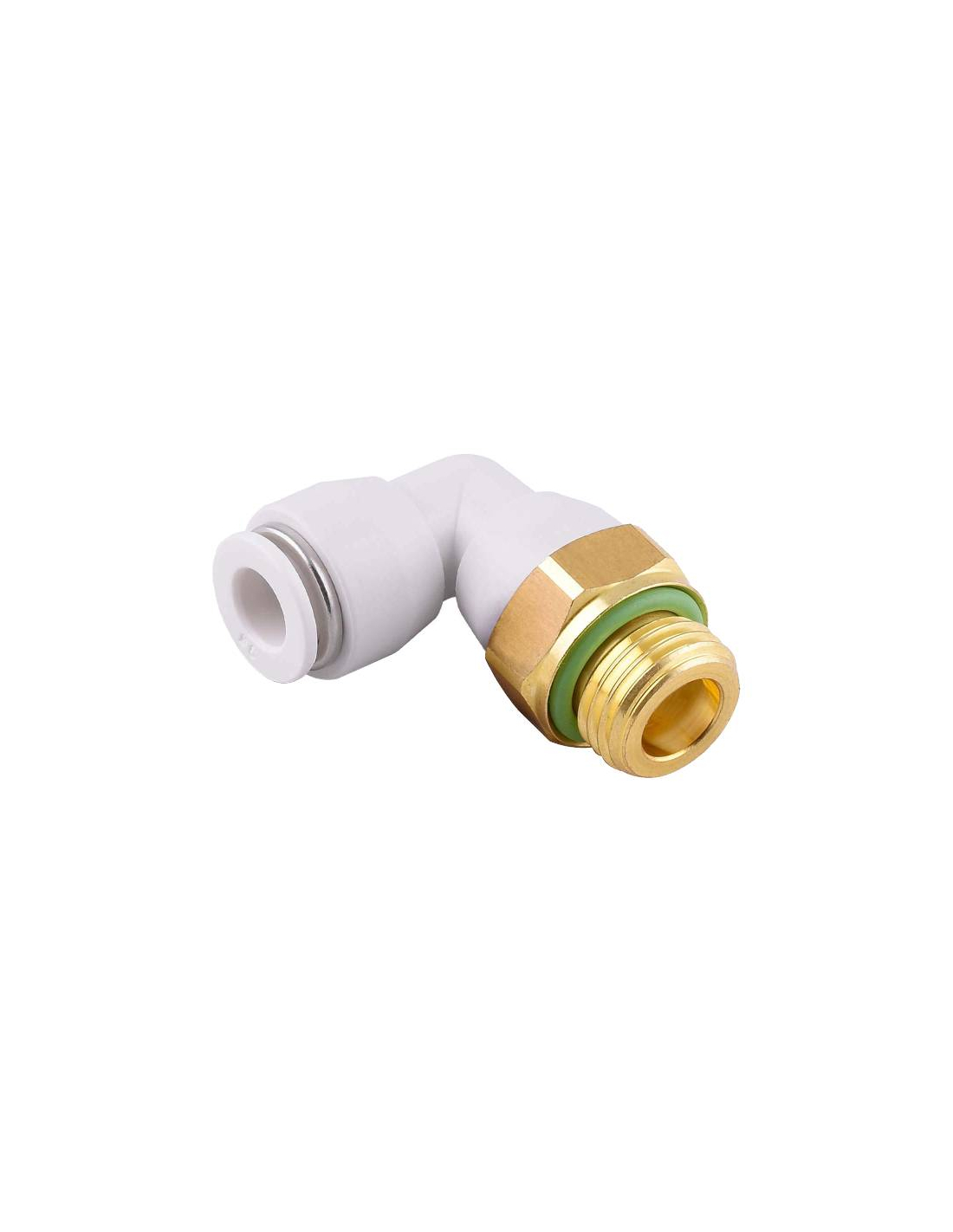

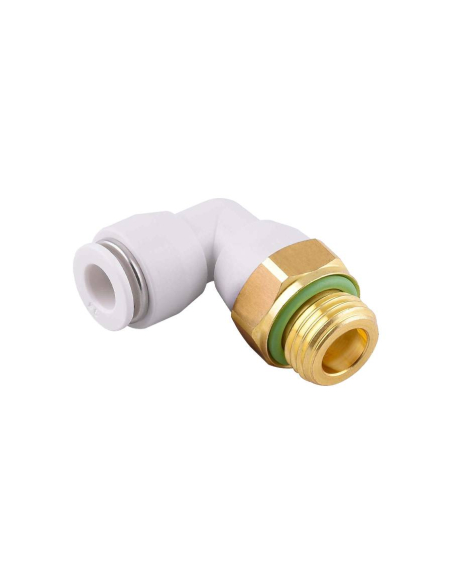

Male cylindrical adjustable elbow fitting M5 4mm tube for food and drinking water use Series 53000 FOOD - Aignep

Male cylindrical adjustable elbow fitting M5 4mm tube for food and drinking water use Series 53000 FOOD - Aignep

€4.56 Tax included

€3.77 tax excl.

Adjustable elbow fitting with M5 cylindrical male thread for 4mm tube, body made of high-resistance PPSU thermoplastic, food-grade FKM gasket and threaded base in brass with low lead content CW510L. Fittings intended for food use and drinking water. They have international NSF/ANSI 169 certification and MOCA reg conformity. EU 1935/2004, DM 174/2004.

Series of Push-In fittings designed for direct and indirect contact with food, drinking water, warm water, beverages, air, vacuum and other liquids.

Series: 53000 FOOD
Reference: 53117 4 M5

aignepnormative

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Adjustable elbow fitting with M5 cylindrical male thread for 4mm tube, body made of high-resistance PPSU thermoplastic, food-grade FKM gasket and threaded base in brass with low lead content CW510L. This type of automatic fittings are specially designed for direct and indirect contact with food, drinking water, warm water, beverages, compressed air, vacuum and other liquids; They are widely used in the agri-food industry, coffee and vending machines, food and beverage sector, medical and vacuum sectors.


The 53000 FOOD series of fittings is manufactured in total hygienic-sanitary safety and has international certification NSF/ANSI 169, as well as MOCA compliance with EU regulation 1935/2004, DM 174/2004 regulation 98/83/EC.


53000DRAWING


Advantages of the 53000 FOOD series:

  • The stainless steel clamp guarantees the perfect grip of the tube of any material without damaging the surface. The connection between tube and fitting ensures total tightness even in conditions of impact or vibration.
  • The particular geometry of the seal guarantees perfect sealing even in vacuum.
  • All threads in this series are manufactured with a sealing gasket that allows the immediate use of the fitting, significantly reducing installation time.
  • Economical alternative to stainless steel, reduced weight.



Technical characteristics:

  • Manufacturer: Aignep
  • Reference: 53117 4 M5
  • Male thread: M5
  • Tube outer diameter: 4mm
  • Compatible fluids: Compressed air / Vacuum / Water / Warm water / Food / Steam (on request in EPDM PX) Max 130C
  • Operating pressure: -0.99 bar to 20bar
  • Working temperature: -15C to +140C
  • Body Material: PPSU Thermoplastic
  • Gasket: FKM food grade
  • Connection tubes: Material PA6, PA11, PA 12, Polyethylene, Polyurethane (*) , PTFE and FEP
  • Thread regulations:
    • Cylindrical gas according to ISO 228 Class A
  • Certifications:
    • NSF/ANSI 169: Establishes minimum food protection and sanitation requirements for materials
    • EC Regulation 1935/2004: Establishes the Community legislative framework applicable to materials and objects intended to come into contact with food.
    • Decree DM 174/2004: Decree that regulates the materials and objects that can be used in fixed systems for the collection, treatment, adduction and distribution of water intended for human consumption.

(*) use 90 to 98 Shore, for maximum performance 98 Shore A is recommended.



53117DIMENSIONS
53117TD







For more information you can download the technical sheet by clicking on the "Attachments" tab .

Material for professional use, install in compliance with the regulations in force at the installation site.
