Pneumatic filtering and lubrication unit 3/8 filtering grade 20 semi-automatic purge ANTICORROSION Syntesi series - Metal Work

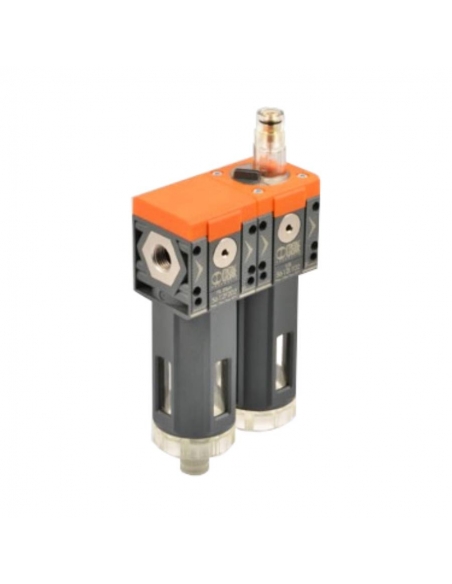

Pneumatic filtration and greasing unit with 3/8 thread Syntesi series size SY2, with semi-automatic drain. Made of high-resistance technopolymer and threads on metal support

Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. The filter discharge system is by means of a semi-automatic purge of condensation, independent of pressure and flow. Anti-corrosion system.

Characteristics of the filter group:

• Manufacturer: Metal Work
• Manufacturer reference: FIL+DEP SY2 3/8 20 RMSA
• Code: 5X23F20L103
• Number of elements: 2 (F+L).
• Thread size: 3/8.
• anti-corrosion version
• Filtering degree: 20 μm.
• Condensation discharge: RMSA
• Maximum inlet pressure (bar/Mpa/psi): 13 / 1.3 / 188
• Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 2900
• Flow rate at 6.3 bar (0.63 MPa, 91 psi) ∆P 1 bar (0.1 MPa, 14 psi) (Nl/min): 4400
• temperature at 10 bar; 1MPa; 145 psi ( °C): 10 ÷ +50
• Filter bowl capacity: 70 cm3
• Coupling for additional air intakes: 1/4", front and rear
• Flow rate for additional air intakes: 1500-800 Nl/min.
• Mounting position: Vertical.
• Chargeable oil quantity: 130 cm3
• Wall fixing screws: Number 2 M5 screws

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
