Electric pedal with interlocking and protection...
Electric pedal with interlocking and protection cover - 06V0000008

Electric pedal with interlocking and protection cover - 06V0000008

€42.75 Tax included

€35.33 tax excl.

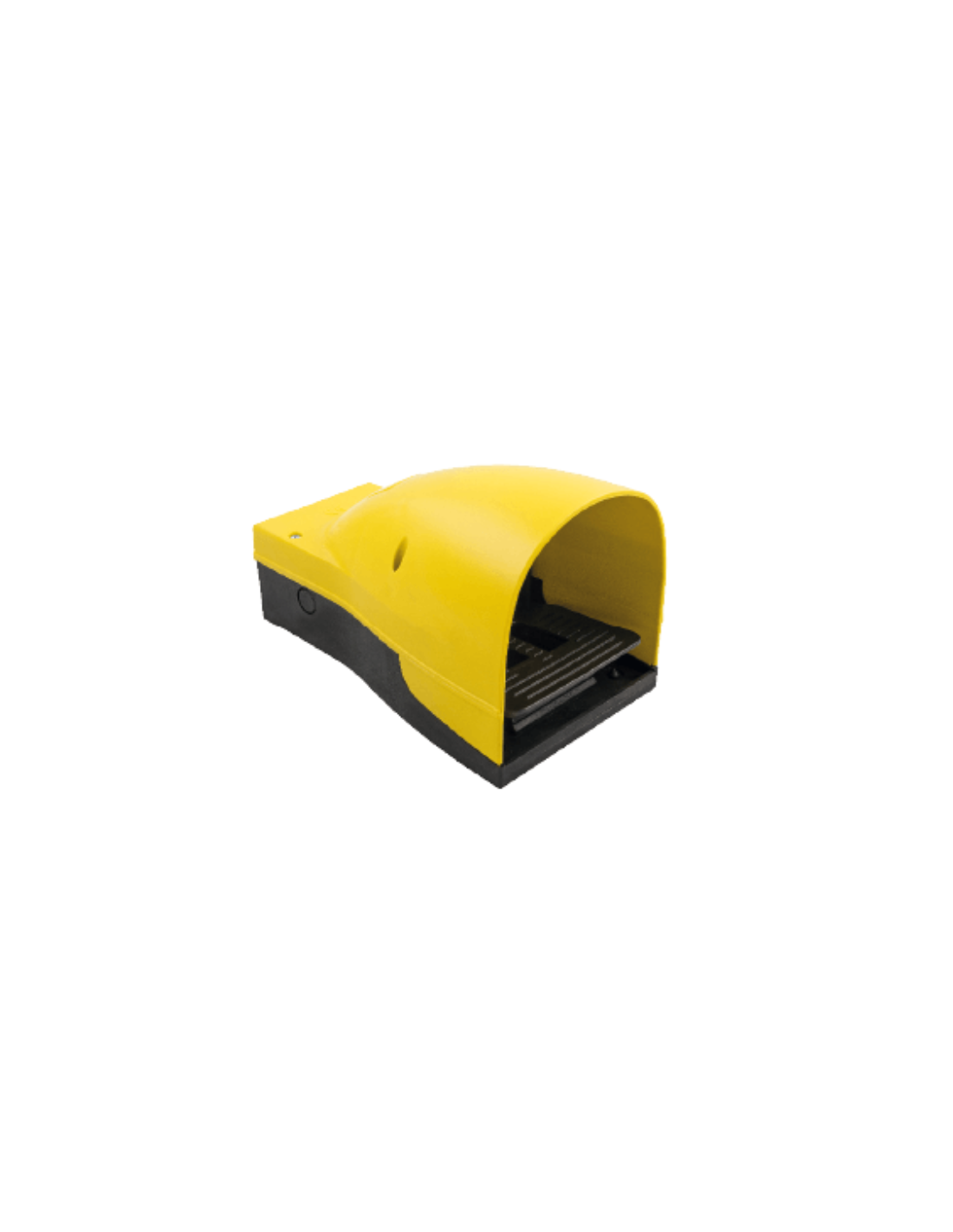

Electric pedal with interlocking device (Bistable), made of thermoplastic with protection cover. They have a NO/NC switched electrical contact

Foot switches are used as control switches for machines and equipment when the operator needs to have his hands free. The electrical contact is activated when actuated with the foot and remains in this position even if the foot is released, until it is pressed again, then it returns to the initial position (rest).

Color: yellow

Part number: 06V0000008



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Electric pedal with mechanical interlocking device, made of high resistance thermoplastic material with protection cover for industrial and general applications. The electric pedal incorporates an open electrical contact (NO/NC).

Foot switches are used as control switches for machines and equipment when the operator needs to have his hands free to perform other functions and the foot pedal remains activated once the foot is removed. It will remain in this position until it is unlocked with the front of the foot.

The pedals are equipped with protection cover to prevent accidental operation due to falling objects or accidental presses. It also has rubber stops on the base to prevent slipping.

The degree of protection of the electric pedal is IP-65.

Summary of features:

  • Manufacturer: Aignep
  • Part number: 06V0000008
  • Material: Thermoplastic.
  • Color: Yellow (pantone 102C).
  • Contact type: NO/NC.
  • Maximum insulation voltage (Ui): 690V.
  • Rated thermal current (Ith): 10A.
  • Degree of protection: IP65.
  • Ambient operating temperature: -25º...+70ºC.
  • Conformity: IEC/EN60947-5-4.

Dimensions:



Material for professional use, install in compliance with the regulations in force at the place of installation.
