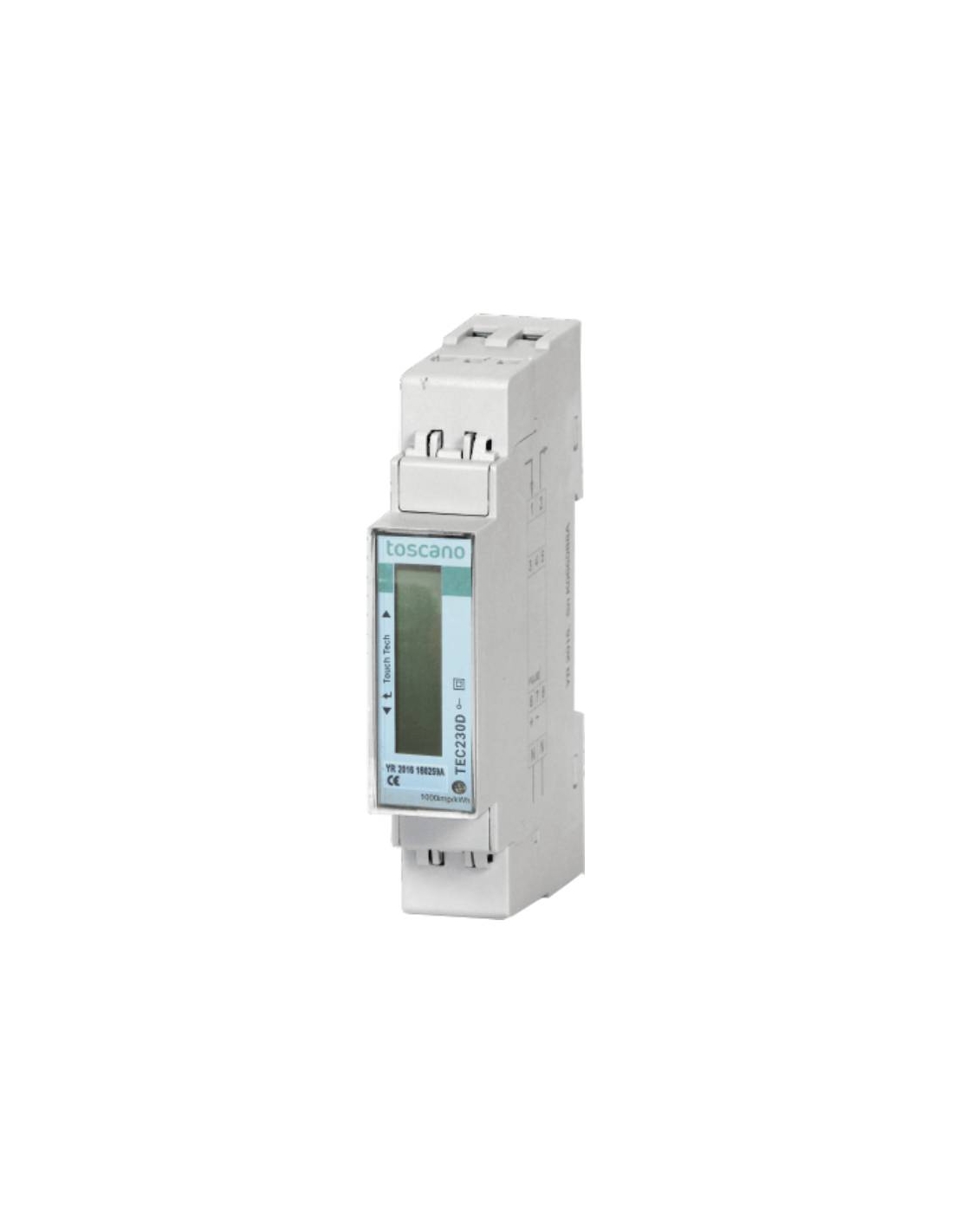

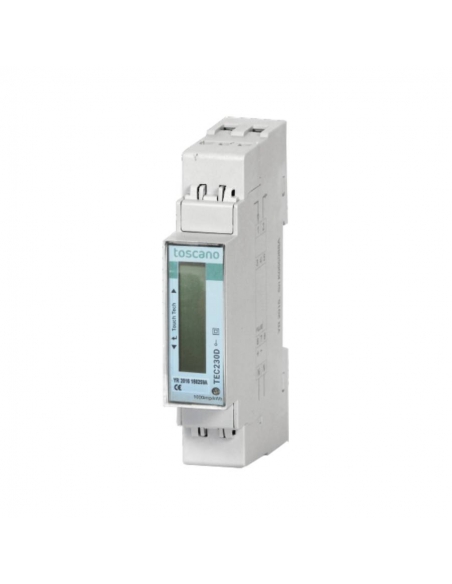

Electric power meter single-phase TEC-230D 1 din-rail module - Toscano

€72.59 Tax included

€59.99 tax excl.




No queries yet, leave the first!


Digital energy meter 230Vac single-phase, 5(45)A, rail DIN.


Direct connection single-phase power analyzer with Modbus, pulse or M-bus interface, 45 A. The analyzer measures active and reactive energy, combining mode (easy connection on) or separating the supplied and consumed energies.

It allows the measurement according to two rates using a digital input or a Modbus command. An optional output can be added to communicate the measurements: pulse output, RS485 Modbus port or M-Bus port. It measures a DIN module, with backlit LCD screen with touch zones to move through the pages and set the values of the parameters.


Characteristics:

  • Manufacturer: Toscano
  • Reference: TEC-230D
  • Power supply: Autonomous (through the measured voltage)
  • Consumption: ≤ 1W, ≤ 8VA
  • Base current: 5A
  • Maximum current (continued): 45A
  • Minimum current: 0.25A
  • Ignition current: 0.02A
  • Operating voltage: 230 V ac, -30%...+20%
  • Frequency: 50Hz (45-65Hz)
  • Accuracy class:

Active energy: Class 1 (EN62053-21) / Class B (EN50470-3)
Reactive energy: Class 2 (EN62053-23)


Output Specifications:

  • Pulse output: 1000 pulses/kWh. Proportional to the measured active energy (EN62052-31)
  • Output RS485 Modbus Port Modbus RTU Protocol
  • Output port M-Bus M-Bus Protocol, (EN13757-1), 3 frames


LED Specifications:

  • Pulse ratio: 1000 pulses/kWh (EN50470-3, EN62052-11)
  • Duration: 90ms
  • Color: Red & Orange



To expand the information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, install in compliance with the regulations in force at the place of installation.
