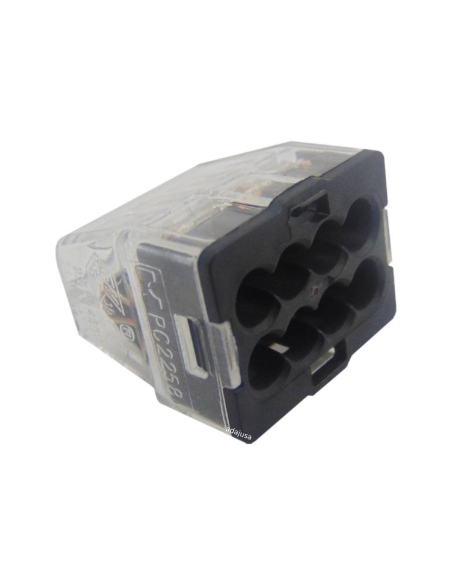

Connection terminal 8-pole 24A quick
Connection terminal 8-pole 24A quick

Connection terminal 8-pole 24A quick

€0.52 Tax included

€0.43 tax excl.

8-pole 24A, 450Vac quick connection terminal for 2.5mm2 cross-section conductors. Screwless quick connection that guarantees a simple, fast and safe electrical connection.


Part number: PC-2258


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

8-pole 24A 450Vac quick-connect terminal block for solid and stranded conductors of 2.5mm2 cross-section. Screwless quick connection by means of a push-in system that allows easy connection and disconnection of the conductor


Transparent housing that allows visualization of the conductor to guarantee its correct connection.




Its system allows quick connection and disconnection of the conductor, and the terminal can be reused as many times as necessary. Ideal for safe electrical connections, they guarantee an optimal termination without the need for tools while speeding up installation. Compact size.




Features :
  • Manufacturer/Supplier: XBS/Mixvill
  • Part number: PC-2258
  • Conductor cross section: 2,5mm²
  • Rated current: 24A
  • Rated voltage: 450V
  • Number of poles: 8
  • Stripping length: 11mm
  • Maximum ambient temperature: 110oC
  • Dimensions: H: 11mm, L: 16.6mm, W: 18.1mm




Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Customers who bought this product also bought:

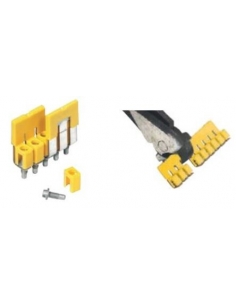

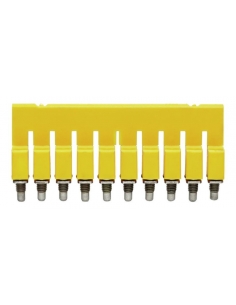

WQV Weidmaller Bridges adajusa WQV Weidmaller Bridges adajusa 2
