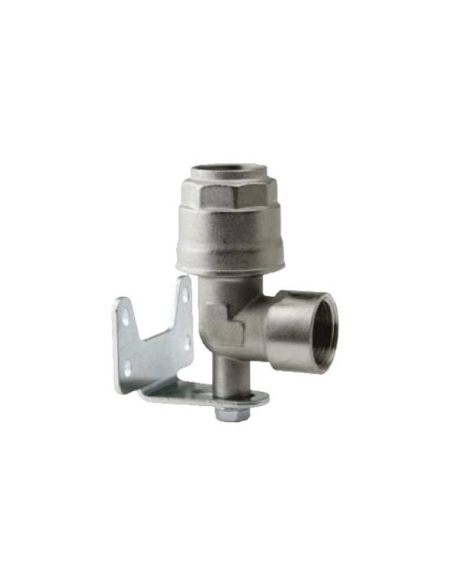

Elbow fitting with 1/2 cylindrical female thread for 20mm outer diameter tube, body and nut made of nickel-plated brass, NBR O-ring. This type of "L" shaped fitting, with support for wall fixing, allows a simple and quick connection of elements in networks and installations of compressed air, vacuum and inert gases such as nitrogen and argon by having a "Push In" system. . It allows the passage of total air avoiding pressure losses. Maximum working pressure 16 bar .
These fittings come pre-assembled with the nut fully tightened, so that it is only necessary to insert the tube to the bottom of the fitting for automatic connection or assembly.
Characteristics:
- Manufacturer: Aignep
- Reference: 90600 20 1/2
- Series: Infinity
- Type of fitting: 90º elbow to fixation
- Tube diameter: 20mm
- Thread: Female 1/2 (Gas cylindrical according to ISO 228)
- Material: Nickel-plated brass
- Application: Compressed air, vacuum, inert gas (nitrogen, argon)
- Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
- Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
- All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)
Material for professional use, install in compliance with the regulations in force at the installation site.
