Double sprockets Z17 taper lock T1615 3/4 x 7/16 12B-2 ISO 606

€22.54 Tax included

€18.63 tax excl.

Double sprockets for taper lock of bush 1615 of roller chain 12B-2 according to European standard DIN ISO 606

Reference: PINHON Z17 3/4 DOBLE-T1615

Teeth: 17

ISO: 12B-2

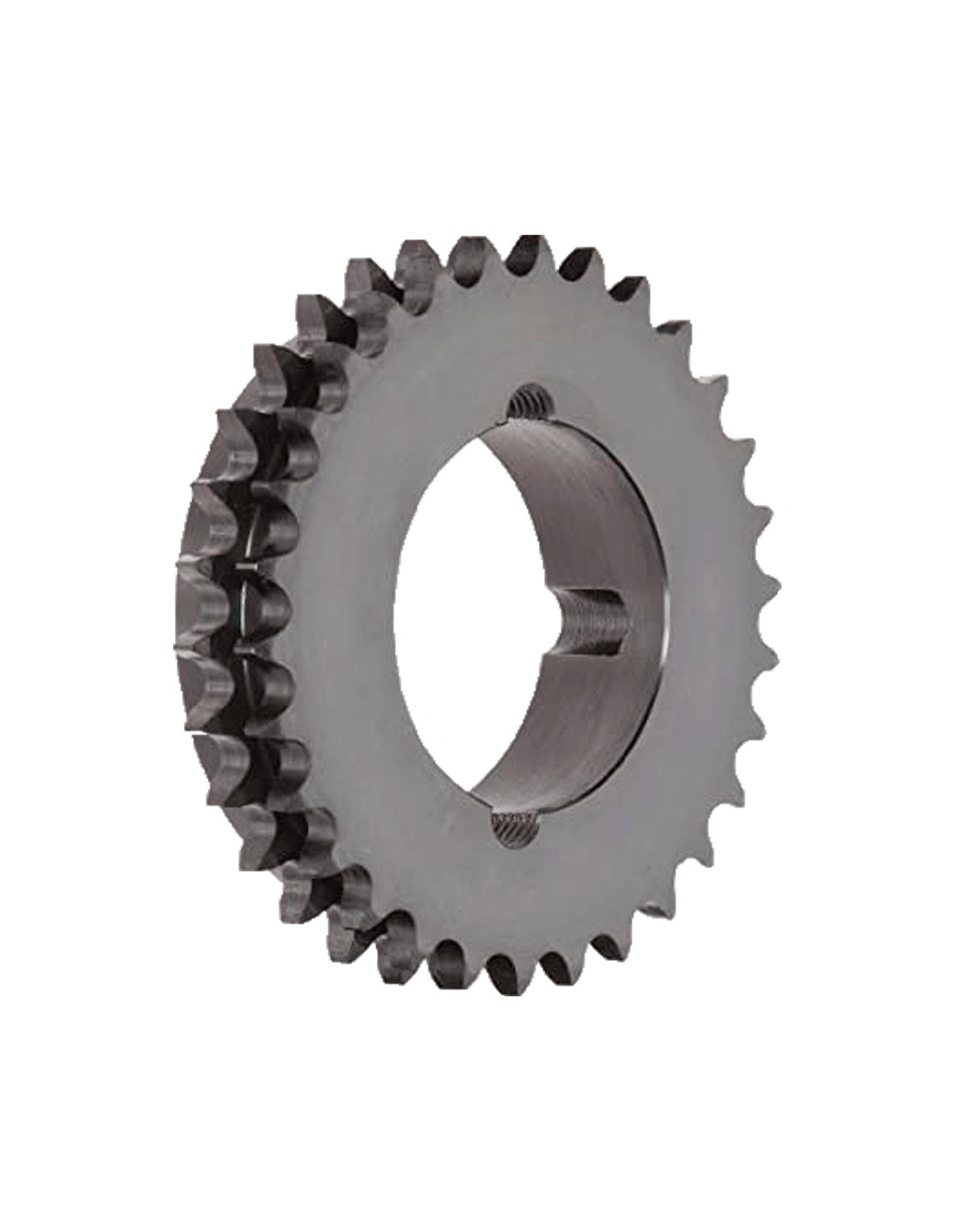

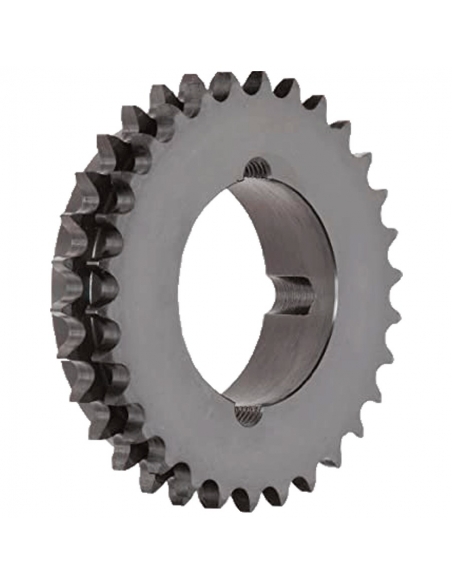

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Double sprockets for taper lock of cap 1615 roller chain 12B-2 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z17 3/4 DOUBLE-T16158


characteristics:

  • 3/4" x 7/16" mm ISO 12B-2
  • 19.05 x 11.68 mm
  • Teeth: 17
  • Taper Lock Cap: 1615
  • Outside Diameter (De): 111.5
  • Primitive diameter (Dp): 103.67
  • Bushing diameter (d):
  • Width (H): 30.3


Material for professional use, install respecting the regulations in force at the place of installation.
