Bearing 3309-2RS FAG 45x100x39.7 mm

€142.94 Tax included

€118.13 tax excl.

Ball bearing 3309-2RS double row angular contact, dimensions 45x100x39.7mm. Double row angular contact ball bearing, with 2RS seal on both sides.

Brand FAG.

Ref: 3309 B-2RSTVH

Logo-FAG

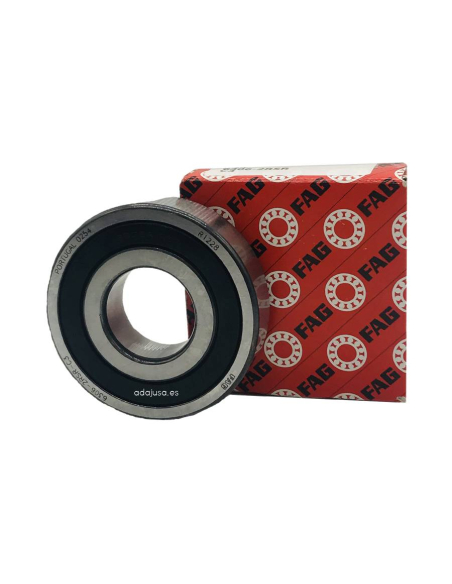

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!

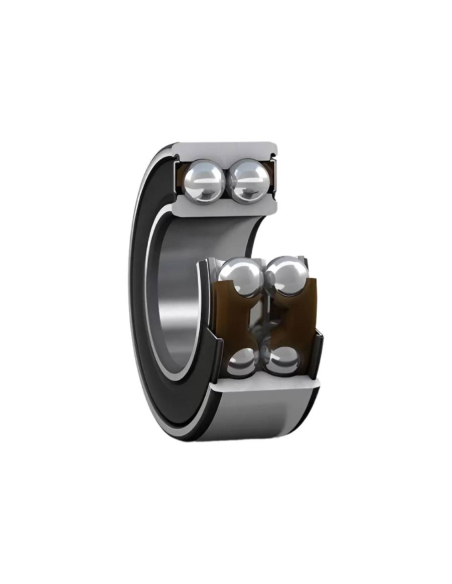

Angular contact ball bearing, double row, 3309 series according to DIN 628-3, two rows of balls, 2RS shutter on both sides.

Double row angular contact ball bearings support high radial loads and axial forces in both directions, the contact angle of this series is 30o.

This type of bearings are suitable for operating temperatures from -30oC to +150oC

Dimensions: .45x.100x39.7.

For other references or measures consult.

Dimensiones doble hilera contacto angular

characteristics:

  • Manufacturer FAG
  • Reference: 3309 B-2RSTVH
  • Material: Tempered steel.
  • Dimension d: 45mm.
  • Dimension D: 100mm.
  • Dimension B: 39.7mm.
  • Shutter: 2RS on both sides.
  • Dynamo load capacity Cr (N): 68000.
  • Static load capacity C₀r (N): 51000.
  • Contact Angle: ἀ-30o
  • Limit speed ng (min⁻1): 4000.
  • Weight: 1.36Kg.

Material for professional use, install in compliance with the regulations in force at the place of installation.
