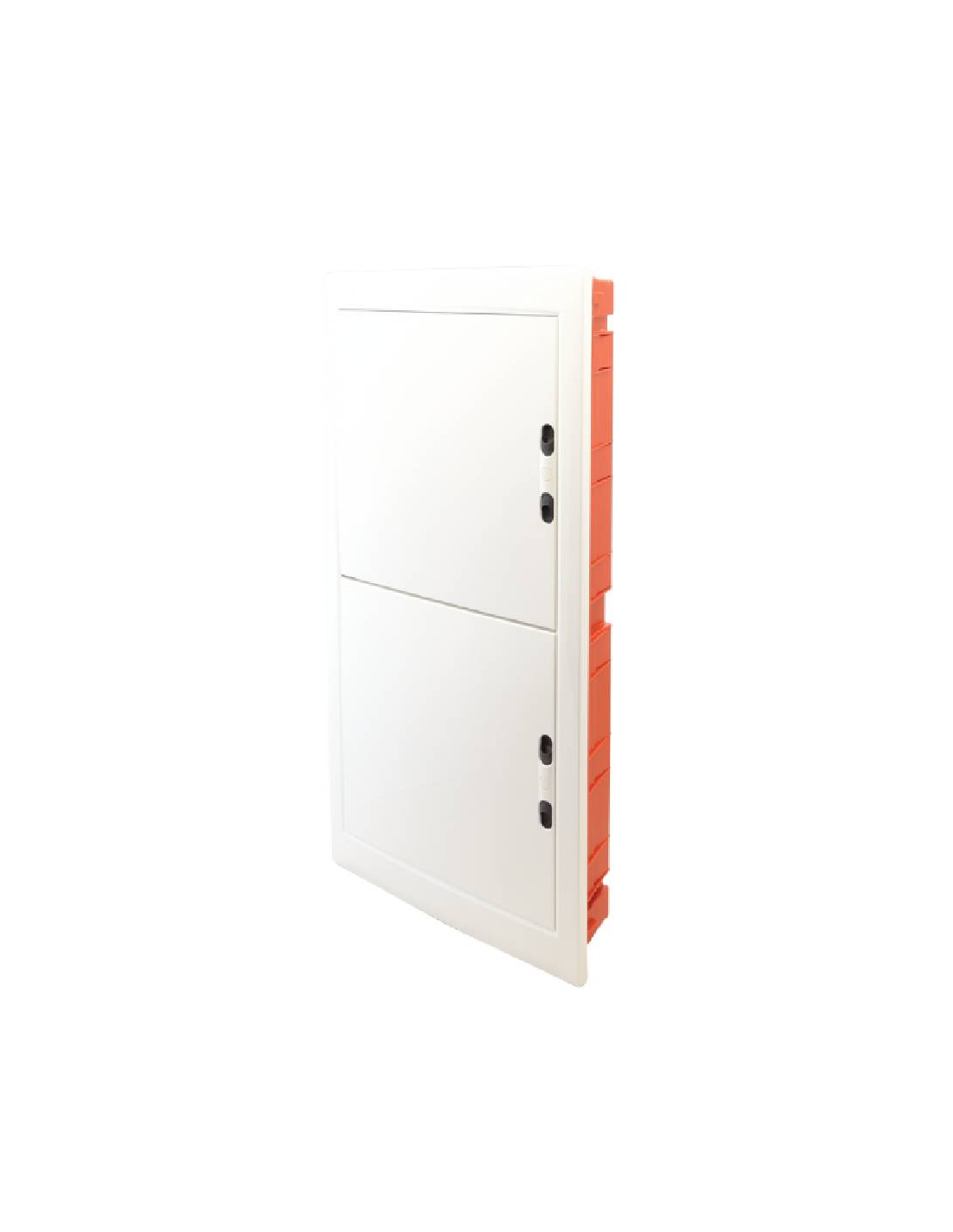

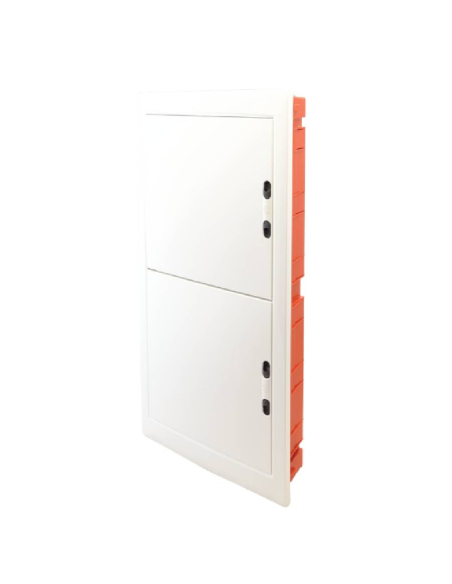

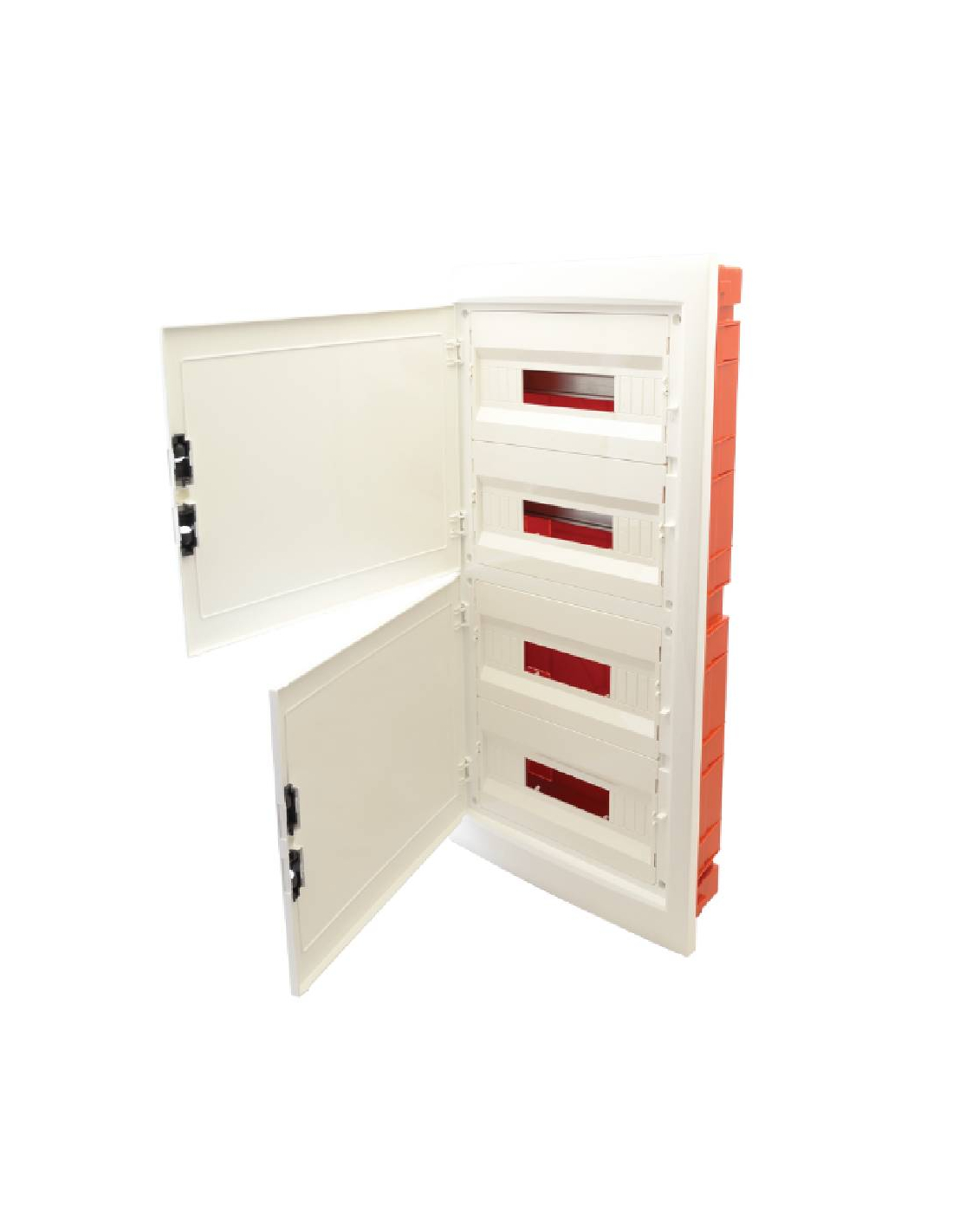

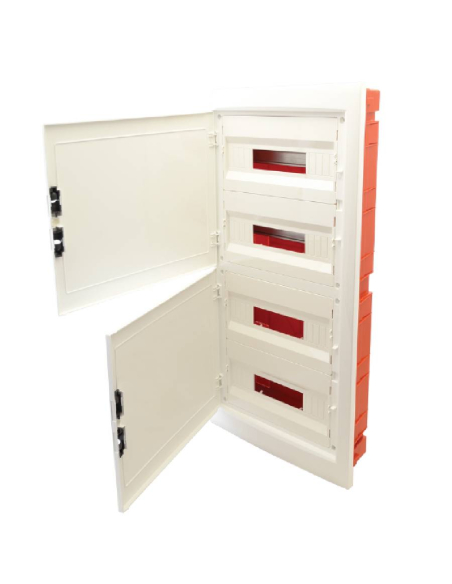

Cabinet distribution panel for recessed installation 72 modules (18x4) opaque door

€189.11 Tax included

€156.29 tax excl.

EDSSN-18/4

Box 72-element distribution panel (18 elements per row) for flush mounting. White opaque door with special double spring lock, the opening direction of the door can be changed. Made of ABS, degree of protection IP40.


Reference: EDSSN-18/4


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

No queries yet, leave the first!
Privacy
Shipments
Returns


Cabinet 72-element electrical distribution cabinet for flush mounting, white opaque door and fast and ergonomic opening system with special double spring lock. The opening direction of the door can be changed, 180º opening. Made of ABS, cover can be sealable, IP40 protection degree.


Box with 72 modules distributed in four rows (18 modules per row), includes DIN rail for mounting elements

Technical features:

  • Manufacturer: TRACON
  • Part number: EDSSN-18/4
  • Number of modules: 72 (18x4)
  • Maximum insulation voltage: 660V
  • Mounting type: Recessed
  • Door: Opaque
  • Dimensions: 440 x 860 x 95 mm
  • Working temperature: -25ºC to +55ºC
  • Material: ABS
  • Color: RAL 9003
  • Degree of protection: IP40
  • Standard: EN 62208


Dimensions:







Material for professional use, install in compliance with the regulations in force at the place of installation.
