Bearing 635 5x19x6mm - FAG
€2.82
Tax included
€2.33 tax excl.

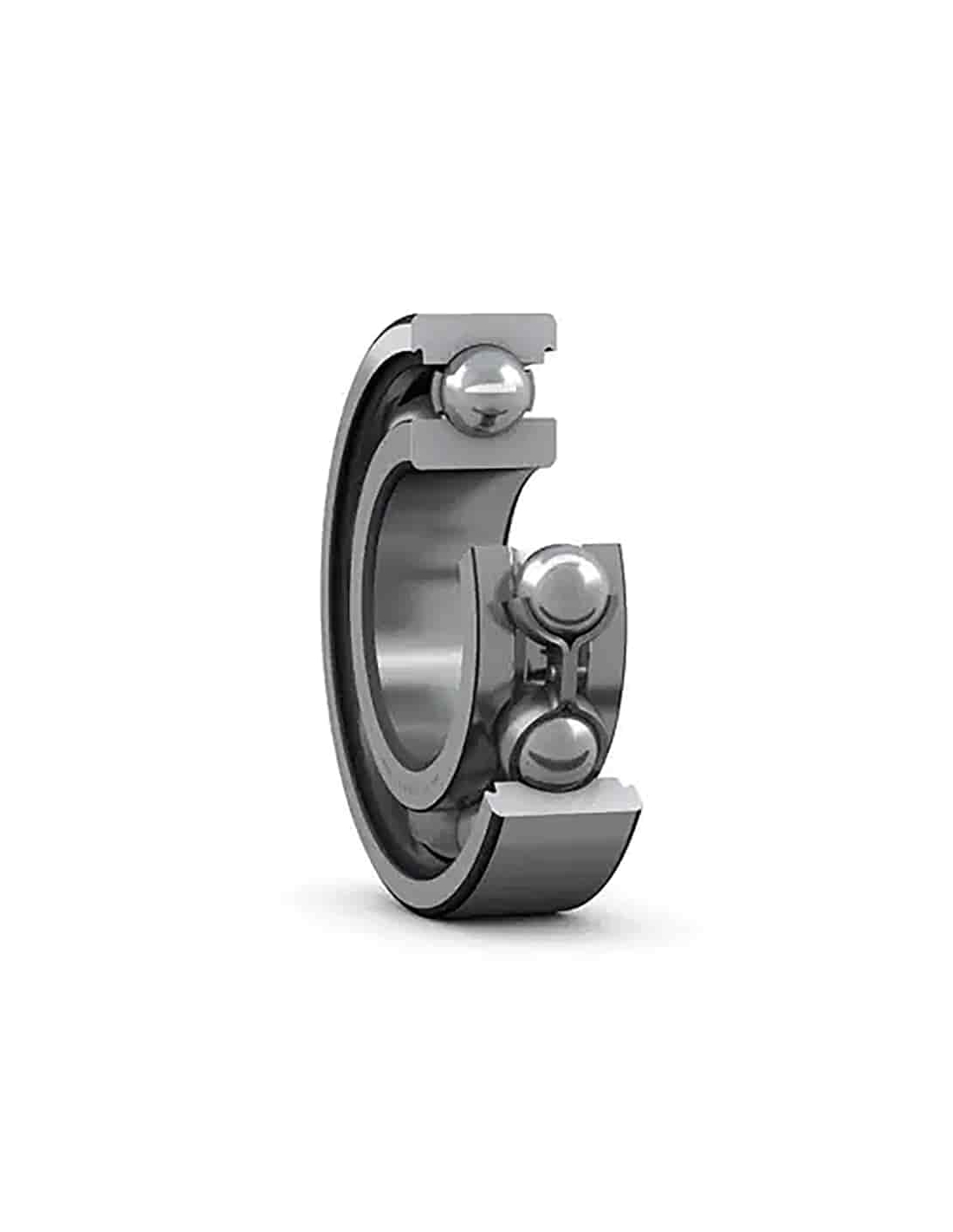

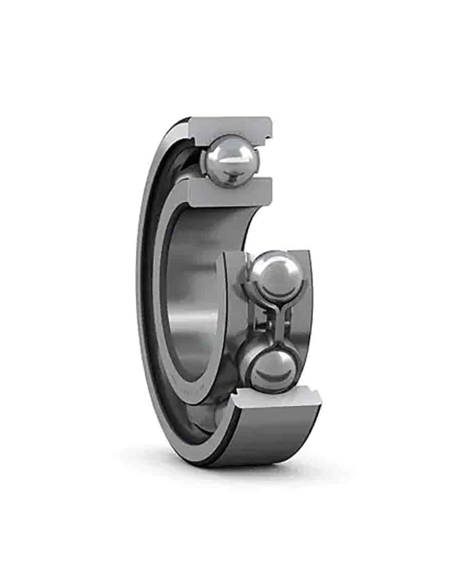

Single row deep groove ball bearing open 635, dimensions 5x19x6mm, inner diameter 5mm, outer diameter 19mm, width 6mm. These bearings consist of solid inner and outer rings with a single row of balls, which enables them to support radial and axial loads in both directions. They are suitable for high speeds due to their low coefficient of friction. They can be lubricated with grease or oil, and their operating temperature can reach up to 120°C.
Part no.: 635 FAG

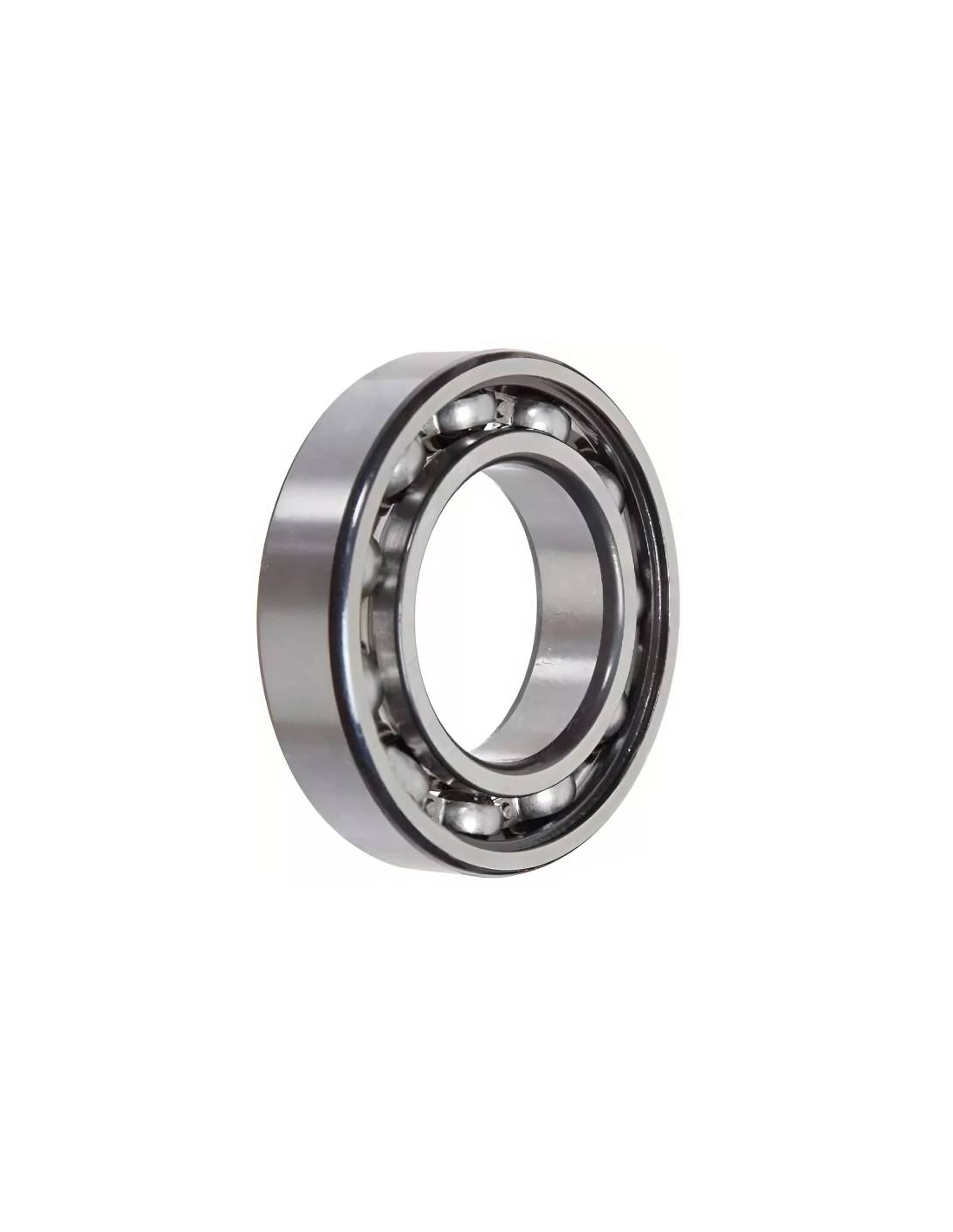

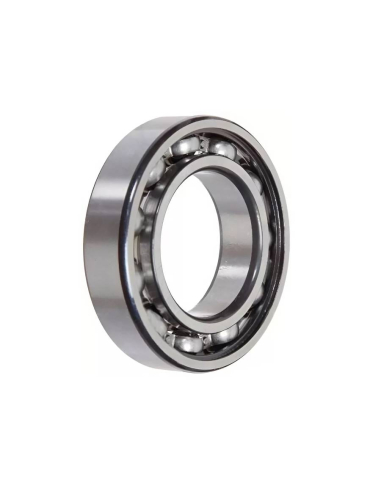

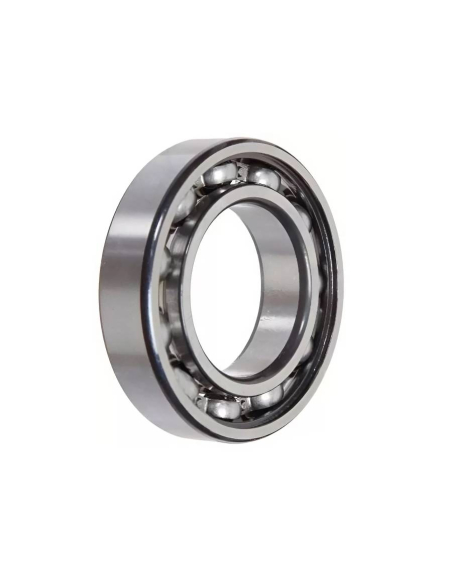

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Single row deep groove ball bearing open 635, dimensions 5x19x6mm, inner diameter 5mm, outer diameter 19mm, width 6mm. These bearings consist of solid inner and outer rings with a single row of balls, which enables them to support radial and axial loads in both directions. They are suitable for high speeds due to their low coefficient of friction. They can be lubricated with grease or oil, and their operating temperature can reach up to 120°C.
The alignment control of single row deep groove ball bearings is small, therefore the bearings must be aligned correctly.
The main dimensions of single row deep groove ball bearings correspond to DIN 625-1. Dimensional and form tolerances correspond to tolerance class PN, according to DIN 620.
Technical data:
- Manufacturer/Distributor: FAG
- Part no.: 635 FAG
- Material: Steel
- Dynamic load capacity, (Cr): 2600N
- Static load capacity, (Cor): 1100N
- Fatigue load limit, (Cur): 53N
- Rotation limit speed, (nG): 40000 1/min
- Weight: 0.008 Kg
Dimensions:
- Bore diameter (d): 5mm
- Outside diameter (D): 19mm
- Width, overall (T): 6mm
- Outer ring boss diameter (D1): 15.5mm
- Inner ring shoulder diameter (d1): 10,8mm
- Minimum chamfer dimensions (r): 0,3mm
Material for professional use, install in compliance with the regulations in force at the place of installation.
For further information you can download the technical data sheet by clicking on the "Attachments" tab
