Bearing 6003 17x35x10mm - FAG

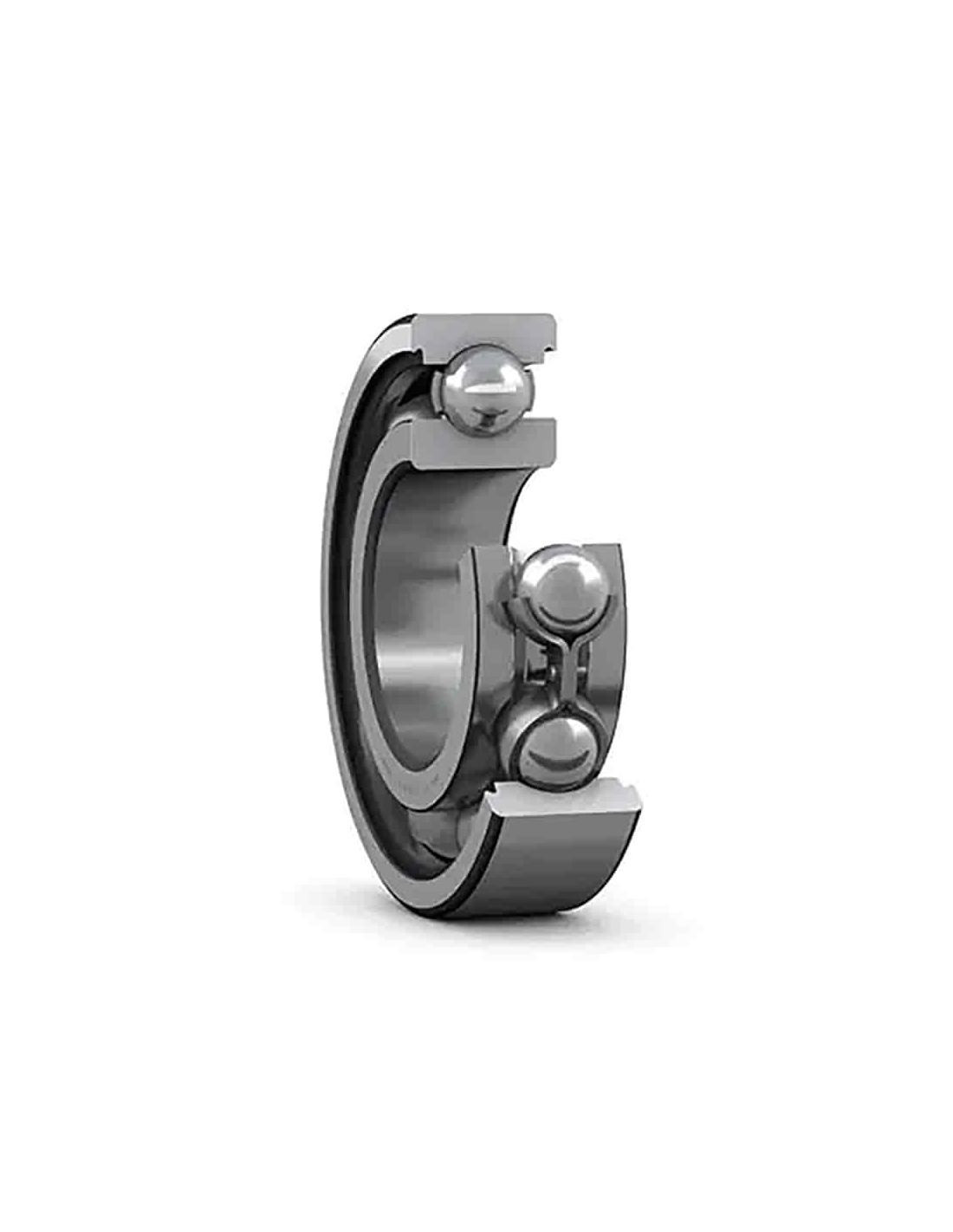

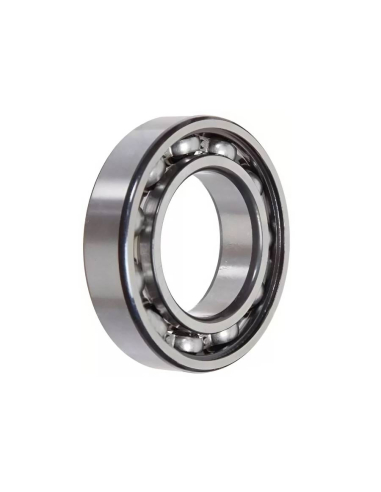

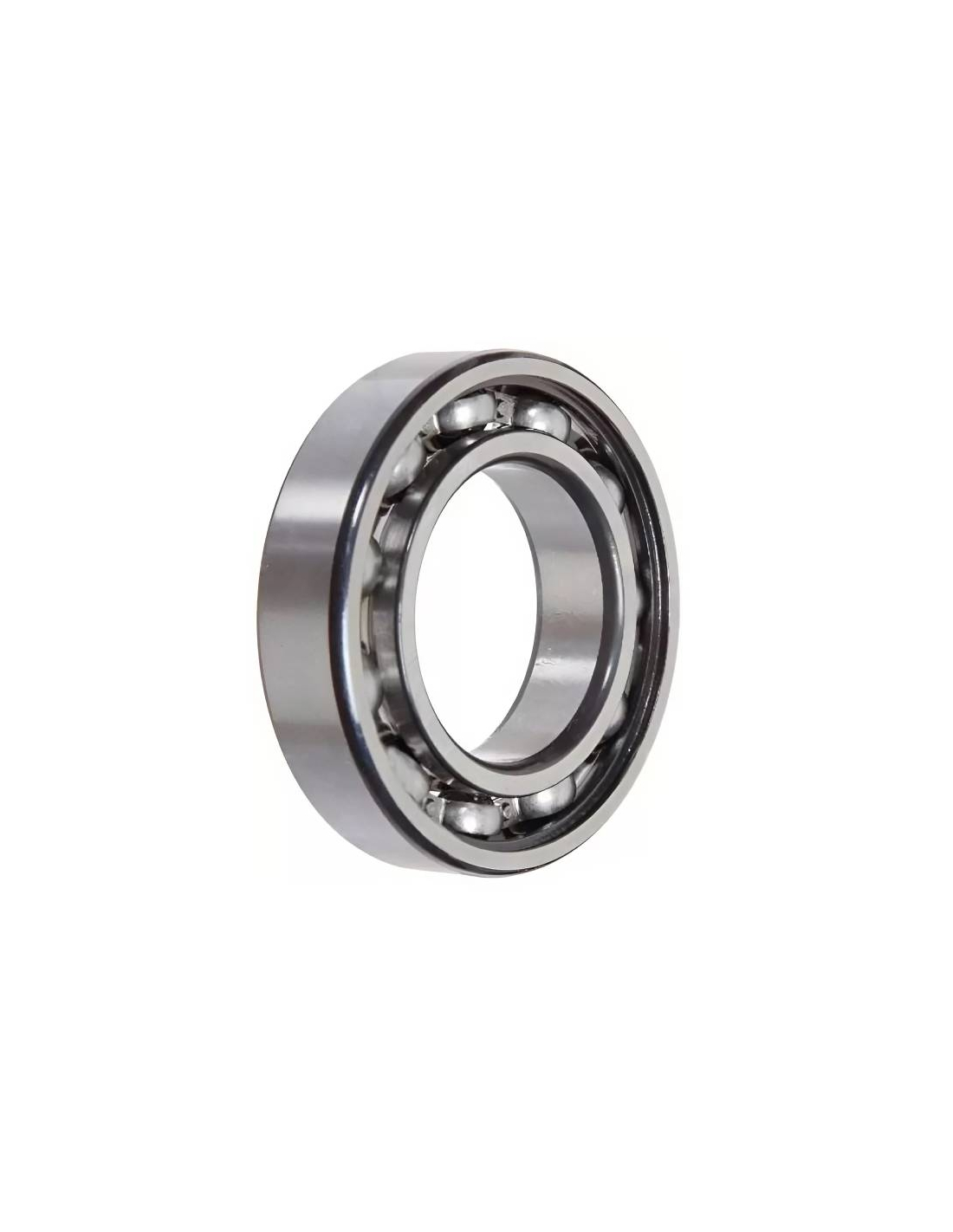

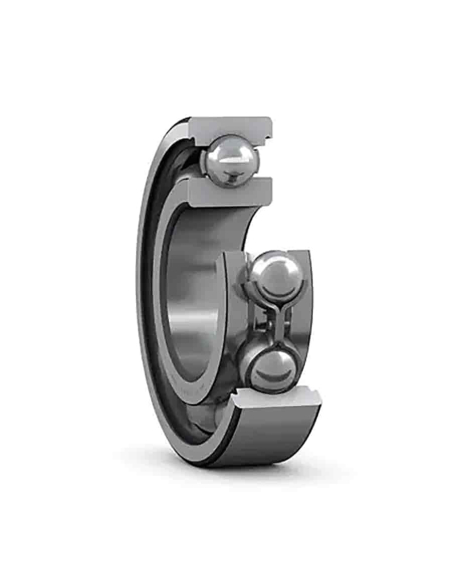

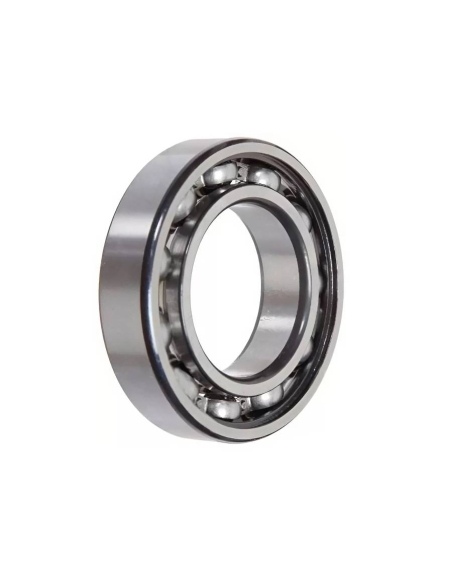

Open single-row deep groove ball bearing 6003 , dimensions 17x35x10mm, inner diameter 17mm, outer diameter 35mm, width 10mm. These bearings consist of solid inner and outer rings with a single row of balls, allowing them to withstand radial and axial loads in both directions. They are suitable for high rotational speeds thanks to their low coefficient of friction. They can be lubricated with grease or oil, and their operating temperature can reach up to 120°C.

The alignment adjustment of single-row deep groove ball bearings is limited, so the bearings must be well aligned.

The main dimensions of single-row deep groove ball bearings correspond to DIN 625-1. Dimensional and shape tolerances correspond to tolerance class PN, according to DIN 620.

Technical characteristics:

• Manufacturer/Distributor: FAG
• Reference: 6003 FAG
• Material: Steel
• Dynamic load capacity, (Cr) _: 6000N
• Static load capacity, (Cor) _: 3250N
• Fatigue load limit, (Cur) _: 157N
• Limiting rotation speed (nG): 28000 1/min
• Weight: 0.038 Kg

Dimensions:

• Hole diameter (d): 17mm
• Outer diameter (D): 35mm
• Width, total (T): 10mm
• Outer ring shoulder diameter (D1): 29.5mm
• Inner ring shoulder diameter (d1): 22.7mm
• Minimum chamfer measurements (r): 0.3mm

Professional use material, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Attachments" tab.
