Protection panel ECO-AC 1P+Nx20A - TOSCANO

€132.81 Tax included

€109.76 tax excl.

Protection panel for inverter output in photovoltaic installations. Protection of the single-phase alternating part.

The ECO-AC model incorporates protection against permanent and transient overvoltages, a 10kA circuit magnetothermic and a class A differential. Degree of protection IP65.

Reference: ECO-AC1N20A30T15-S

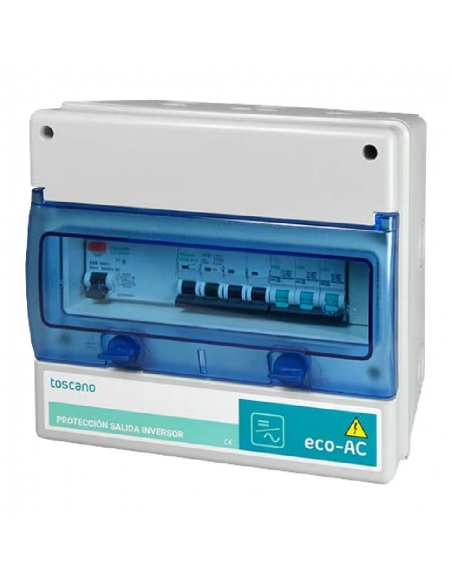

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Protection panel for the output of the inverter in photovoltaic installations that allows the protection of the single-phase line in the alternating current part.


The ECO-AC panels , already wired and ready for installation, protect the single-phase line since they only incorporate AC protection. They are designed for installations where it is desired to have separate AC and DC protections. The panel includes permanent and transient overvoltage protection, 10kA circuit magnetothermic and class A differential.



General characteristics:

  • Manufacturer: Toscano
  • Reference: ECO-AC1N20A30T15-S
  • Rated voltage (Un): 240Vac
  • Amperage: 1P+N 20A
  • Trigger voltage: >265VAC ± 2%
  • Nominal discharge current 8/20 (In): 6kA
  • current max. discharge (Imax): 12.5kA; 8/20
  • Protection level (Up): ≤ 1.5 kV
  • Response time (ta): According to UNE-EN 50550 standard
  • Differential: Class A / 30 mA / Alternating and pulsed current
  • Degree of protection: IP65
  • Operating temperature: -5º...+40 o C
  • Dimensions: 160 x 200 x 110mm


Connection:







For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Material for professional use, install in compliance with the regulations in force at the place of installation.
