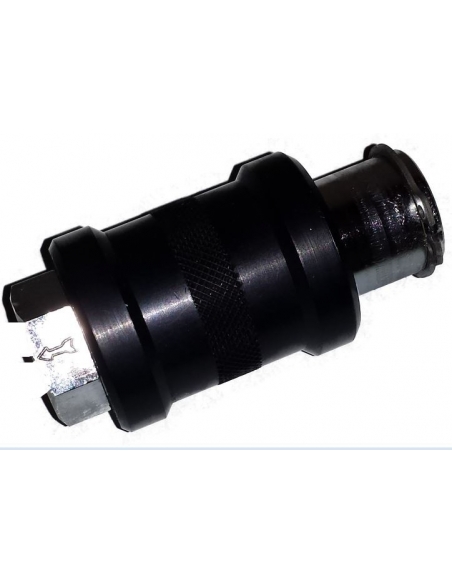

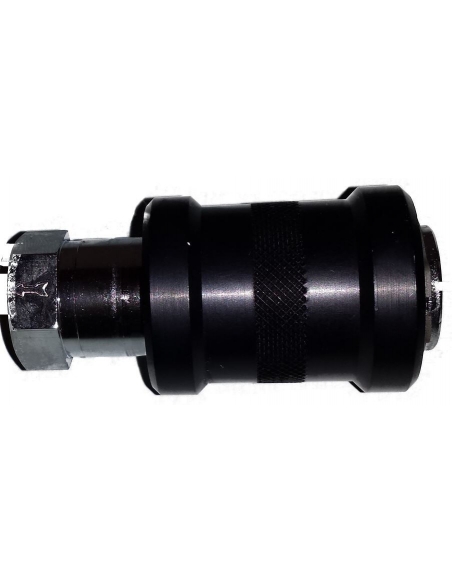

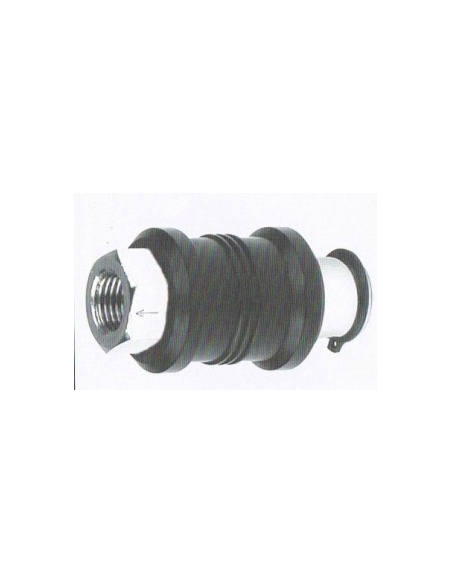

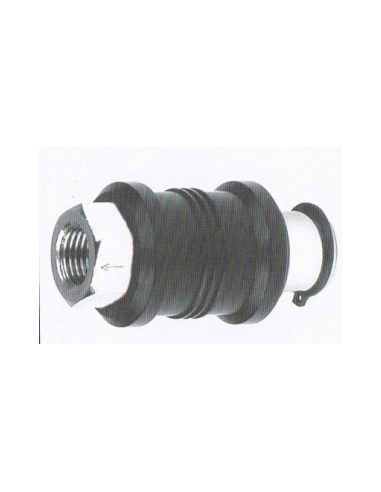

Valve cutting step 1/8 female 3-way - Metal Work

€9.43 Tax included

7.79 tax excl.

W0970050001

1/8 female step valve (cut),discharged (3-way).

Logotipo Metal Work
Reference: W0970050001
Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/8 female step valve ,shedding (3-way), frequently used as a circuit disconnector valve.

By pushing back the ring, the air supply is interrupted and the circuit is discharged, when the ring advances air supply to the circuit is established.

  • Manufacturer: Metal Work
  • Manufacturer reference: W0970050001 series VCS-1/8.
  • Operating pressure: 0 ÷ 10 bar (0 ÷ 1 MPa)
  • Operating temperature °C: –10 ÷ 80
  • Fluid: Filtered air with or without lubrication
  • Flow rate at 6.3 bar (0.63 Mpa ÷ 91 psi) ∆P 0.5 bar Nl/min: 430
  • Flow rate at 6.3 bar (0.63 Mpa ÷ 91psi) ∆P 1bar Nl/min: 630
  • Conductance C Nl/min · bar: 170
  • Critical ratio b bar/ba: 0.2

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

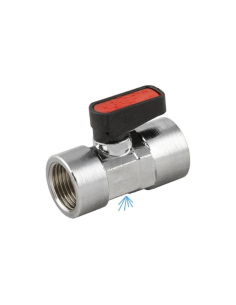

2- way 3/8 female ball valve with atmosphere exhaust GHILUX - Aignep | ADAJUSA | price
Cutting and unloading valves

3/8 female 2- way shut-off valve with exhaust - Aignep

Aignep
66003838
€8.00 (€6.61 tax excl.)
Shut-off valve or G3/8 female ball valve (ISO 228 compliant), 2- way , actuated by handle. It has exhaust to the atmosphere allowing the controlled release of the fluid. Made of chromed brass and handle made of fiberglass reinforced polyamide.Small valve for pneumatic applications of compressed air, tools, automation, food and beverages, plumbing, vacuum...
Valve with lever 1 1/4 female 2- way INOX cut-off - Aignep | ADAJUSA | price
Cutting and unloading valves

Valve with lever 1 1/4 female 2- way INOX cut-off - Aignep

Aignep
6067I114
€43.71 (€36.12 tax excl.)
Shut-off valve or G1 1/4 female, 2- way ball valve, lever operation. Body made of AISI 316 L STAINLESS steel and PVC maneuvering cam . Small valve for pneumatic applications of compressed air, tools, automation, food and beverages, plumbing, vacuum and inert gases, thermo-hydraulic sector. Series: GHINOX Reference: 6067I 1 1/4 Representative image for...

Customers who bought this product also bought:

Miniature relay 1 contact 24Vac 12A RN05-24AC | ADAJUSA : price Miniature relay 1 contact 24Vac 12A RN05-24AC | ADAJUSA : price 2
Solid-state and electromagnetic relays

Miniature relay 24Vac 1 contact 12A with luminous indication

TRACON
RN05-24AC
€5.82 (€4.81 tax excl.)
Miniature relay 24Vac, 1 changeover contact 12A with luminous LED relay status indication and test button . For general purpose and industrial applications, capable of handling medium loads.Relay with flat pin to be mounted on PCB or socket on DIN rail.The socket (base) for mounting this relay must be 1 contact. Part number: RN05-24AC Representative...

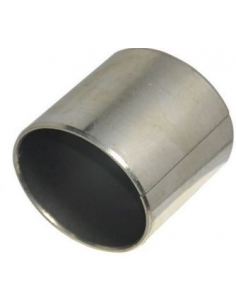

SF1 141620C plain bearing type PAP 0815 P10 PTFE - ADAJUSA
Friction cap PAP and PAF- P10 and P20

Friction cap SF1 141620C type PAP 1420 P10 - ISB

ISB
SF1141620C
€0.73 (€0.60 tax excl.)
Self-lubricating plain bearing SF1 14x16x20mm PAP P10, PTFE interior with a sheet steel base on which a thick porous tin/bronze layer is sintered.Used in hydraulic and mechanical cylinders, hydraulic vehicles, automobiles, motorcycles, agricultural machines, textile machines, printing machines, gymnastic apparatus and many other applications.Reference:...

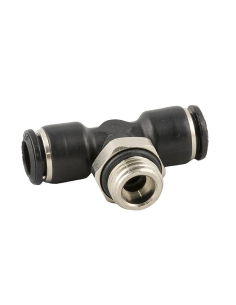

Central threaded swivel tee fitting 1/4 pipe 6 Series 55000 - Aignep| ADAJUSA
