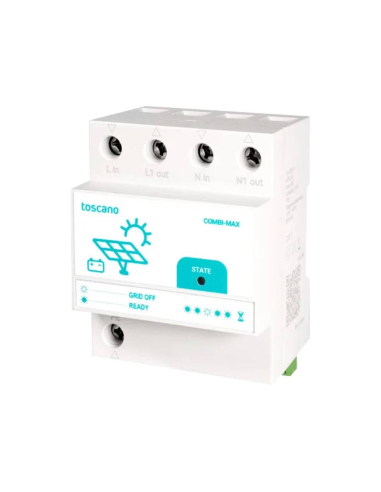

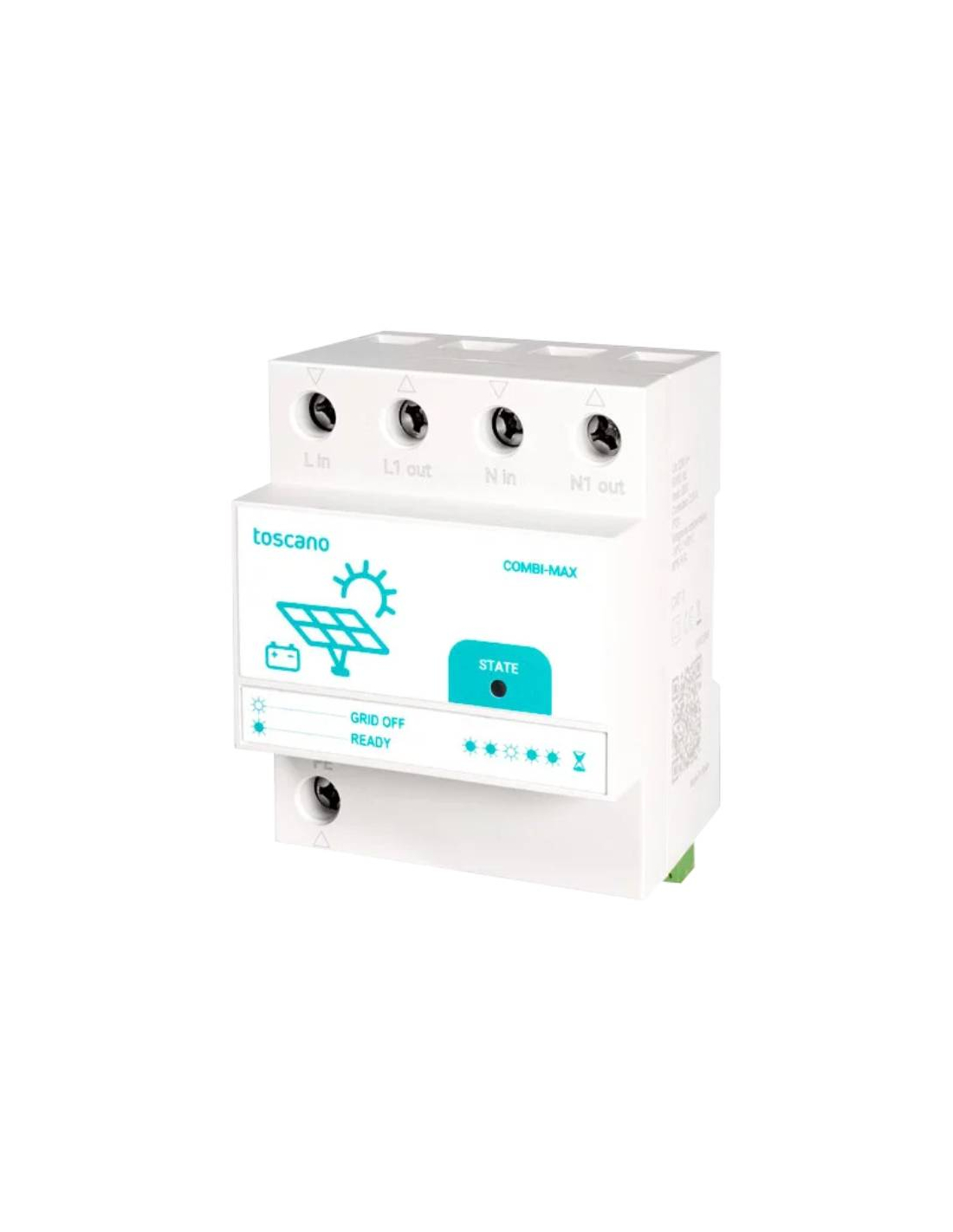

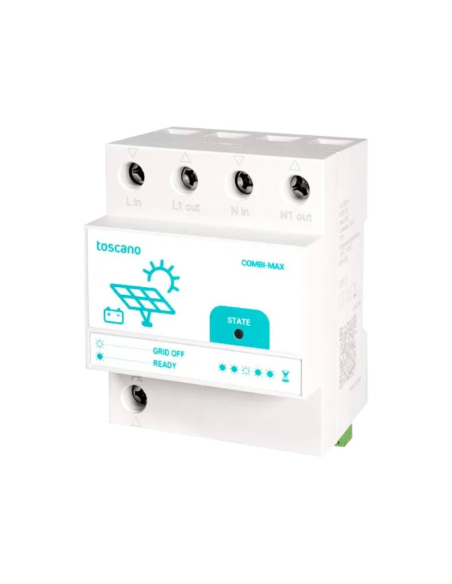

COMBI-MAX is a compact device for installations with solar panels where operation in backup mode is required; backup systems allow to maintain, from self-consumption, the energy supply in homes and facilities in case of power cuts or failures. The integration of these systems is of great utility and importance in any photovoltaic installation where autonomy, efficiency and profitability are sought.
These systems, also known as emergency systems or energy backup systems, allow maintaining the operation of critical and indispensable equipment in the event of power outages. They combine solar panels and batteries where the solar energy captured during the day is accumulated to be used later when it is needed, thus guaranteeing the electricity supply after its generation when solar production is not sufficient. But the operation of the batteries, i.e., being able to use the energy accumulated in them is only possible through the inverter, so if there is a failure in the power grid, the inverter and the battery will stop working and the use of the accumulated energy will not be effective.
It is in these cases when COMBI-MAX acts; it controls uninterruptedly the grid voltage and when it detects a failure or power outage in the electrical grid, it disconnects the photovoltaic installation from the main grid and sends a signal to the inverter to activate the Backup operation mode. This equipment detects the incident and automatically isolates the photovoltaic installation from the main grid, as required by the ITC-40 standard, switching the installation to Backup mode and making it totally self-sufficient. It is the energy accumulated in the batteries that will provide 100% of the energy to the installation.
COMBI-MAX allows the power supply and operation of all loads or only critical loads, by allowing the operation in total Backup or Backup mode for critical loads
The reconnection to the main grid will occur once the voltage is restored and remains within the normal range for at least three minutes, automatically deactivates the inverter's backup mode and reconnects the system to the grid.
Features:
- Manufacturer: Toscano
- Part number: COMBI-MAX
- Code: 10005140
- Control and protection for Backup systems
- Backup mode activation: Backup mode activation output (total/critical loads) to inverter
- Island operation: Disconnects the self-consumption system from the grid
- Union Neutral-Earth: avoids floating neutral as indicated in ITCBT-08
- Double control output
- Huawei inverter models tested: SUN2000-2KTL-L1, SUN2000-3KTL-L1, SUN2000-3.68KTL-L1, SUN2000-4KTL-L1, SUN2000-4.6KTL-L1, SUN2000-5KTL-L1, SUN2000-6KTL-L1, SUN2000-8K-LC0, SUN2000-10K-LC0, SUN2000-3K-LB0, SUN2000-3.68K-LB0, SUN2000-4K-LB0, SUN2000-4.6K-LB0, SUN2000-5K-LB0, SUN2000-6K-LB0, SUN2000-6K-LB0
- Verified Fronius GEN24 Plus inverter models: Primo GEN24 3.0 Plus, Primo GEN24 3.6 Plus, Primo GEN24 4.0 Plus, Primo GEN24 4.6 Plus, Primo GEN24 5.0 Plus, Primo GEN24 6.0 Plus, Primo GEN24 6.0 Plus, Symo GEN24 6.0 Plus (*), Symo GEN24 8.0 Plus (*), Symo GEN24 10.0 Plus (*)
- Verified Kostal Plenticore G3 inverter models: S-4 kW, S-5.5 kW, S-7 kW, M-8.5 kW, M-10 kW, M-12.5 kW, L-15 kW, L-17.5 kW, L- 20 kW
- Verified Growatt inverter models: MIN2500TL-XH, MIN3000TL-XH, MIN3600TL-XH, MIN4200TL-XH, MIN4600TL-XH, MIN5000TL-XH, MIN6000TL-XH
- Other hybrid inverters that have the option to go into island mode via a power free contact should work with the backup systems, but have not yet been verified. It should be noted that not all inverters on the market support island mode. In addition, there are other inverters that already have their own backup output.
- Microinverters: has not been verified.
(*) In case of three-phase installation, a TETRAPOLAR contactor with a capacity equal to or greater than the power of the installation is required.
Technical specifications
- Nominal voltage: 230Vac, 50/60Hz
- Maximum power: 9kW
- Power consumption: 2,5W
- Ambient conditions: -10ºC to +55ºC / 80% RH
- Degree of protection: IP20
- Mounting: DIN rail
- Number of modules: 4
Connection
For further information, you can download the data sheet by clicking on the "Attachments" tab.
