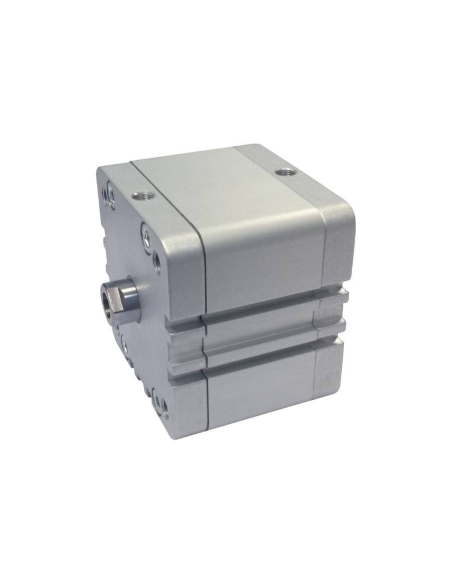

Compact pneumatic cylinder with a diameter of 63 mm and a stroke of 15 mm, double-acting and prepared for magnetic detection. The pneumatic cylinder is manufactured in accordance with ISO 21287, anodized aluminum body, chrome-plated steel female threaded rod, and rod and piston seals in polyurethane . ATEX certified pneumatic cylinders intended for use in explosive atmospheres category 2 - II 2GD h T6.
The cylinder body is made of anodized aluminum with end caps of the same material. On all sides of the cylinder body, there are longitudinal slots for mounting magnetic detectors. They have a wide range of anchors and fixings, which provide numerous fixing points.
Technical characteristics of the pneumatic cylinder:
- Manufacturer: Aignep
- Manufacturer reference: WF0630015
- Diameter and stroke: Ø63x15 mm
- Type: Double acting pneumatic cylinder
- Fluid Type: Filtered compressed air lubricated or non-lubricated
- Manufacturing standard: ISO 21287
- Operating pressure: 1 - 10 bar
- Rod and piston seals: Polyurethane
- Construction Type: Chromed Steel Stem
- Air connection thread size: M8
- Stem diameter: 16mm
- Stem thread: G1/8
- Operating temperature: 0ºC to +80ºC (-20ºC with dry air)
- ATEX cylinders: - II 2 GD c T6 -20°C
The cylinder is prepared for the mounting of magnetic detectors and different accessories. The supply only includes the cylinder, the rest of the accessories must be ordered separately.
Other races and executions can be supplied upon request.
Professional use material, install in compliance with the regulations in force at the installation site.
For further information you can download the technical sheet by clicking on the "Attached Files" tab.
