Compact pneumatic cylinder 25x50mm double acting male rod ISO 21287 - Mindman

Name: Compact pneumatic cylinder 25x50mm double acting male rod ISO 21287 - Mindman
Brand: Mindman
SKU: MCJI110250050
Price: 53.5667 EUR
Availability: PreOrder

€53.57 Tax included

€44.27 tax excl.

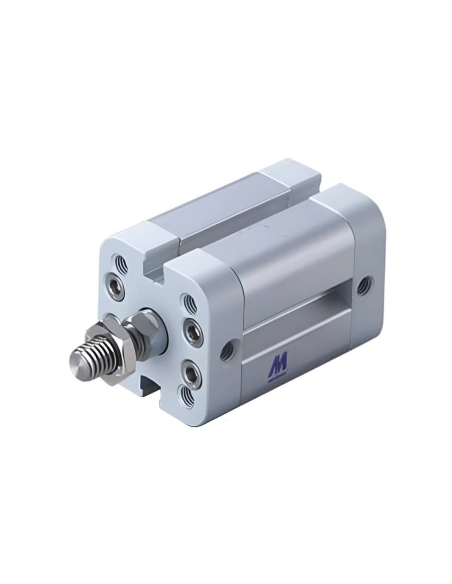

Compact pneumatic cylinder Ø25 stroke 50mm, MCJI series, double magnetic effect, rod with male thread. Manufactured according to ISO 21287. Extruded aluminium body with slots for magnetic detectors and chrome-plated steel rod.

Reference: MCJI-11-25-50

WF_SCHEMA

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Compact pneumatic cylinder with 25 mm diameter and 50 mm stroke, double-acting and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 21287, with an aluminium body and a chrome-plated steel rod. Rod with male thread and NBR seals.

The cylinder body is made of extruded aluminium and has end caps made of the same material. On all sides of the cylinder body there are longitudinal slots for mounting magnetic detectors. It is available in a wide variety of versions and has a wide range of accessories for mounting.

Technical characteristics of the pneumatic cylinder:

Manufacturer: Mindman
Manufacturer reference: MCJI-11-25-50
Diameter and stroke: Ø25x50 mm
Type: Double acting pneumatic cylinder
Fluid Type: Air with or without lubrication
Manufacturing standard: ISO 21287
Maximum working pressure: 10 bar (1 Mpa)
Minimum operating pressure: 0.5 bar (0.05 Mpa)
Type of seals: NBR
Operating temperature: -5ºC to +60ºC
Construction Type: Chromed Steel Stem
Air connection thread size: M5
Stem diameter: 10mm
Theoretical maximum force that the cylinder can develop when pushing: See attached table
Air consumption: See attached table

Dimensions of compact ISO adajusa cylinders Mounting accessories for compact ISO cylinders Adajusa Maximum theoretical force The cylinder is prepared for the mounting of magnetic detectors and different accessories. The supply only includes the cylinder, the rest of the accessories must be ordered separately.

Installation of sensor on compact cylinder Adajusa

Other races and executions can be supplied upon request.

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

ISO_Compact_Cylinders_ Midman

Catalog_Compact_Cylinders_ISO_ Midman

Download (1.2MB)
