Compact guided pneumatic cylinder 25x50mm double acting CG01 Series - Aignep

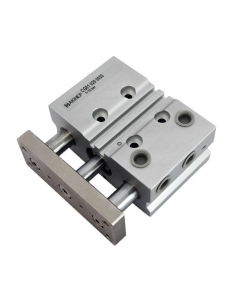

Compact double-guided pneumatic cylinder , 25 mm bore and 50 mm stroke, double magnetic effect. They are designed for applications where space is limited and a cylinder with internal guides and a robust but compact structure is required. Guiding solution using bronze bushings coupled to the guide rods.


These cylinders are built with high quality materials, aluminium alloy body and steel rod, which gives them high strength and reliability. In addition, their design includes NBR seals and cushioning, which ensures efficient operation and a long service life. They are characterized by the possibility of fixing on several sides. by different methods, pneumatic feeding in both sides, Dual sensor slots on both top and bottom side.


They are ideal for automated systems, manipulators and robotics, where a compact guide is needed to maintain stem alignment and stable movement.

The cylinder is prepared for the mounting of magnetic detectors and different accessories. The supply only includes the double-acting cylinder, the rest of the accessories must be ordered separately. Option with ball bearings on request.

Aignep brand CG01 series cylinders are compatible and replaceable with those of the SMC brand and other brands such as AirTac, Airon, Mindman , Metal Work .




Technical characteristics of the pneumatic cylinder:

• Manufacturer: Aignep
• Manufacturer reference: CG010250050
• Diameter and stroke: Ø25x50 mm
• Type: Double acting compact guided pneumatic cylinder
• Fluid Type: Compressed Air (lubrication not required)
• Operating pressure: 1 - 10 bar
• Seals and shock absorbers: NBR
• Construction Type: Steel Stem
• Air connection thread: 1/8
• Stem diameter: 12mm
• Operating temperature: -5ºC (no freezing) to +60ºC
• Piston speed range: 50 - 500 mm/sec
• Maximum permissible working lateral load (W): 46N
• Maximum allowable torque (T): 1.47 Nm
• Anti-rotation accuracy (θ): ± 0.07°
• Weight: 1300g

Graphics for use as a stop for CG01 cylinders (Ø 12 ÷ 32)








Graphics for use as a lift for CG01 cylinders (Ø 12 ÷ 32)








Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.
