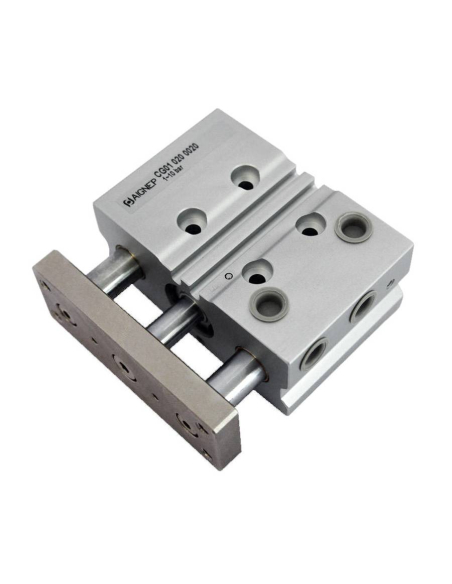

Compact guided pneumatic cylinder 20x150mm double acting CG01 Series - Aignep

Compact double-guided pneumatic cylinder , 20 mm bore and 150 mm stroke, with double magnetic action. Designed for applications where space is limited and a cylinder with internal guides and a robust yet compact structure is required. Guidance solution using bronze bushings coupled to the guide rods.


These cylinders are constructed of high-quality materials, with an aluminum alloy body and a stainless steel rod, giving them high strength and reliability. Furthermore, their design includes NBR seals and cushioning, ensuring efficient operation and a long service life. They are characterized by the possibility of mounting on multiple faces. by different methods, pneumatic feeding in both sides, dual sensor slots , both on the top and bottom sides.


They are ideal for automated systems, manipulators and robotics, where a compact guide is needed to maintain stem alignment and stable movement.

The cylinder is designed for mounting magnetic detectors and various accessories. The delivery includes only the double-acting cylinder; all other accessories must be ordered separately. Optional ball bearings available upon request.

The CG01 series cylinders from the Aignep brand are compatible and replaceable with those from the SMC brand and other brands such as AirTac, Airon, Mindman , Metal Work .




Technical characteristics of the pneumatic cylinder:

• Manufacturer: Aignep
• Manufacturer reference: CG010200150
• Diameter and stroke: Ø20x150 mm
• Type: Double-acting guided compact pneumatic cylinder
• Fluid type: Compressed air (lubrication not required)
• Operating pressure: 1 - 10 bar
• Seals and shock absorbers: NBR
• Construction type: Stainless steel stem
• Air connection thread: 1/8
• Stem diameter: 10mm
• Operating temperature: -5ºC (no freezing) to +60ºC
• Piston speed range: 50 - 500 mm/sec
• Maximum allowable working lateral load (W): 66N
• Maximum permissible torque (T): 1.81 Nm
• Anti-rotation accuracy (θ): ± 0.08°
• Weight: 1800g

Graphics for use as a stop for CG01 cylinders (Ø 12 ÷ 32)








Graphics for use as a lift for CG01 cylinders (Ø 12 ÷ 32)








Professional use material, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Attachments" tab.
