Permanent capacitor 7uF 450Vac

€4.17 Tax included

3.45 tax excl.

993CBB60007

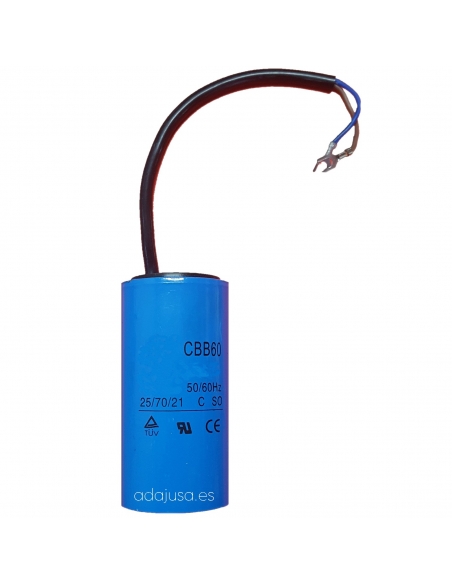

Permanent capacitor 7F/450Vac for electric motors, gear condenser, with metallic polypropylene dielectric (dry construction). The external construction of the capacitors is in cylindrical container with PVC cover and electrical connection by hose.

Reference: CBB60 7uF 450Vac

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product

Privacy

Shipments

Returns

Description
Frequently questions

Permanent condenser with non-impregnated metallized polypropylene dielectric (dry construction), manufactured in cylindrical and PVC-coated container, and electrical connection by hose.

The main application of this type of capacitors is in single-phase motors, and can also be used in switching, damping and general applications.

Technical details:

Manufacturer/Supplier: Open
Reference: CBB60 7uF 450Vac
Application: Permanent capacitor.
Type: Polypropylene.
Capacity: 7uF.
Maximum rated voltage: 450Vac.
Frequency: 50/60Hz.
Working temperature range: -25o.. +85oC
Nominal tolerance: ±5%.
Dissipation factor (20oC, 120Hz): Tg δ ≤ 0.002.
Insulation resistance: >10000M.x.F.
Connection type: Electric hose with terminals.
Dimensions: 35x60mm

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question

Buenas viendo este producto, mi duda es es adecuado para un motor de 1:6 CV y de tensión 125v??
Gracias

Answer

Estimado cliente,

En relación con su consulta sobre el condensador permanente 7µF 450Vac para un motor de aproximadamente 1,6 CV y tensión de 125 V, le indicamos:

El condensador de nuestra web está diseñado como condensador de marcha para motores monofásicos hasta 450Vac, por lo que la tensión de 125 V no es un problema para este modelo:
https://adajusa.es/es/condensadores-para-motores-electricos/5946-condensador-permanente-7uf-450vac-8435532859468.html Adajusa
Sin embargo, la capacidad de 7µF se utiliza normalmente en motores de muy baja potencia (mucho menores de 1,6 CV). Para potencias cercanas a 1,6 CV, lo habitual es que el fabricante indique un valor de capacidad sensiblemente mayor.

Por este motivo, no podemos asegurarle que este condensador sea adecuado para su motor. Lo correcto es montar siempre la capacidad (µF) indicada por el fabricante del motor o la que aparezca en la placa de características / condensador original. Le recomendamos comprobar esos datos y elegir en nuestra web el condensador cuya capacidad y tipo coincidan exactamente.

Todos nuestros productos son de uso profesional y requieren instalación por personal cualificado. Quedamos a su disposición para cualquier consulta. Un saludo, Adajusa.

Ricardo Sánchez on 11/20/2025 22:03:05
