Permanent capacitor 50uF 450Vac M8
Permanent capacitor 50uF 450Vac M8

Permanent capacitor 50uF 450Vac M8

€5.38 Tax included

€4.45 tax excl.

CBBV 50uF450V

Permanent capacitor 50μF/450Vac for electric motors, power capacitor. The external construction of the condensers is in cylindrical container with PVC sheath, electrical connection by hose, mechanical installation by asparagus and nut M8x1,25.

reference: CBBV60 50uF 450Vac

Representative image for illustrative purposes, the article supplied corresponds to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns

Permanent condenser with dielectric of non-impregnated metallic polypropylene (dry construction), manufactured in cylindrical container and coated with PVC, and electrical connection by hose.
Mechanical assembly by threaded asparagus of M8x1,25mm and nut.

The main application of this type of capacitors is in single-phase motors, being able to be used equally in switching circuits, damping and general applications.

specifications:

  • Manufacturer/Supplier: OMU/Mixwill
  • Reference: CBBV 50uF 450Vac
  • Application: Permanent capacitor
  • Type: Polypropylene
  • Capacity: 50uF
  • Maximum rated voltage: 450Vac
  • Frequency: 50/60Hz.
  • Working temperature range: -40º.. +70ºC
  • Nominal tolerance:
    • J: ±5%
    • K:±10%
  • Dissipation factor (20ºC, 50/60Hz): Tg δ ≤ 0.004
  • Insulation resistance: >2000MΩxμF (20ºC, 500Vdc)
  • Test voltage: 1.75A 2s; 2000Vac 10s
  • Electrical endurance:
    • 400Vac: 10000h
    • 450Vac: 3000h
    • 500Vac: 1000h
  • Connection type: cable
  • Dimensions: Ø50x90mm
  • Security protection class: P0/P2
  • Fastening: Threaded vastago and M8x1,25mm nut
  • Regulations: EN60252

Material for professional use, install respecting the regulations in force at the place of installation. Before its installation or handling, it is possible to make sure that the electrical voltage is disconnected and that the capacitor is discharged.

Questions

Question
hola. ¿ Entonces el condensador permanente 50uF 450Vac M8 sería el que me vendría bien para un motor trifásico de 1 cv conectado a una red monofásica ?
Answer
Buenos días.

Un motor trifásico no lleva condensdores, otra cosa diferente es que disponga de un motor trifásico y lo quiera transformar en monofásico, el fabricante de los motores no recomienda ese tipo de cambios debido  a que en  un motor monofásico  circula más intensidad por las bobinas y éstas están diseñadas para soportar esa intensidad. La intensidad nominal es un motor trifásico de 1 CV  1500 rpm  230/ 400 es de
  • Revoluciones: 1500 (1400).
  • Potencia: 0,75 Kw (1 CV).
  • Intensidad: 3,48/2,01 A.
en un motor trifásico de las mismas características será:

  • Tensión: 230 Vac. 50Hz.
  • Potencia: 0,75Kw (1CV).
  • Par de arranque medio.
  • Número de polos: 4 (1500 rpm).
  • Intensidad nominal (In): 5,05A
  • Intensidad de arranque (Ia): 20
  • Revoluciones: 1410 rpm.

Por otra parte, no realizamos cálculos para ese tipo de modificaciones.

Saludos

Adajusa
Jose Mari on 06/28/2023 17:01:37

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

70uF 450Vac permanent capacitor with CBB60 terminals adajusa
Capacitors for electric motors

Permanent capacitor 70uF 450Vac with terminals

OMU System
CBBS 70uF450V
€6.91 (€5.71 tax excl.)
Permanent capacitor 70F/450Vac for electric motors, power capacitor. The external construction of the capacitors is in cylindrical container with PVC cover and electrical connection by terminals. Mechanical fixation by threaded shaft and M8 nut. reference: CBBS 70uF 450VacRepresentative image for illustrative purposes, the supplied article is subject to...
Starter capacitor with terminals adajusa
Capacitors for electric motors

Starter capacitor 160-200uF 330Vac with terminals

OMU System
CDI 160-200uF
€9.91 (€8.19 tax excl.)
Starter capacitor 160-200oF/330Vac type CD60,for single-phase electric motors, with PVC cover and terminal connection. This type of capacitor has been designed exclusively for use as starter capacitors in single-phase electric motors. reference: CDI 160-200 F/330VacRepresentative image for illustrative purposes, the supplied article is subject to the...
40uF 450Vac permanent capacitor with CBB60 terminals adajusa
Capacitors for electric motors

Permanent capacitor 40uF 450Vac with terminals

OMU System
CBBS 40uF450V
€4.95 (€4.09 tax excl.)
Permanent capacitor 40F/450Vac for electric motors, power capacitor. The external construction of the capacitors is in cylindrical container with PVC cover and electrical connection by terminals. Mechanical fixation by threaded shaft and M8 nut. reference: CBBS 40uF 450VacRepresentative image for illustrative purposes, the supplied article is subject to...
Single-phase motor starter capacitor 75uF 250Vac | ADAJUSA
Capacitors for electric motors

copy of Starter capacitor 75uF 250Vac

Generico-OP
CD60-F 75uF-250Vac
€9.08 (€7.50 tax excl.)
75μF/250Vac Ctarter capacitor type CD60 , for single-phase electric motors, with PVC sheath and connection via electrical hose. This type of capacitor has been designed exclusively for use as starting capacitors in single-phase electric motors. Reference: CD60-F 75uF 250VacRepresentative image for illustrative purposes, the item supplied will correspond...
12uF 450Vac permanent capacitor with CBB60 terminals adajusa
Capacitors for electric motors

Permanent capacitor 12uF 450Vac with terminals

OMU System
CBBS 12uF450V
€3.01 (€2.49 tax excl.)
Permanent capacitor 12oF/450Vac for electric motors, power capacitor. The external construction of the capacitors is in cylindrical container with PVC cover and electrical connection by terminals. Mechanical fixation by threaded shaft and M8 nut. Reference: CBBS 12uF 450VacRepresentative image for illustrative purposes, the supplied article is subject...

Customers who bought this product also bought:

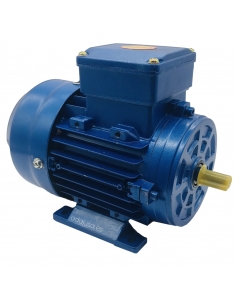

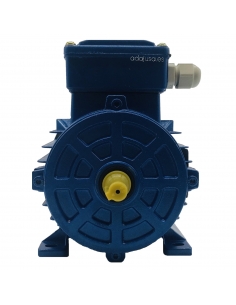

Three-phase motor 0.18Kw/0.25CV 230/400V 3000 rpm B3 foot flange Three-phase motor 0.18Kw/0.25CV 230/400V 3000 rpm B3 foot flange 2
