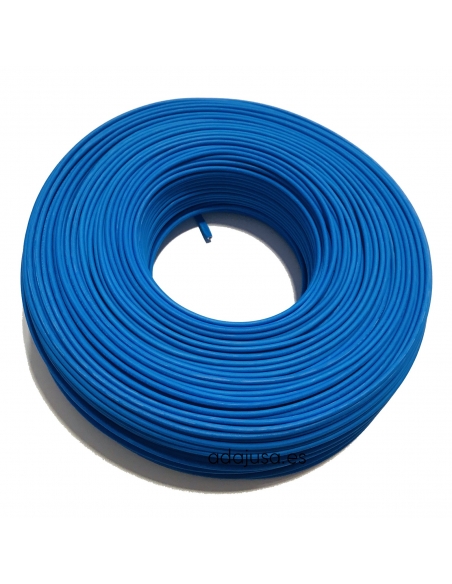

10mm² section unipolar flexible cable , halogen-free, Blue color. Manufactured by Top Cable . This cable has been specially designed for installations where a flexible cable is required for signaling and control and electrical installations.
The H07Z1-K (AS) series is halogen-free, so it can be used in public premises installations, such as: hospitals, schools, museums, airports, bus stations, and shops in general.
Manufactured with a design that complies with CPR regulations (EN 50575).
Price and supply per meter
Material cut to size, no return or cancellation of the order is allowed
Technical characteristics:
- Manufacturer: Top Cable .
- Series: ToxFree ZH.
- Type: H07Z1-K (AS).
- Conductor: electrolytic copper class 5 (flexible) according to UNE-UN 60228.
- Isolation : Extra-slip fireproof polyolefin, halogen-free and with low emission of smoke and corrosive gases in the event of fire.
- Nominal section: 10mm².
- Color: Blue (RAL 5015).
- Rated voltage: 450/750V.
- Voltage drop (V/A x km): 4.58.
- Thermal Characteristics:
- Temp. driver maximum: 70ºC.
- Temp. maximum short circuit: 160ºC (maximum 5 s).
- Fire characteristics:
- Flame retardant according to UNE-EN 60332-1 and IEC 60332-1.
- CPR fire ratio: E according to EN 50575 standard.
- Outer diameter: 6mm.
- Bending radius: 5 x outer diameter.
- Resistant to acceptable chemical attacks.
- Presence of water: AD3 spray.
- Installation conditions: piped.
- Design: According to CPR standard (EN 50575).
- Reference standard: UNE-EN 50525-2-31 / IEC 60227-3
- ITC and certifications: ITC: 9/20/26/27/29/30/31/34 CE SEC HAR AENOR RoHS certificates.
- Applications:
- Wiring in electrical panels.
- Home interiors.
- Places of public attendance.
- Weight: 0.106 kg/meter.
Material for professional use, install in compliance with the regulations in force at the installation site.
