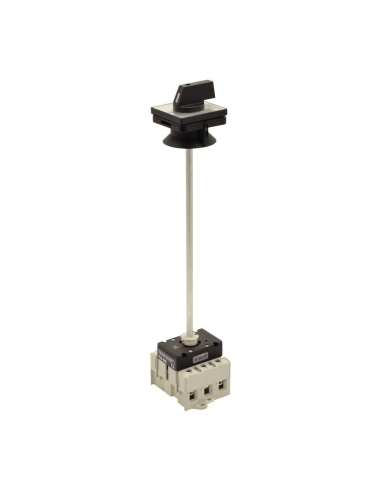

Three-phase 3-pole 63A ON-OFF Switch disconnector with black handle at the bottom of the cabinet

€41.09 Tax included

€33.96 tax excl.

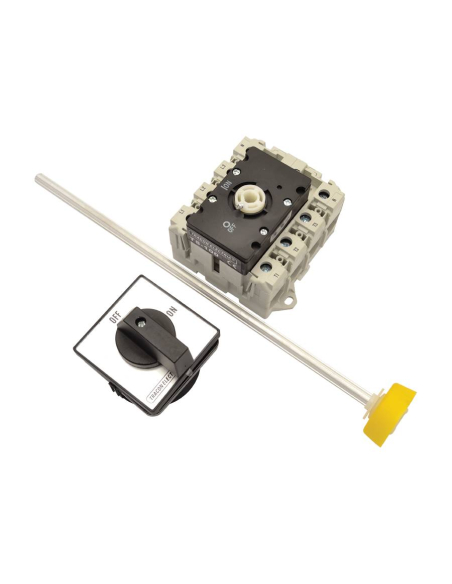

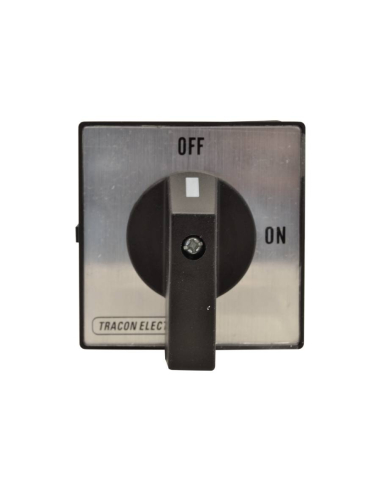

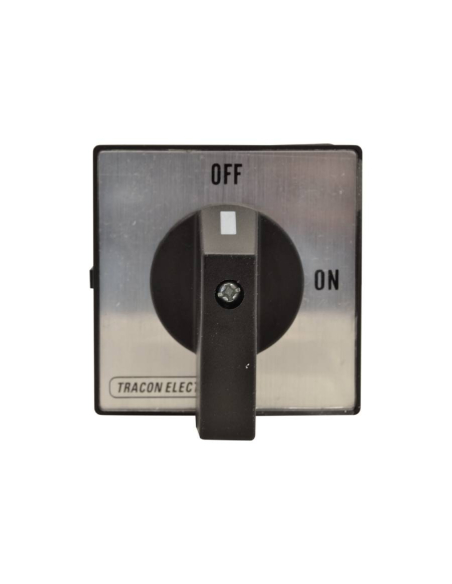

Rotary switch, cabinet bottom mounting, 3-pole 63A main switch, 90º rotary control, with two positions 0-1. Front plate size 64x64mm in grey colour and handle in black colour. union shaft length 150mm.

Suitable for switching on/off and disconnecting electrical circuits, can be used as a motor switch, main switch, disconnector or as a safety switch. Maximum motor power 18.5kW.


Reference: TS-63/3K



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase ON-OFF Switch disconnector , 3 poles 63A for inductive loads (electric motors) and general control, mounted in the back of the cabinet . 90º rotary control with two positions 0-1. Front plate size 64x64mm in grey colour and handle in black colour . This switch can start motors up to a maximum power of 18.5kW 400Vac.

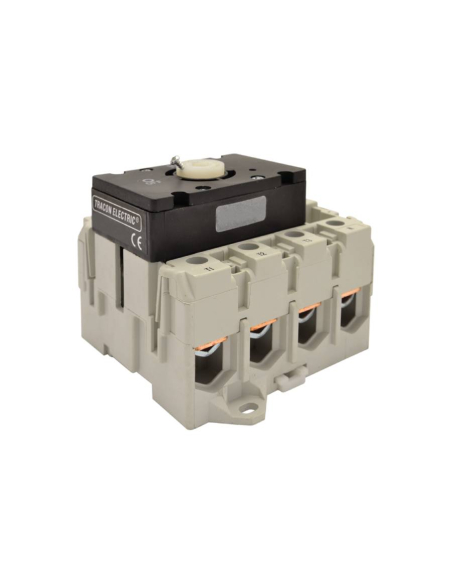

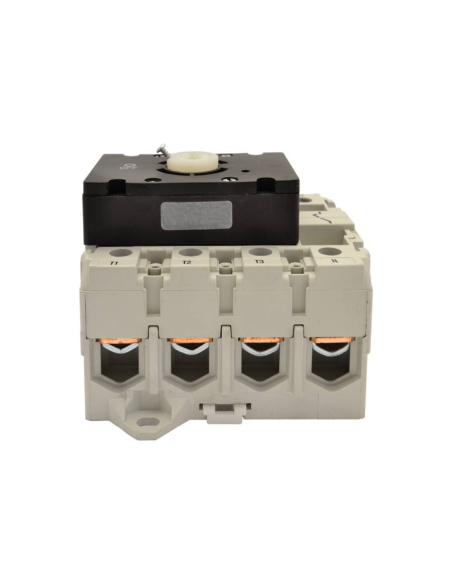

Switch with double interrupting contacts, switching speed independent of manual operation, active parts are protected against accidental contact and self-extinguishing distribution board (UL94-V0) with high mechanical resistance of insulating material. Mounting on cabinet bottom, the back can be fixed by screws or 35/7.5 mm DIN rail according to EN 50022 standard.

This series of rotary switches have been manufactured in accordance with EN 60947-1, EN 60947-3, EN 62321 standards, which allows them to meet all safety requirements.




Technical characteristics:
  • Manufacturer/Supplier: TRACON
  • Reference: TS-63/3K
  • Number of poles: 3
  • Supply voltage: 360-440V
  • Rated insulation voltage: 690V
  • Nominal intensity: 63A
  • Nominal operating power at AC-3, 400V: 18.5kW
  • Rated operating power at AC-23A, 400V: 22kW
  • Execution as main switch: Yes
  • Execution as maintenance/repair switch: No
  • Execution as safety switch: No
  • union axis: 150mm
  • Number of maneuvers/hour: 60
  • Mechanical durability: 150,000 maneuvers
  • Electrical durability: 100,000 operations
  • Ambient temperature: -5 to +55ºC
  • Protection class: IP42







L=61mm; A = 64mm; B=50mm; a = 64mm; d = 48mm; c = 4.2mm; x = 25mm ; y = 70mm






Professional use material, install in compliance with the regulations in force at the place of installation.
