Switch disconnector 4 poles red 25A cabinet bottom axis 185mm - Giovenzana
Switch disconnector 4 poles red 25A cabinet bottom axis 185mm - Giovenzana
Switch disconnector 4 poles red 25A cabinet bottom axis 185mm - Giovenzana

Switch disconnector 4 poles red 25A cabinet bottom axis 185mm - Giovenzana

€23.63 Tax included

€19.53 tax excl.

4-pole disconnector switch (tetrapolar) 25a for inductive loads (Electric motors) and general control. Mounting bottom of cabinet on din-rail, and rotary control 90º, with two positions 0-1. Faceplate with dimensions of 67x67mm, in yellow and lever in red. Possibility of blocking by padlocks. Manufactured according to the strictest European standards, which allows to meet the requirements in matters of safety.
Suitable for interruption, connection and switching of electrical circuits, as well as direct start of motors and main switch in machines.

Suitable up to 11kw.

185mm axle

Reference: GISE163004B67R1

Esquema interruptor 4 polos


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.



Disconnector switch 4 poles (tetrapolar) 25a for inductive loads (Electric motors) and general control. Mounting bottom of cabinet and rotary control 90º, with two positions 0-1. Front plate of 67x67mm mounting on panel, in yellow and lever in red. Possibility of locking by padlock.

This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting cabinet bottom on din-rail, IP-20 protection grade in terminals, self-cleaning contacts and indelible laser marking. Body made of self-extinguishing material UL94 VO.

This 4-pole switch is suitable up to 11kw connected to 400Vac.

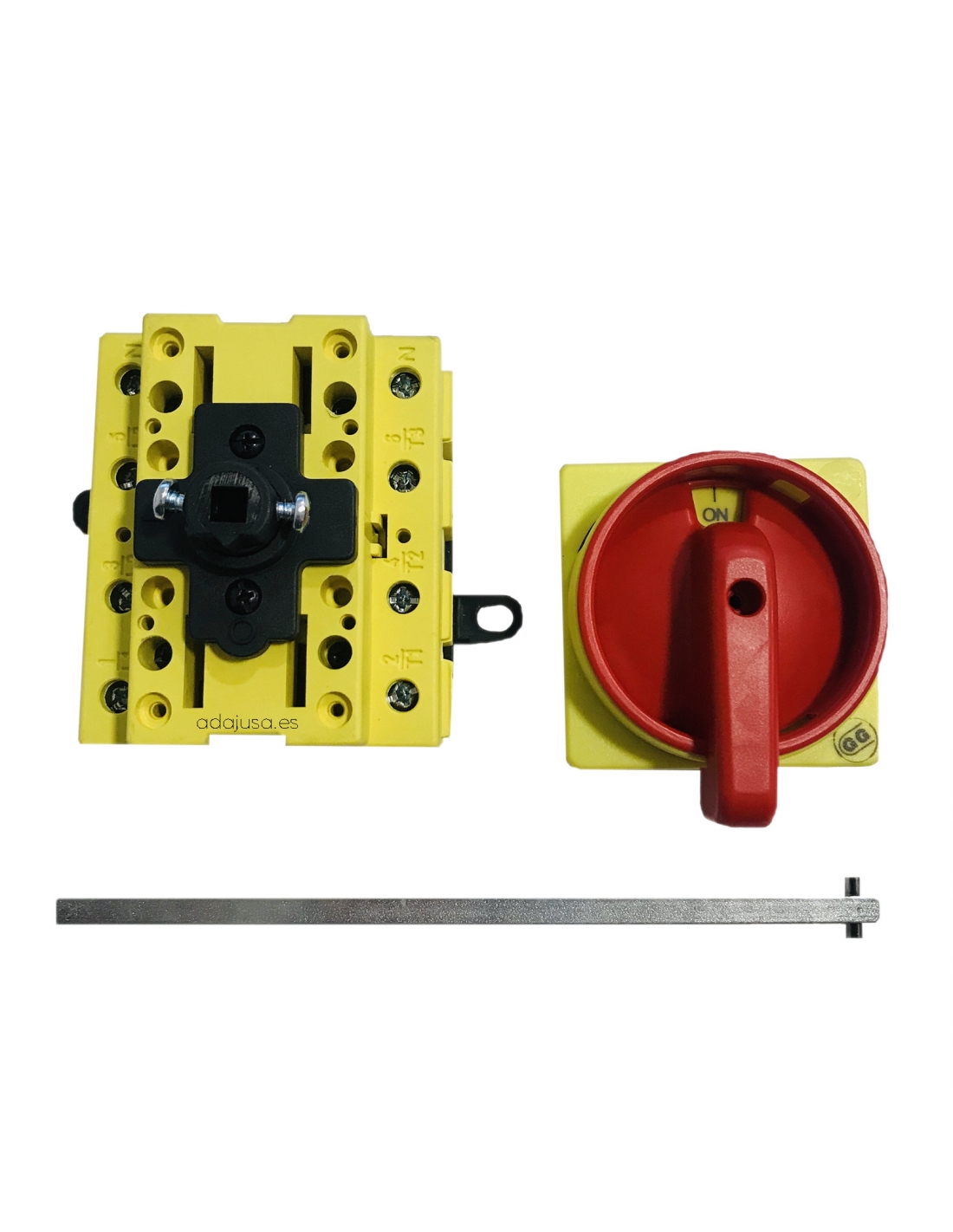

The supply includes:

  • Switch 4 poles mounting bottom cabinet.
  • Yellow-red 67x67mm faceplate, panel mount.
  • Junction axis 185mm

The supply does not include padlock.

characteristics:

  • Brand: Giovenzana.
  • Switch reference: SE163004B
  • Faceplate Reference: 012/0001
  • 185mm axis reference: 20401089
  • number of poles: 4.
  • Rated voltage Ue: 690V.
  • Nominal thermal intensity ith: 32A.
  • Nominal intensity Ie (AC21A): 16a.
  • Nominal intensity Ie (AC22A): 25a.
  • Nominal intensity Ie (AC23A):25a.
  • Nominal intensity Ie (AC3):25a.
  • Nominal interrupt capacity: 10kA.
  • Contacts: Slow opening of double interrupt.
  • Number of maneuvers / hours: 120.
  • Mechanical durability: 100,000 maneuvers.
  • Maneuver angle: 90º.
  • Built-in assembly.
  • Degree of protection:
    • Controls type 1-4-4X: IP-65.
    • Bornes: IP-20.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No. 14

Table of intensities and powers of employment:

  • Use category AC-21A: 32A.
  • Use category AC-22A: 25a.
  • Use category AC-23A:
    • Standard three-phase motors 230Vac: 25a - 7,5kW.
    • Standard three-phase motors 400Vac: 25a - 11kW.
  • Use category AC-3:
    • Standard three-phase motors 230Vac: 22A - 7,5kW.
    • Standard three-phase motors 400VAc: 22A - 11kW.

    dimensions:

    Dimensiones seccionadores SE 63-80-100 fondo armario

    assembly:

    Montaje interruptores panel serie SE

    As additional elements we can add the following references:

    • Closed auxiliary contact: GIPL004001
    • Open auxiliary contact: GIPL004002
    • Auxiliary contact fastening plate: GI1184021

    Material for professional use, perform the installation complying with the regulations in force at the place of installation.
