Double push button head green (I)- red (0) Harmony XB5 - SCHNEIDER

Name: Double push button head green (I)- red (0) Harmony XB5 - SCHNEIDER
Brand: Schneider
SKU: ZB5AA7341
Price: 12.3662 EUR
Availability: OutOfStock

€12.37 Tax included

€10.22 tax excl.

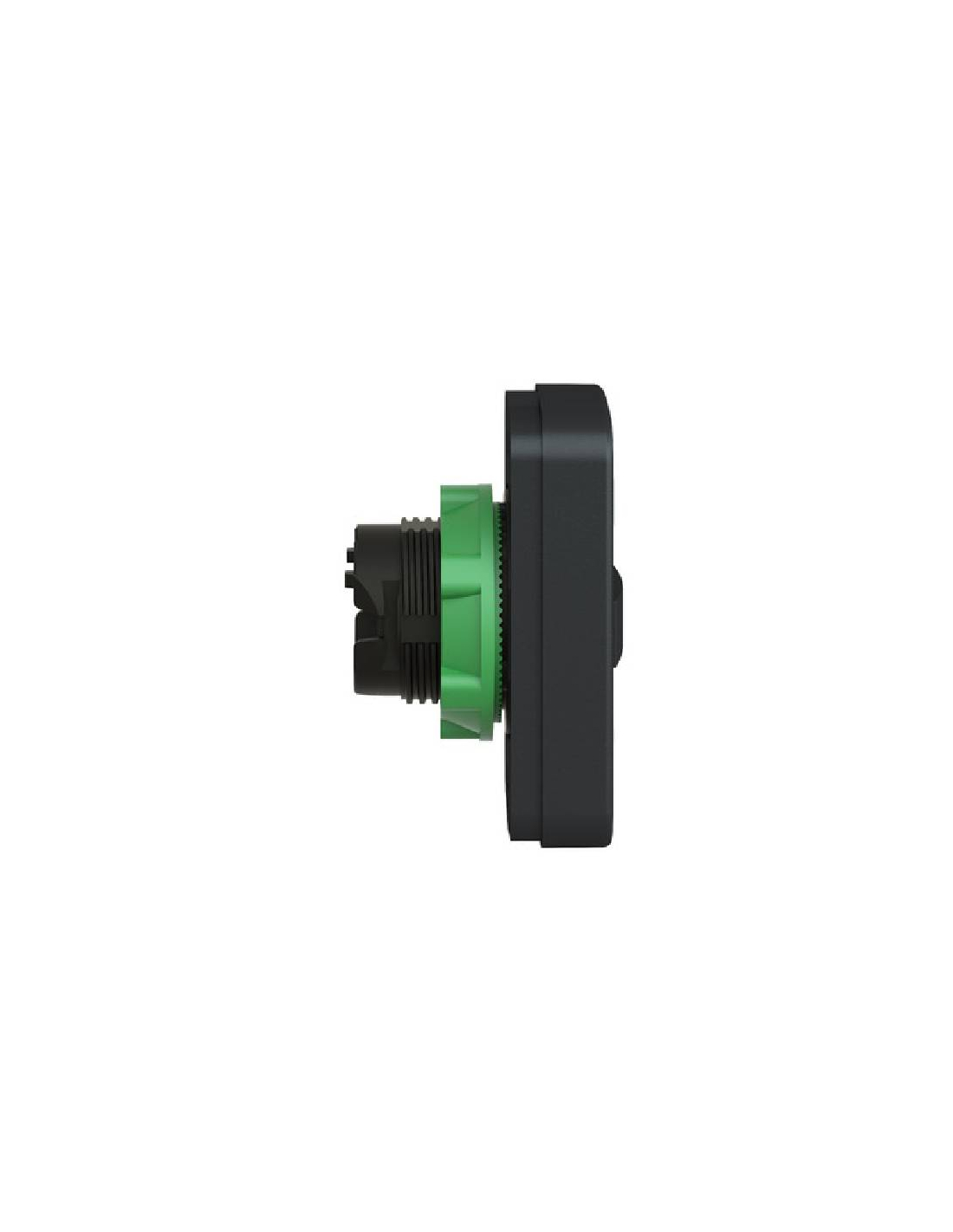

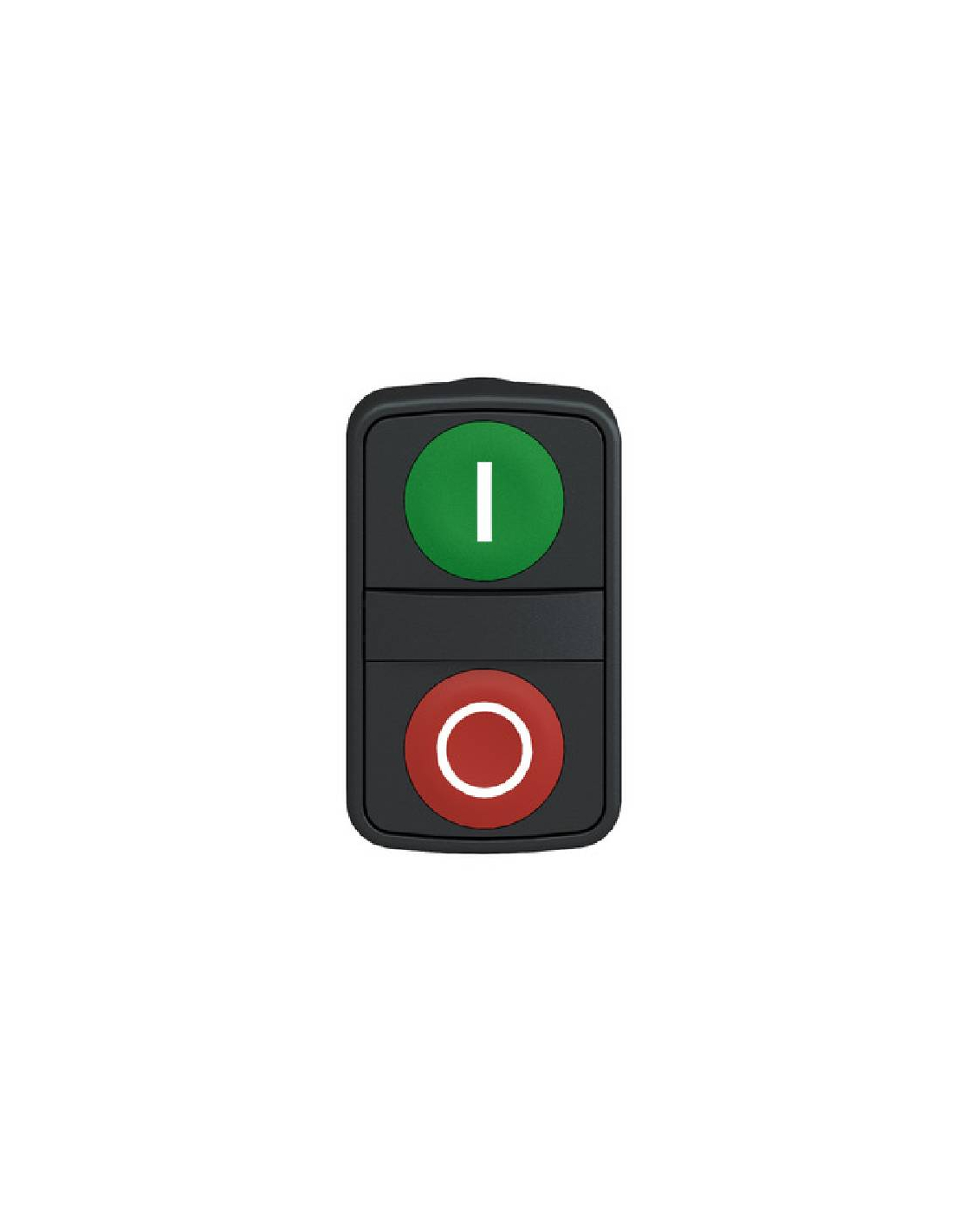

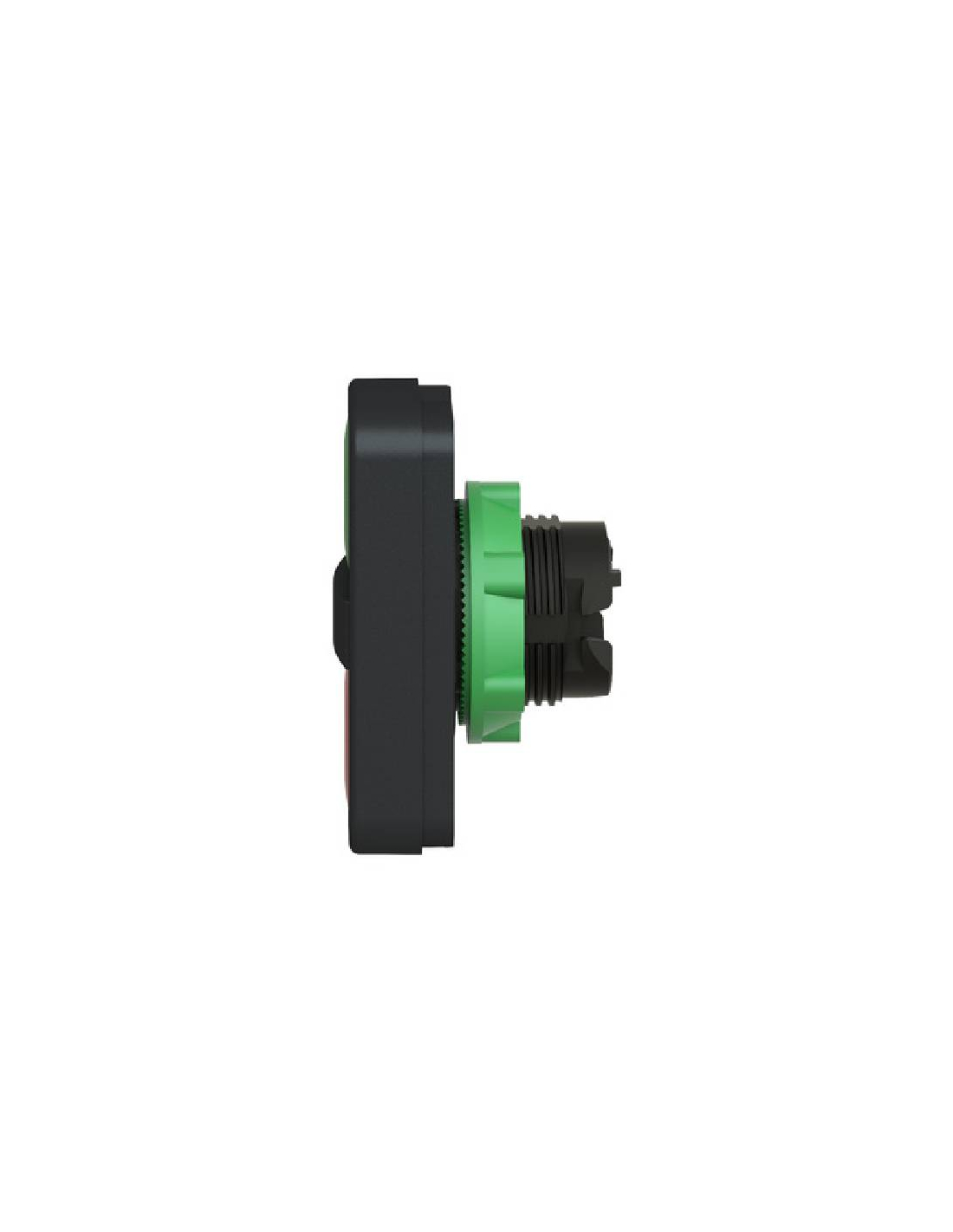

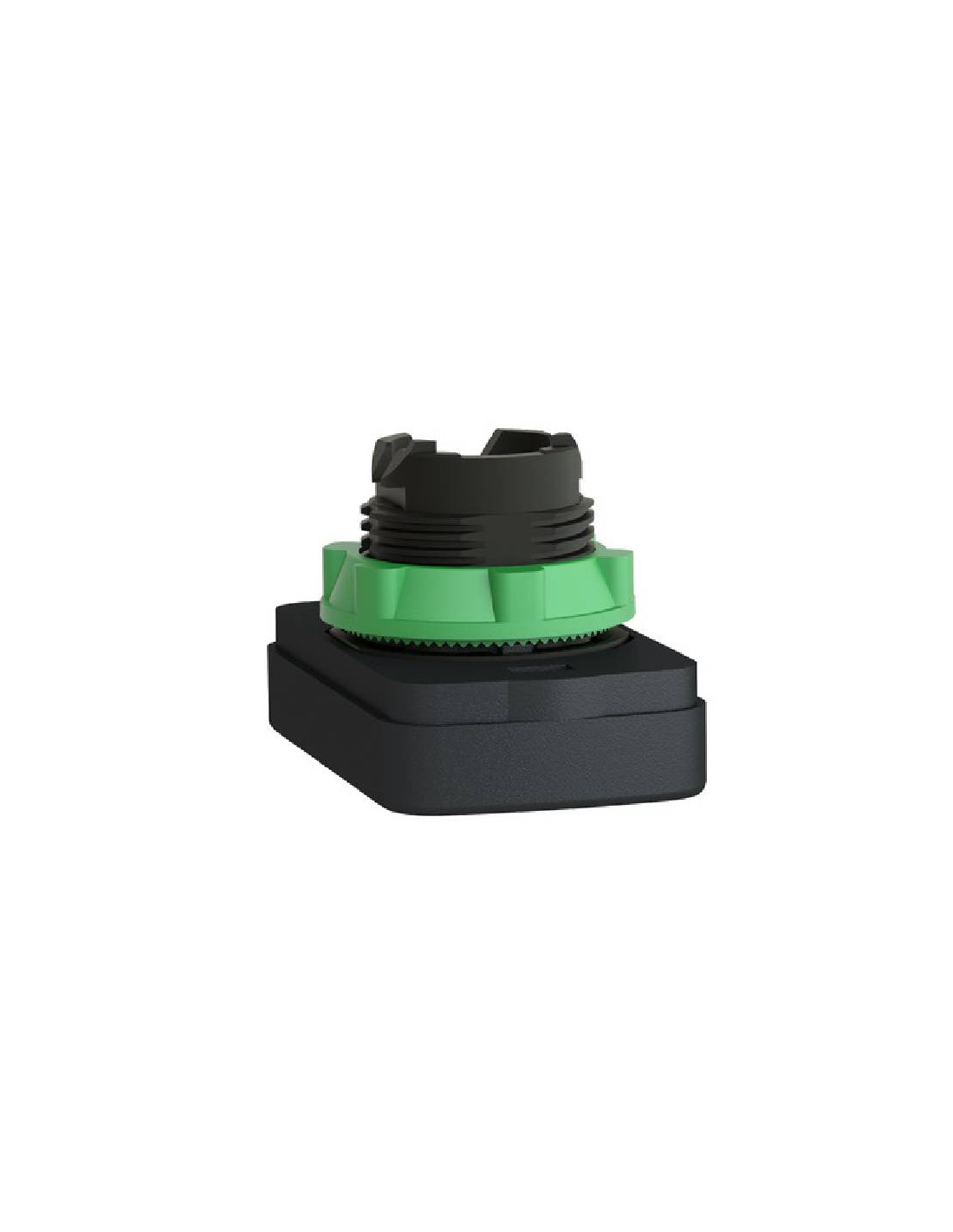

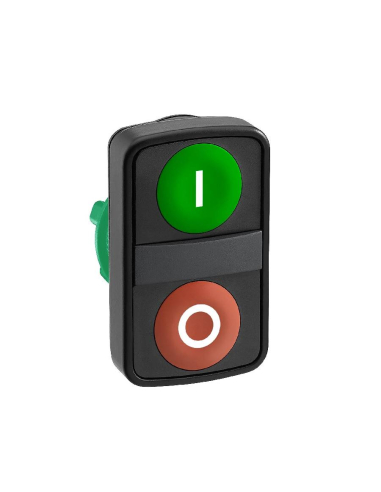

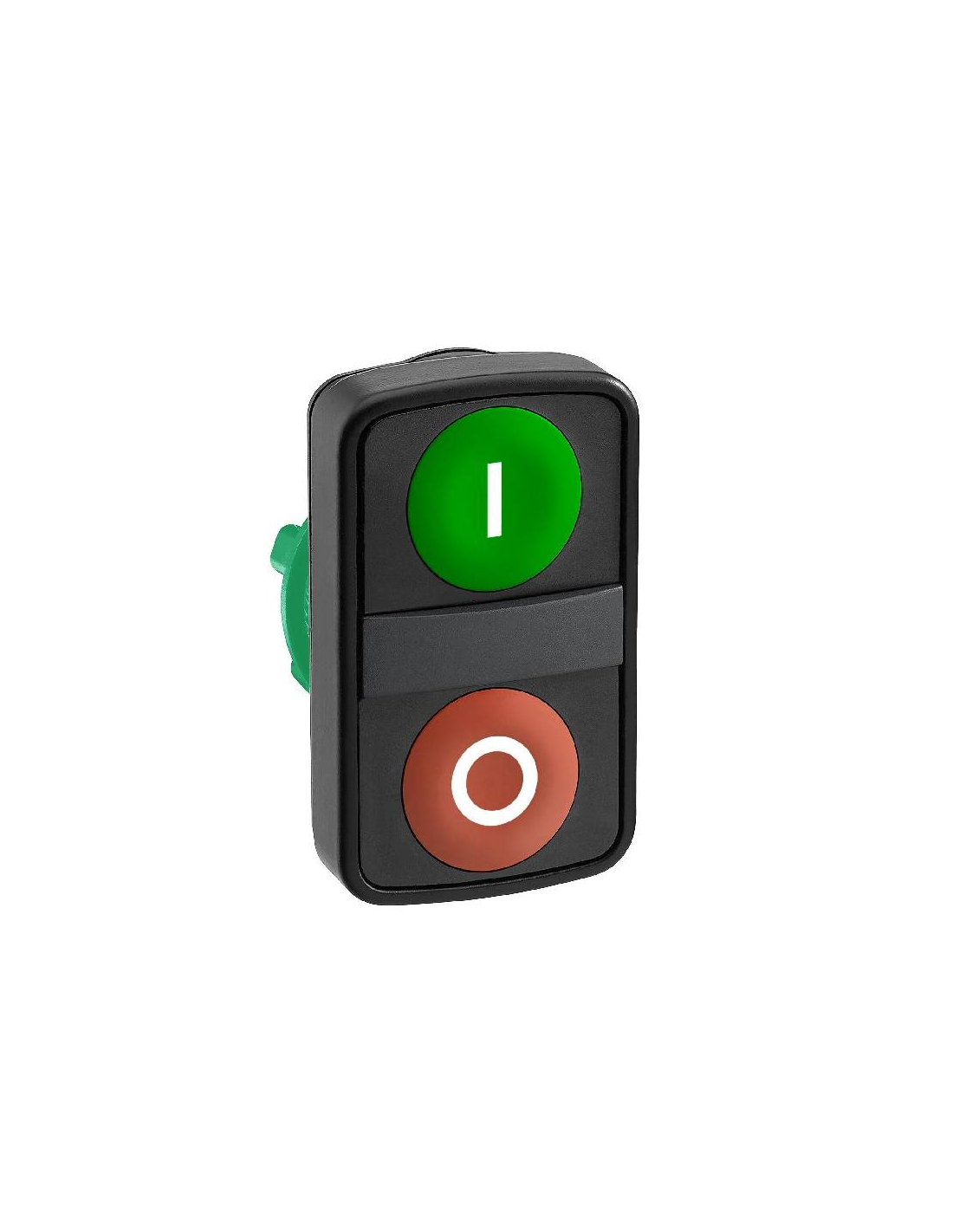

Dual run-stop push button head, flush green/red push button with I-O lettering. Manufactured with plastic bezel making it ideal for applications requiring good chemical resistance or double electrical insulation.

Part number: ZB5AA7341

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Out of stock

No queries yet, leave the first!

Privacy

Shipments

Returns

Double flush plastic pushbutton head, green/red run-stop pushbutton with I-O lettering. Based on a spring-loaded impulse/return mechanism (instantaneous action), it features an ergonomic interface for machine and process control. Easily installed in standard 22 mm diameter die-cuts.

Its design features high impact, dust, water and vibration resistance thanks to its IP66 degree of protection, making it suitable for operation in demanding environments. Its plastic bezel makes it ideal for applications requiring good chemical resistance or double electrical insulation.

No contacts are included in the scope of delivery, these must be purchased separately.

Characteristics:

Manufacturer: SCHNEIDER
Ref. No.: ZB5AA7341
HARMONY XB5 SERIES
Operator profile: 2 flush push buttons
Operator description: Green 'I' - red 'O
Operator type: Spring return
Mounting diameter: 22mm
Mechanical durability: 1000000 cycles
Operating temperature: -40...70C
Overvoltage category: Class II according to IEC 60536
IP degree of protection: IP66 according to IEC 60529
IK degree of protection: IK03 according to IEC 50102

Dimensions (mm/in)

For further information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Annex instructions for use of el

Document attached to the instructions for use of electrical equipment

Download (414.22KB)

Annex mode d'emploi elec.

Document attached to the mode of employment of electrical materials

Download (410.39KB)

Annex instructions for use elec.

Document annexed to the instructions for use electrical equipment

Download (410.3KB)

Allegato istruzioni l'uso elec

Document allegato alle instruzioni per l'use dell'apparecchiatura elettrica

Download (406.25KB)

Anhang Gebrauchsanweisung elec

Document annexed to the instructions for use of electrical equipment

Download (412.12KB)

Manual XB4-XB5

Download (452.67KB)

Ficha técnica ZB5AA7341

Download (1MB)
