Double illuminated metal push button 24V open NO and closed NC contacts - SCHNEIDER
Double illuminated metal push button 24V open NO and closed NC contacts - SCHNEIDER
Double illuminated metal push button 24V open NO and closed NC contacts - SCHNEIDER
Double illuminated metal push button 24V open NO and closed NC contacts - SCHNEIDER
Double illuminated metal push button 24V open NO and closed NC contacts - SCHNEIDER

Double illuminated metal push button 24V open NO and closed NC contacts - SCHNEIDER

€37.10 Tax included

€30.66 tax excl.

Illuminated metal start-stop pushbutton (protruding), 1 open contact and 1 closed contact (NO + NC). Metal body and chrome edge. 24Vac/dc power supply.

The supply includes the complete pushbutton with one open and one closed contact (1 NO + 1 NC). Mounting diameter 22.5 mm. Cable fixing by screw.


Reference: XB4BW73731B5




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

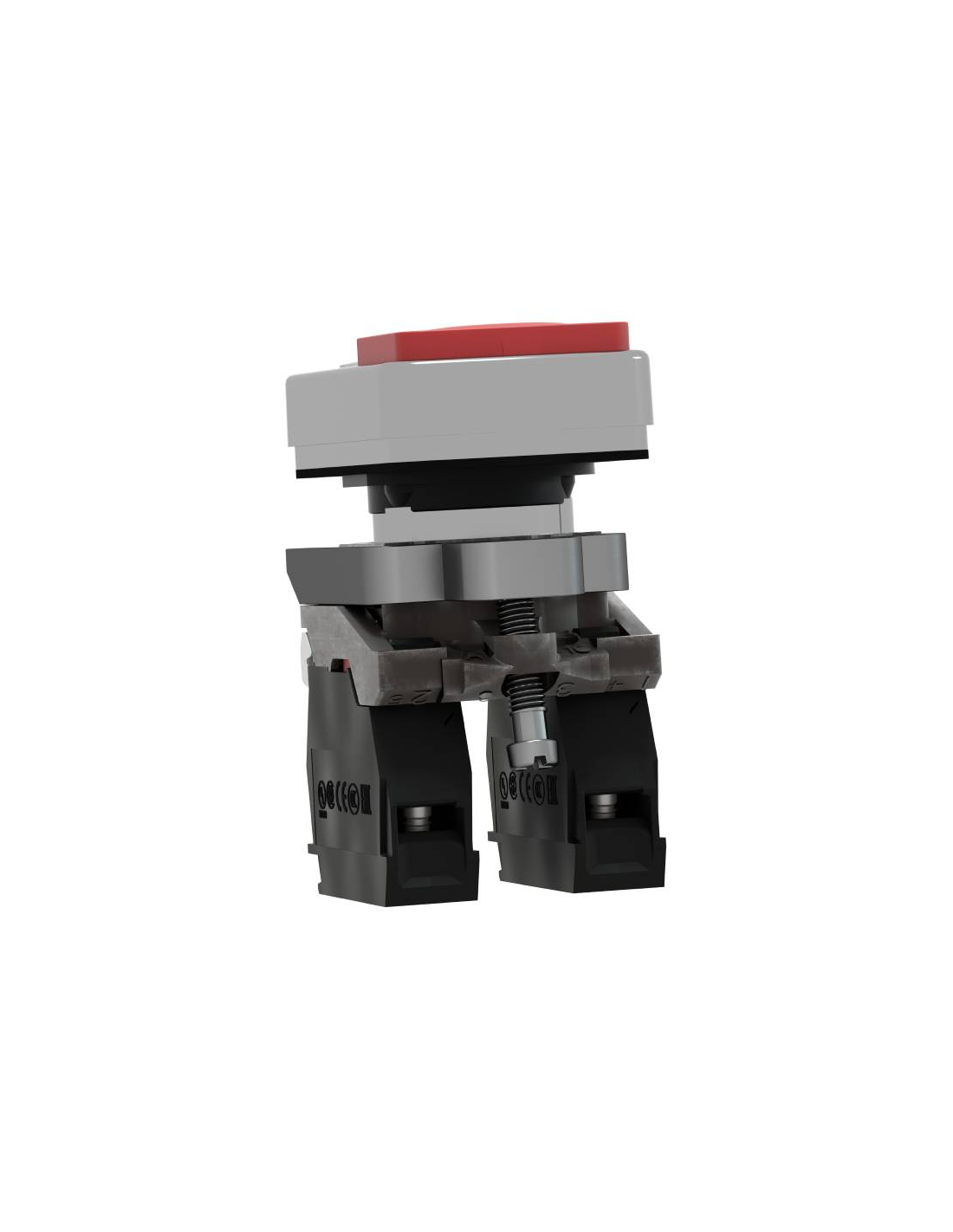

Modular, double-headed, protruding start-stop metal pushbutton with one open contact and one closed contact (NO + NC). Operation based on a spring return mechanism, it presents an ergonomic interface for the control of machines and processes. Its design is highly resistant to impacts, dust, water and vibrations thanks to its IP66 protection rating, making it ideal for operation in demanding environments. 24Vac/dc power supply.

The supply includes the complete push button with green button, red protruding button, white central pilot light, one open contact and one closed contact. It allows the possibility of adding additional contacts.



Characteristics:

  • Manufacturer: SCHNEIDER
  • Reference: XB4BW73731B5
  • HARMONY XB4 SERIES
  • Product type: Illuminated emergency stop push button
  • Operator profile: Push buttons 1 green flush - 1 red protruding - 1 central pilot light
  • Operator Description: Green 'I' - Red 'O'
  • Light source: Protected LED
  • Light source color: White
  • Operator Type: Spring Return
  • Contact : 1 NO + 1 NC
  • Contact operation: Slow break
  • Mounting diameter: 22.5mm
  • Nominal supply voltage: 24Vac/dc
  • Supply voltage limits: 19.2 - 30Vdc / 21.6 - 26.4Vac
  • Short circuit protection: 10A gG type cartridge fuse
  • Conventional thermal current: 10A A
  • Rated insulation voltage: 600V
  • Surge voltage resistance: 6kV
  • Nominal operating current: 3A at 240V, AC-15 / 6A at 120V, AC-15 / 0.1A at 600V, DC-13 / 0.27A at 250V, DC-13 / 0.55A at 125V, DC-13 / 1.2A at 600V, AC-15
  • Bezel Material: Chrome Plated Metal
  • Fixing ring material: Zamak
  • Contact material: Ag/Ni
  • Electrical durability: 1000000 cycles
  • Mechanical durability: 10000000 cycles
  • Operating temperature: -40…70C
  • IP protection class: IP66
  • IK protection class: IK06



Dimensions (mm/in):





    For further information, you can download the technical sheet by clicking on the "Attached Files" tab.

    Professional use material, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
