Oval bracket with shaft bearing 20mm...

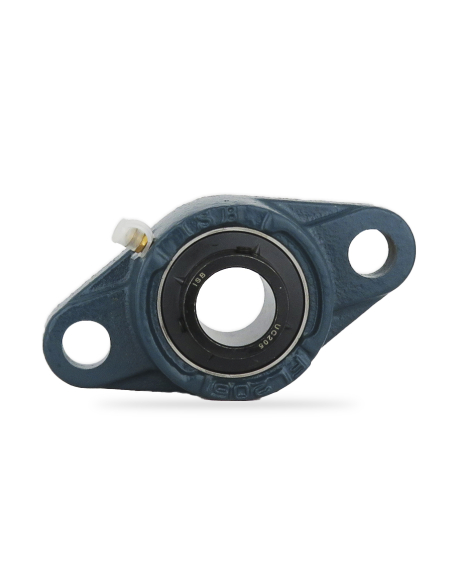

Oval bracket with shaft bearing 20mm UCFL204 - ISB

€7.66 Tax included

€6.33 tax excl.

Cast oval housing with UCFL204 inserted bearing for 20mm diameter shaft, self-aligning support bracket with ball bearing inserted with prisoners in the inner ring, plate sealing endowed with a lip in nitrile rubber. Bearing with spherical outer rings for self-alignment and to compensate for alignment defects.

Reference: UCFL204

Logotipo ISB

No queries yet, leave the first!

Oval self-aligning bracket in grey cast iron with insert already mounted, type UCFL204, for axle of 20mm.

The bearing housing body in FG20 grey cast iron protected against corrosion. High load capacity.

The inserted bearing (insert) of steel balls. These bearings are grooved. Its outer rings have a spherical surface that is free to oscillate on the support track, this oscillation allows self alignment in the housing of the support and compensate for any alignment defects and eliminate, as much as possible, unwanted efforts between the shaft and the support. The bearing to the shaft is fixed by two 120o displaced hexagonal allen screws. Easy assembly and disassembly.

The field of application of these bearing housings are industrial and general applications with normal loads, weak to medium rotation speeds.

Bearing sealing is guaranteed by joint composed of a protective steel sheet plus rubber sealing, the bearing mounts one joint on each side. This protection system prevents the exit of grease and any possible infiltration of contaminants, which is particularly indicated when there are very aggressive external agents, dust, liquids or when the machine works outdoors.

Bearings are suitable for all applications in a temperature range of -15oC to +100oC.

Supply includes (already assembled):

  • Support: FL204
  • Insert (bearing): UC204

Main dimensions:

Dimensiones soporte UCFL ISB

  • d: 20 mm
  • a: 113 mm
  • e: 90 mm
  • i: 15 mm
  • g: 11 mm
  • l: 25.5 mm
  • s: 12 mm
  • b: 60 mm
  • z: 33.3 mm
  • t: 37.5 mm
  • B: 31 mm
  • N: 12.7 mm
  • Screw metric: M10
  • Cr (N): 12160
  • C₀r (N): 6318
  • Weight: 0.41 Kg.

For other references or models
