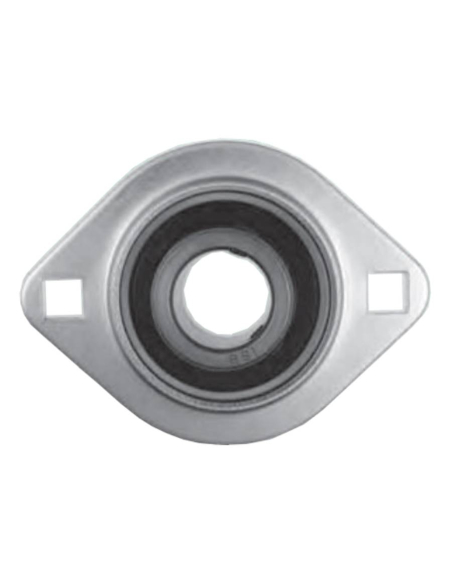

BPFL stamped sheet metal oval housing with SA208 bearing | Adajusa
BPFL stamped sheet metal oval housing with SA208 bearing | Adajusa

Oval support in stamped sheet metal with SA208-2RS bearing - 40mm shaft ISB

€18.22 Tax included

€15.06 tax excl.

Oval housing in stamped sheet metal with eccentric bearing insert, for 40 mm diameter shaft. Self-aligning housing with single-row ball bearing, single-sided collar and eccentric ring locking, made of steel with two rubber sealing caps (2RS) for sealing. Allows to compensate alignment defects


Part no.: BPFL-40 + SA208-2RS




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.


Self-aligning oval flange bracket made in two pieces of stamped steel sheet, with Ø40mm shaft insert bearing. High load capacity.


Single-row ball bearing insert, single-sided collar and eccentric collar, made of steel and sealed with two rubber sealing caps (2RS) for sealing on both sides. These bearings are free to oscillate in the housing raceway, this oscillation allows self-alignment in the housing housing housing and compensates for any misalignment and eliminates, as far as possible, unwanted stresses between the shaft and the housing. The bearing is fixed to the shaft by means of an eccentric ring with two hexagon socket head cap screws offset by 120°. Easy mounting and dismounting.

The field of application of these bearing housings are industrial and general applications with normal loads, low to medium rotational speeds.

The sealing of the bearing is ensured by a seal composed of a protective steel plate plus rubber sealing, the bearing has a seal on each side. This protection system avoids grease leakage and any possible infiltration of contaminating agents, which is particularly indicated when there are very aggressive external agents, dust, liquids or when the machine is working outdoors.

The scope of supply includes:

  • Stamped sheet metal support: BPFL-40
  • Insert (bearing): SA208-2RS



NOTE: Supplied unassembled



Dimensions:




  • d: 40 mm
  • a: 148 mm
  • e: 119 mm
  • b: 100 mm
  • m: 21 mm
  • s: 13.5 mm
  • t: 6.8 mm
  • Bolt size: M12
  • B1: 43.7 mm
  • n: 11 mm
  • Weight: 0.83 kg




Material for industrial use, must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
