€66.73 Tax included

€55.15 tax excl.

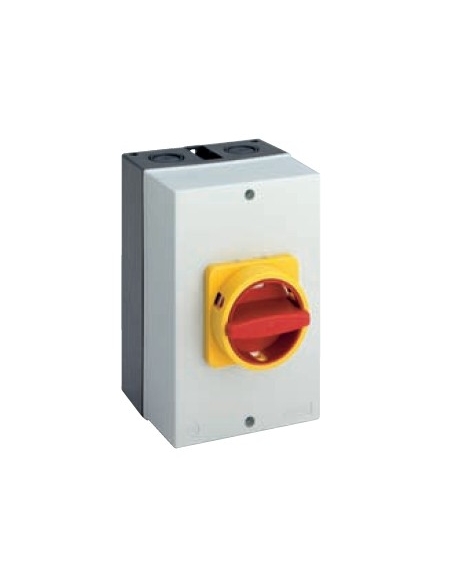

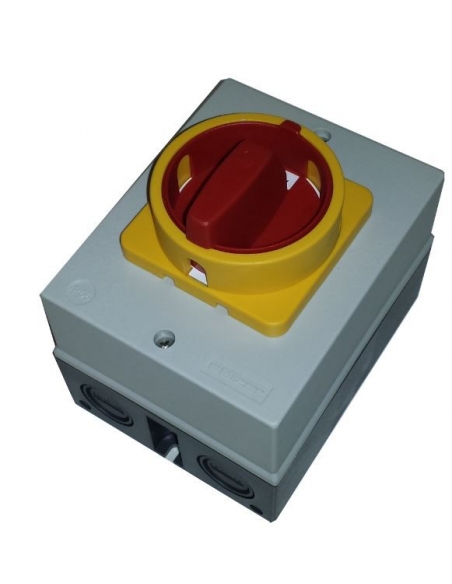

Box with three-phase switch 20A with yellow-red main control.

Three-phase main disconnector switch 20 A. mounted on polycarbonate box, with blockable yellow-red drive in position O. Size 67.

Suitable for interruption of electrical circuits as well as direct start of motors and main switch in machines.

Esquema electrico trifasico

Representative image for illustrative purposes, the item supplied will correspond to the indicated

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with rotary switch three-phase disconnector 20 A. for inductive loads (electric motors) and general control. Yellow-red drive, lockable in position O.

Features:

  • Manufacturer: Salzer.
  • Manufacturer's reference: H216-41300-700M4.
  • Number of poles: 3.
  • Rated voltage Ue: 690V.
  • Nominal current Ie (AC21A): 20A.
  • Nominal interrupt capacity: 15 kA.
  • Number of manoeuvres / hours: 50.
  • Mechanical durability: 100,000 maneuvers.
  • Standards: IEC60947; IEC60204; UL508 CSA 22.2 No14.
  • Box material: Polycarbonate.
  • Degree of protection: IP66.
  • Box dimensions: 125x100x85.
  • Number of inputs: 4.
  • Thread for inputs: M20.

Dimensiones_caja_interruptor_125x100

Material for professional use, install in compliance with the regulations in force at the installation site.
