Three-pole molded case automatic switch 3x400A Thermal regulation - LS

€873.26 Tax included

€721.70 tax excl.

Three-phase 3-pole molded case automatic switch with 400A nominal intensity, with thermal regulation trip threshold between 320 to 400A and fixed magnetic threshold. Breaking capacity of 65kA and high electrical and mechanical life.

Reference: TS400N-FMU400-400A-3P

LS LG brand logo

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase 3-pole molded case automatic switch with 400A nominal intensity, for protection of electrical installations and machinery. With adjustable thermal trip threshold and fixed magnetic threshold. High cutting power and high electrical and mechanical life.

Technical characteristics:

  • Manufacturer: LS (LG)
  • Product reference: TS400N-FMU400-400A-3P
  • Gauge (In): 400A
  • Number of poles: 3
  • Rated voltage (Ue): 230~690V
  • Breaking capacity (Icu): 65kA at 400Vac
  • Short circuit Breaking capacity (Icm): 143kA at 400Vac
  • Thermal regulation: 0.8~1 of rated intensity
  • Mounting: fixed front connection
  • Dimensions: 140x260x110mm
  • Weight: 5.4Kg
  • Regulation: IEC60947-2

For more information, download the technical sheet of the circuit breaker by clicking on the "ATTACHMENTS" tab.

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

2
Automatic switches in molded box

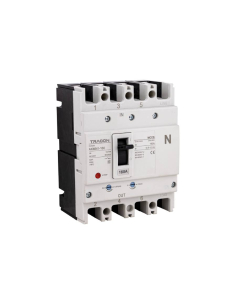

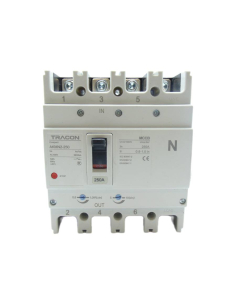

Four-pole molded case circuit breaker 4x250A Thermal and magnetic regulation - Tracon
