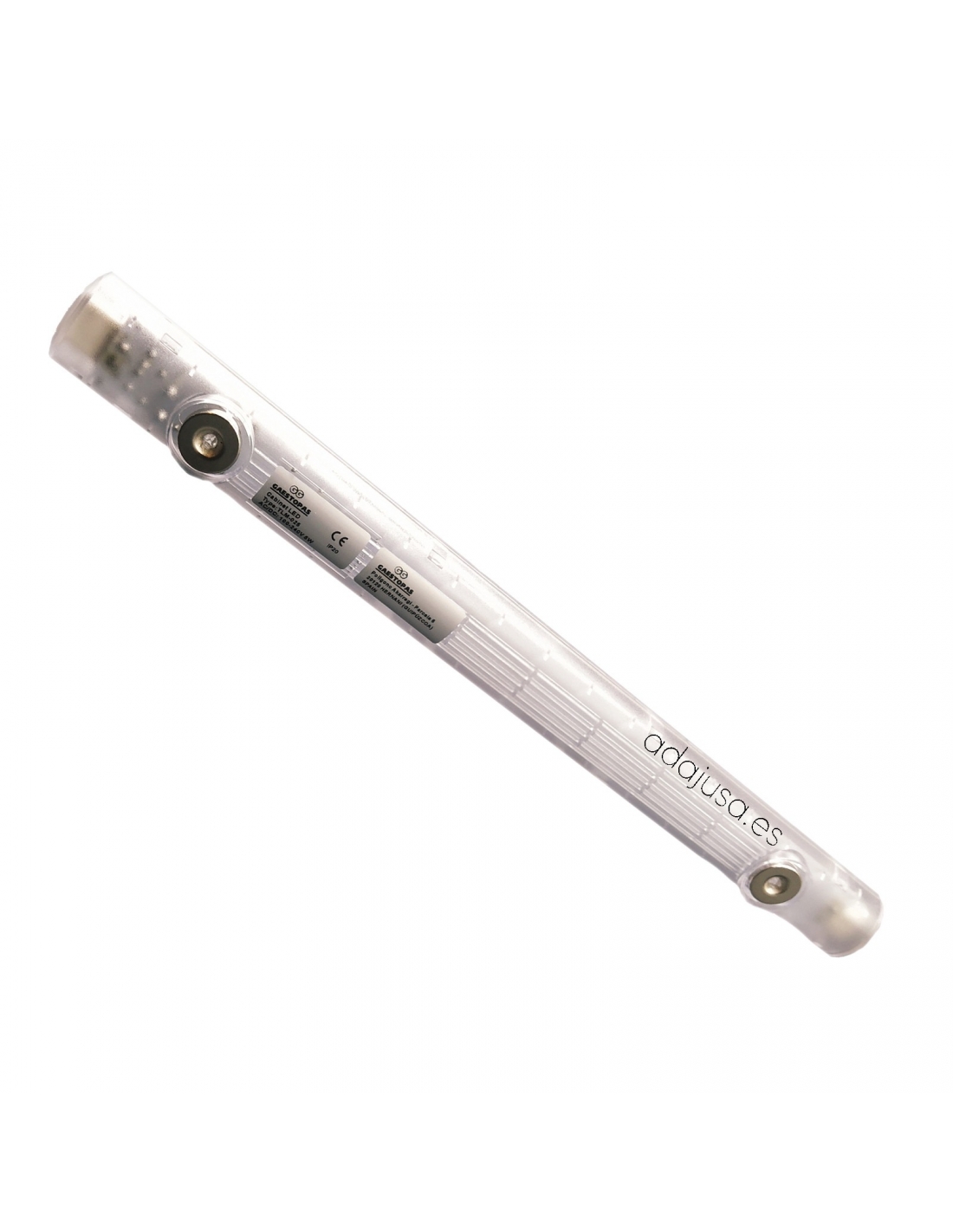

LED Magnetic Cabinet Lighting
€38.64
Tax included
€31.93 tax excl.
Luminaire with LED technology for electrical cabinets , long life without maintenance. Easy installation using magnets. It incorporates an electric switch and is prepared for chain assembly. Supply voltage 48-265 Vac/dc.
Reference: SZV25
Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

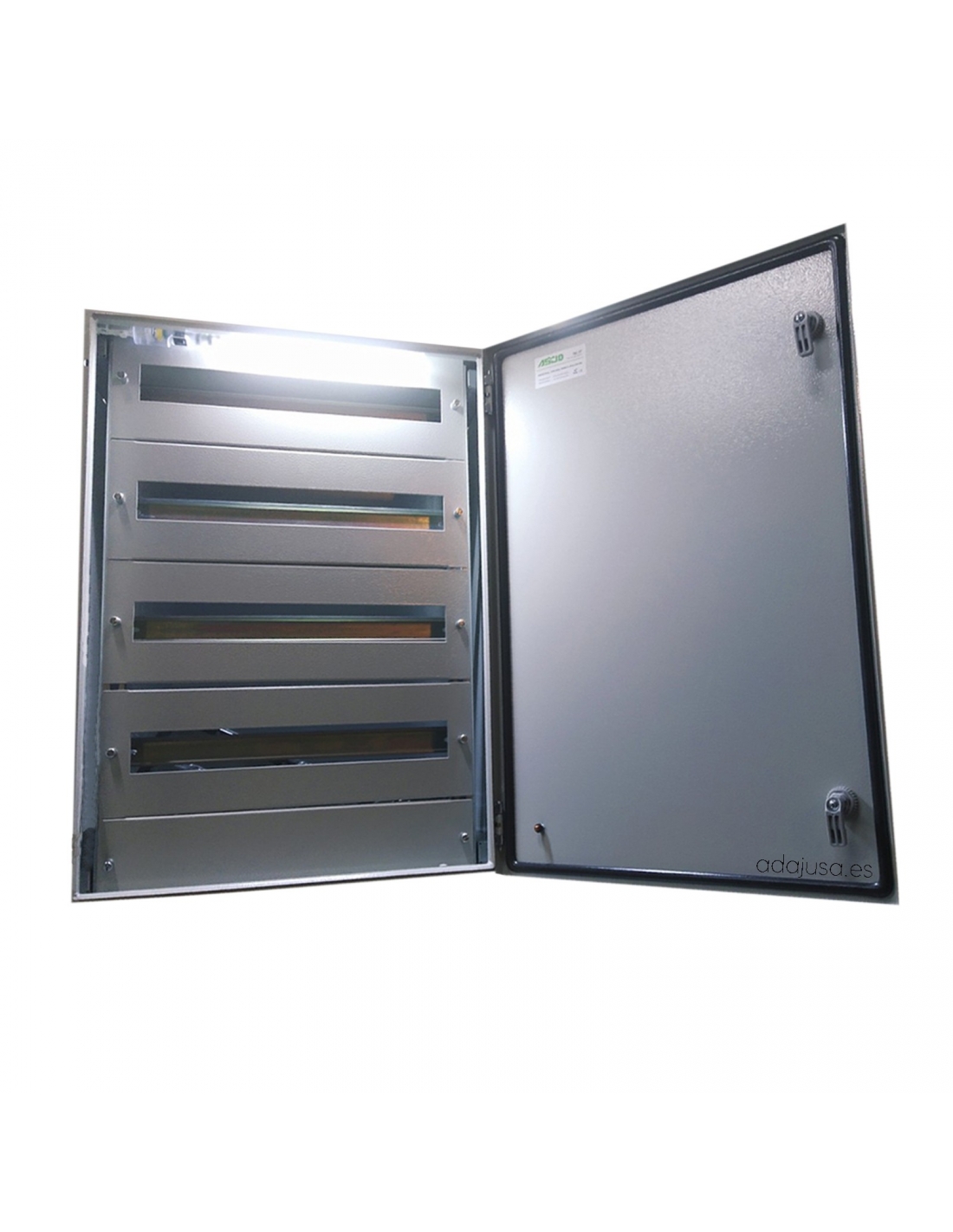

Luminaire for electrical metal cabinets and machinery, with LED technology, long-lasting and easy installation using magnets. It incorporates an electrical switch and has an output connector to be able to mount several luminaires in a chain.

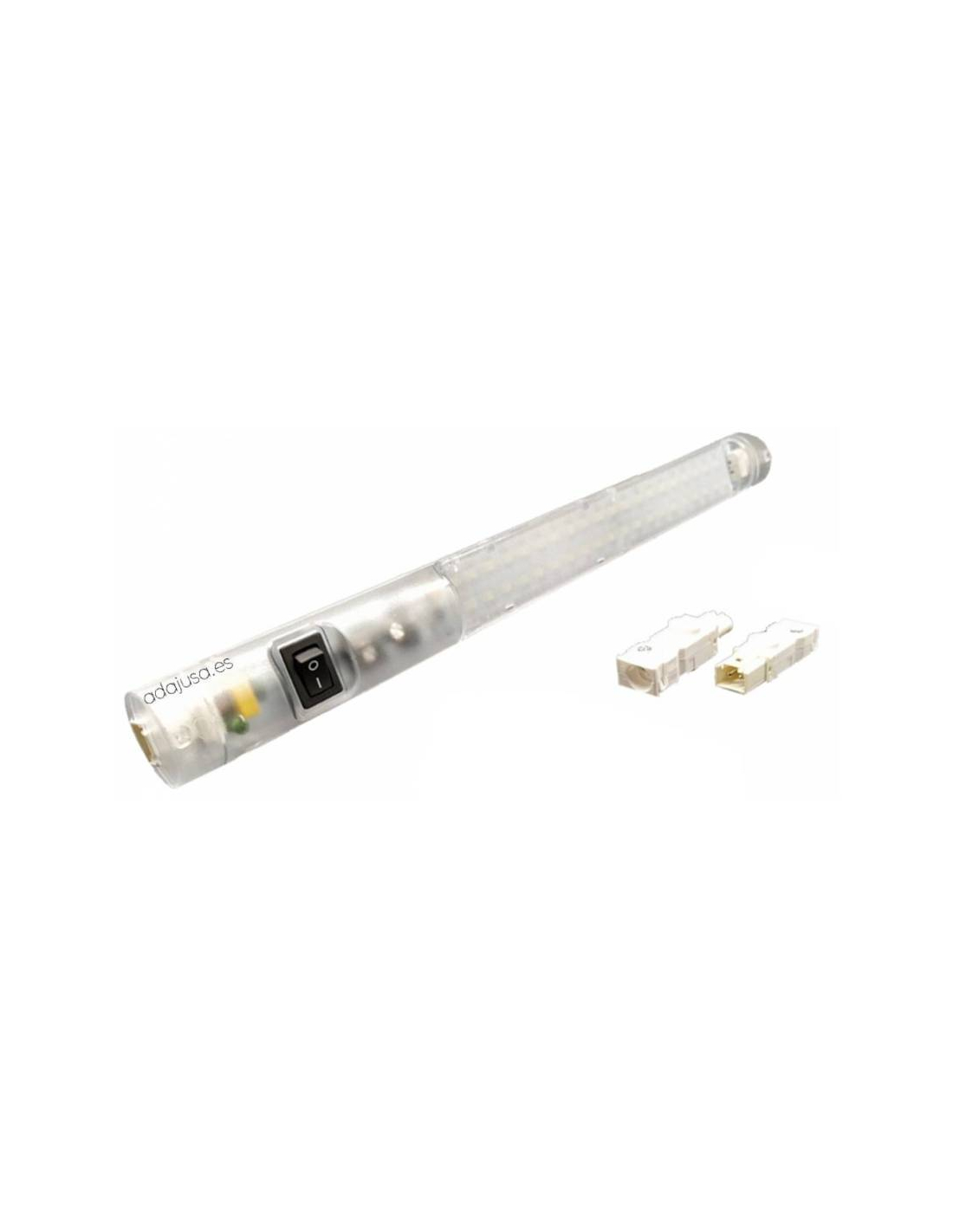

The supply includes quick power connectors, male and female. For the connection between luminaires, the maximum number of luminaires in a chain is 10 units (5 lamps can be connected in the 12Vdc versions).
Note: This luminaire is not suitable for home use.
Technical characteristics:
- Manufacturer/Supplier: OMU/Mixvil
- Reference: SZV25
- Switch: included
- Supply voltage: 48-265 Vac/dc
- Maximum power consumed: 5W
- Luminosity: 400Lm at 120º ( 1.200Lm at 360º or light intensity of 95W)
- Luminaire: LED, radiation angle 120º Type of light: daylight, Color temperature 6,000 to 7,000K
- Lifespan: 60,000ha +20ºC
- Connection: 2 quick connectors with safety clip
- Fixation: magnetic fixation
- Housing: plastic, transparent
- Weight: 0.2Kg
- Operating/storage temperature: -30 to +60ºC / -40 to +85ºC
- Operating/storage humidity: max. 90% RH (non-condensing)
- Protection grade: IP20
- Protection class: II (double insulation)
Dimensions:
Cascade assembly example:
Material for professional use, install in compliance with the regulations in force at the installation site.
