Steel fixing Clamp for 50mm diameter tube - Sicomat

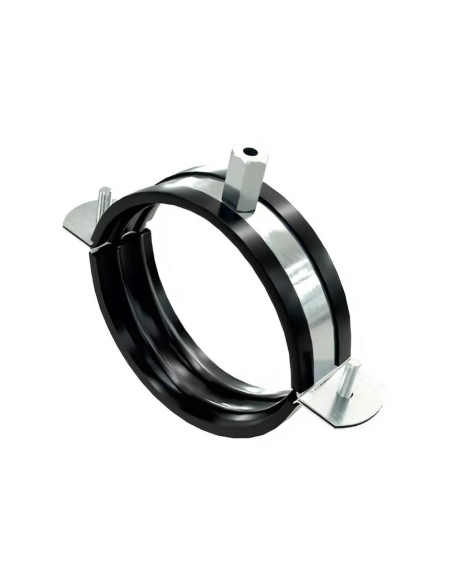

Clamp or collar for holding 50mm diameter aluminium pipes in distribution networks, made of steel with an internal rubber coating to protect the pipe surface, preventing damage. Quick and easy fixing to walls, ceilings, partitions, beams... both horizontally and vertically, depending on the desired configuration for the distribution network. The clamp has a simple screw mechanism for closing and gripping the pipe. Fixing by M8/M10 screw (not included in the supply)

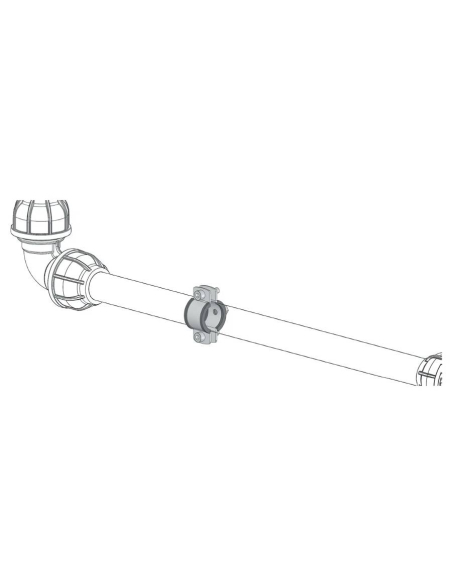

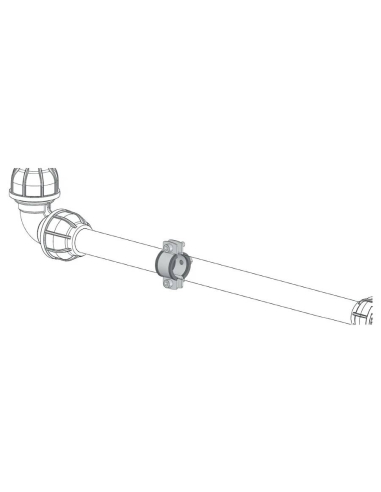

This type of element has the function of supporting the pipe. A sufficient number of clamps must be fixed to guarantee the correct fastening of the pipe, these being an essential accessory to guarantee good stability and fastening of the pipe network in the installations. It is recommended to install at least two clamps per pipe. In addition, this type of fastening allows the expansion and contraction phenomena due to the pressure of the fluid that circulates inside the conduits to occur freely, and can also create a blocking point without allowing the pipe to slide.







Characteristics:

• Manufacturer/Supplier: Sicomat/Metalwork
• Reference: R230.050.000
• Tube diameter: 50mm
• Material: Steel
• Fixing: M8/M10 screw
• Application: Compressed Air / Vacuum / Nitrogen
• Maximum pressure conditions: -0.8 to 12.5 bar
• Temperature conditions: -20ºC to +70ºC
• Weight: 115g
• All products in the SicoAir Line range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 requirements, are non-flammable and limit flame spread.

Professional use material, install in compliance with the regulations in force at the installation site.
